Collimated lights · 27 models · from $289.00

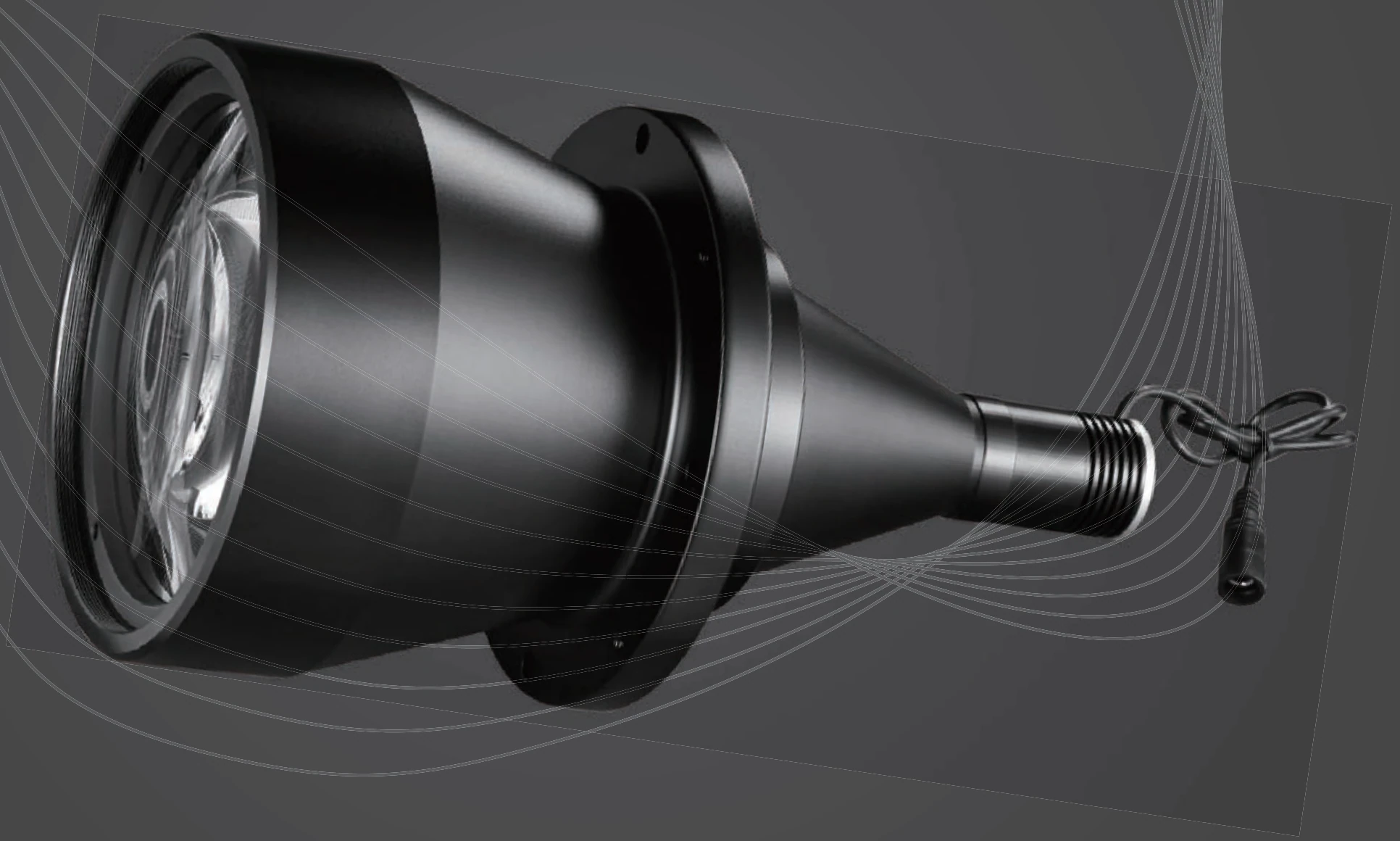

Collimated (telecentric) illumination, beam dia. 26-240 mm
The Collimated (telecentric) illumination, beam dia. 26-240 mm is a range of 27 collimated lights from LumaSpec Vision, from $289.00. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Colour | Red, Green, Blue, White |
|---|---|
| Size | Under 50 mm, 50-100 mm, 100-200 mm, 200-400 mm |
| Voltage | 3 V |
| Type | Telecentric |
Features
- Specially designed for telecentric lens imaging
- Backlight directly, or ortho illumination (spectral devices are required)
- Parallel illumination makes full use of the imaging potential of telecentric lenses and greatly improves system accuracy
- Parallel illumination can optimise the depth of field far beyond the nominal value
- Multiple wavelengths, 1W / 3W power selection, built-in brightness adjustment
- Specially designed for telecentric lens imaging; directly realises backlight or ortho illumination (spectral devices are required)
- Parallel illumination makes full use of the imaging potential of the telecentric lens and greatly improves system accuracy
- Parallel illumination optimises the depth of field of the imaging system so that it is far beyond the nominal value
Typical uses
- Telecentric backlight / coaxial (ortho) illumination for telecentric lenses
- Backlight or ortho illumination for telecentric lens imaging and measurement
- Backlighting for telecentric lens measurement
All 27 models in the Collimated (telecentric) illumination, beam dia. 26-240 mm
| Model | Size | Colours | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-VCL-26-XW-Y | $289.00 | 16 in stock | View | ||
| LS-VCL-36-XW-Y | $359.00 | 19 in stock | View | ||
| LS-VCL-42-XW-Y | $399.00 | 11 in stock | View | ||
| LS-VCL-42P-XW-Y | $399.00 | 13 in stock | View | ||
| LS-VCL-48-XW-Y | $429.00 | 12 in stock | View | ||
| LS-VCL-56-XW-Y | $479.00 | 15 in stock | View | ||
| LS-VCL-64-XW-Y | $529.00 | 14 in stock | View | ||
| LS-VCL-64P-XW-Y | $529.00 | 13 in stock | View | ||
| LS-VCL-64H-XW-Y | $529.00 | 15 in stock | View | ||
| LS-VCL-72-XW-Y | $579.00 | 16 in stock | View | ||
| LS-VCL-80-XW-Y | $629.00 | 11 in stock | View | ||
| LS-VCL-80H-XW-Y | $629.00 | 14 in stock | View | ||
| LS-VCL-80P-XW-Y | $629.00 | 15 in stock | View | ||
| LS-VCL-90-XW-Y | $699.00 | 15 in stock | View | ||
| LS-VCL-100-XW-Y | $759.00 | 13 in stock | View | ||
| LS-VCL-100P-XW-Y | $759.00 | 15 in stock | View | ||
| LS-VCL-110-XW-Y | $819.00 | 14 in stock | View | ||
| LS-VCL-120-XW-Y | $889.00 | 9 in stock | View | ||
| LS-VCL-136-XW-Y | $989.00 | 13 in stock | View | ||
| LS-VCL-150-XW-Y | $1,079.00 | 16 in stock | View | ||
| LS-VCL-170-XW-Y | $1,199.00 | 16 in stock | View | ||
| LS-VCL-190-XW-Y | $1,329.00 | 17 in stock | View | ||
| LS-VCL-216-XW-Y | $1,489.00 | 15 in stock | View | ||
| LS-VCL-240-XW-Y | $1,639.00 | 15 in stock | View | ||
| LS-VCL-240H-XW-Y | $1,639.00 | 17 in stock | View | ||
| LS-VCL-268-XW-Y | $1,819.00 | 16 in stock | View | ||
| LS-VCL-300-XW-Y | $2,019.00 | 14 in stock | View |
