Collimated lights

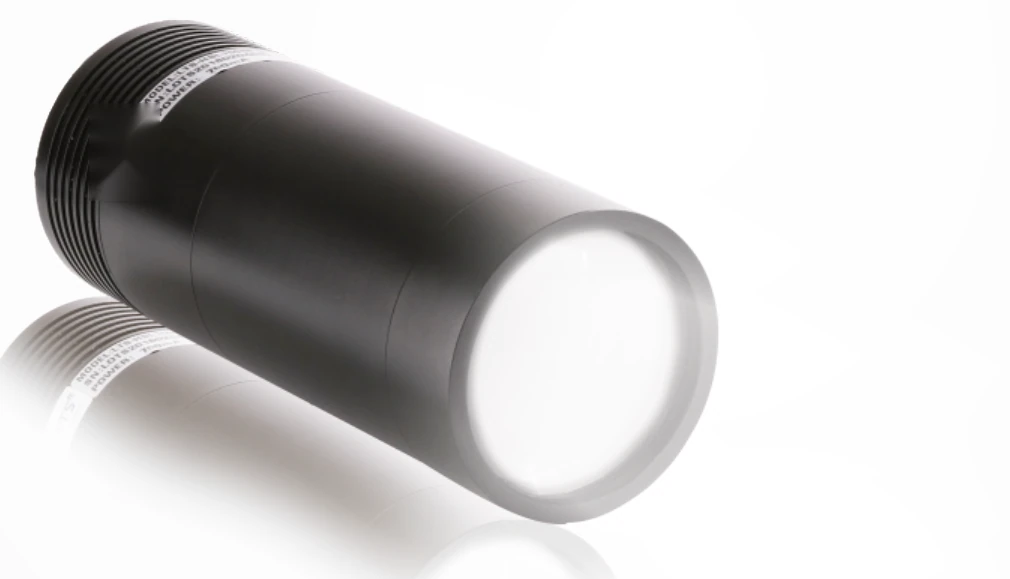

50 mm Collimated collector light (HSL) (LS-HSL15058)
Model LS-HSL15058
High-luminance collimated light with concentrated light and good parallelism, for long-distance inspection; durable structure with high heat dissipation.
Features
- High luminance, concentrated light, good parallelism
- Suits long-distance inspection
- Durable steady structure, high heat dispersion performance
Specifications
| Model | LS-HSL15058 |
|---|---|
| Adapted controller | Constant current controller |
| Light spot (LS-HSL15058-W) | WD 50: dia. 50, 7561 lx; WD 100: dia. 50, 7019 lx; WD 150: dia. 50, 6695 lx; WD 200: dia. 50, 6422 lx; WD 300: dia. 52, 5936 lx; WD 2000: dia. 170, 912 lx |
| Customizable | colour and colour temperature, cable length, installation method |
| Cable (mm) | 500 (drawings) |
| Operating temperature | 0-50 °C |
| Operating humidity | 20-85% (non-condensing) |
| Life span | 50000 h (to 50% of factory-default luminance) |
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
| Custom wavelengths | UV & IR light can be customized as required |
| Power, R/G/B (W) | 3 |
| Power, W (W) | 10 |
| Weight (g) | 416 |
| Length (mm) | 150.5 |
| Outer dia. (mm) | 58 |
| Emitting dia. (mm) | 50 |
| Mounting | 4-M3 depth 4 on dia. 32 |
| Dimension drawing | 2 |
| Common | Y |
| Voltage | 24 V |
Applications
- PCB printed character inspection
- Surface scratch inspection
- Edge contour inspection
- Mark position inspection
- Imaging example: dead pixel inspection on transparent glass (LS-HSL15058-W)
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
