Representative photo of this series

Machine vision lenses

FA lens series, 25 mm, 1", C-Mount (LS-FFL-1549)

Model LS-FFL-1549

Focal length25mm
MountC-mount
Sensor1"
Aperture1.4~16
Resolution5MP
Field of view28.7°

$319.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

FA lens series: compact design, adjustable aperture, ultra-high resolution and minimized distortion; supports 1/1.8", 1/1.7", 2/3", 1" sensors, max sensor 1.1".

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1549
Angle H (1")	28.7°
Angle H (2/3")	20.34°
Angle H (1/2")	15.34°
Angle V (1")	22.06°
Angle V (2/3")	15.78°
Angle V (1/2")	11.84°
Angle D (1")	34.94°
Angle D (2/3")	24.9°
Angle D (1/2")	18.6°

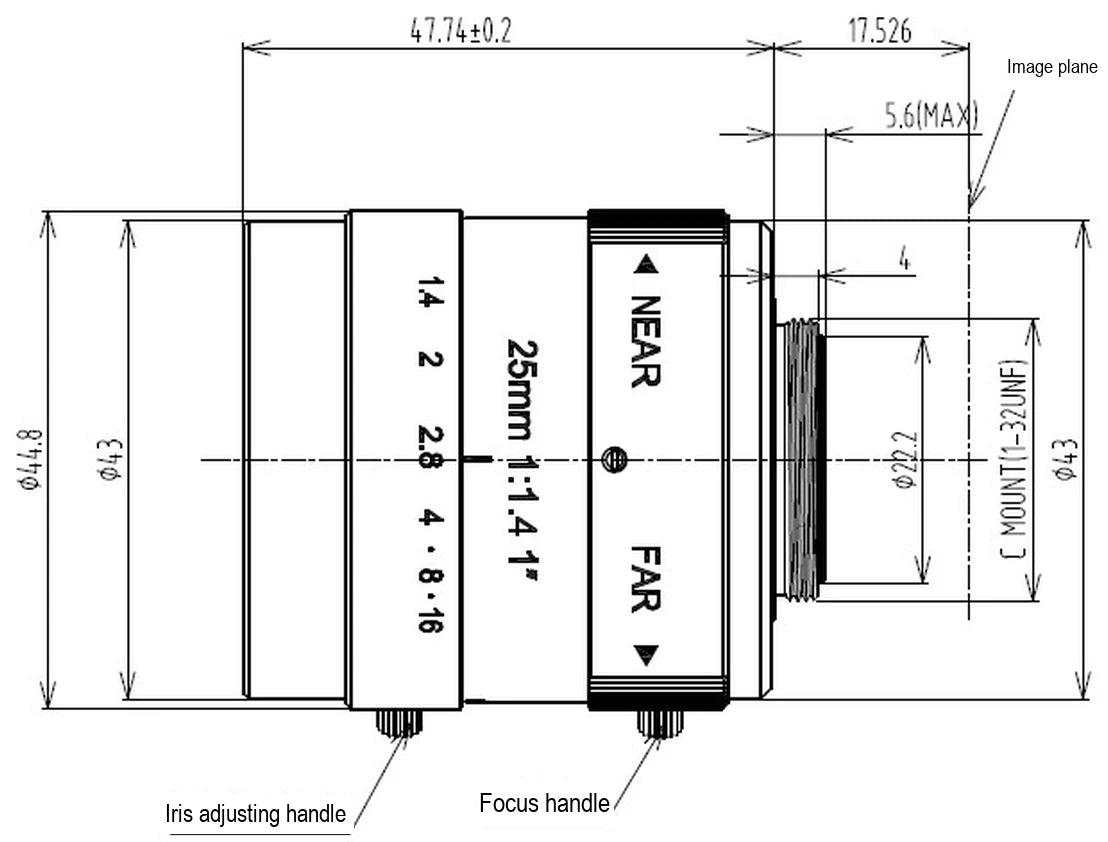

Flange back	17.526mm in air
Front/Rear Effective Dia	Front dia. 19.8mm Rear dia. 13.75mm
F.NO	1.4~16

Optics

Object Dimension at M.O.D H (1")	47.28mm
Object Dimension at M.O.D H (2/3")	32.5mm
Object Dimension at M.O.D H (1/2")	23.64mm
Object Dimension at M.O.D V (1")	35.46mm
Object Dimension at M.O.D V (2/3")	24.38mm
Object Dimension at M.O.D V (1/2")	17.72mm
Object Dimension at M.O.D D (1")	59mm
Object Dimension at M.O.D D (2/3")	40.64mm
Object Dimension at M.O.D D (1/2")	29.56mm
Distortion(TV) (1")	0.1%
Distortion(TV) (2/3")	0.1%
Distortion(TV) (1/2")	0.1%
Focus distance(min)	0.1M
Back focus	12.97
Filter screw size	M40.5xP0.5
Focal length	25mm
Field of view H	28.7°
Field of view V	22.06°
Field of view D	34.94°
Distortion	<0.2%
Aperture	1.4~16

Sensor and imaging

Sensor	1"
Resolution	5MP
Sensor format	1"

Environment and compliance

Temperature range	-10~+50°C
Storage temperature range	-20~+60°C

Mechanical

Mount	C-Mount
Max Diameter(RATIO)	F=1:1.4~16
Picture size	1" / 2/3" / 1/2"
Shipping weight	0.38 kg
