FA lens series (VFA1)
  • FA lens series (VFA1)

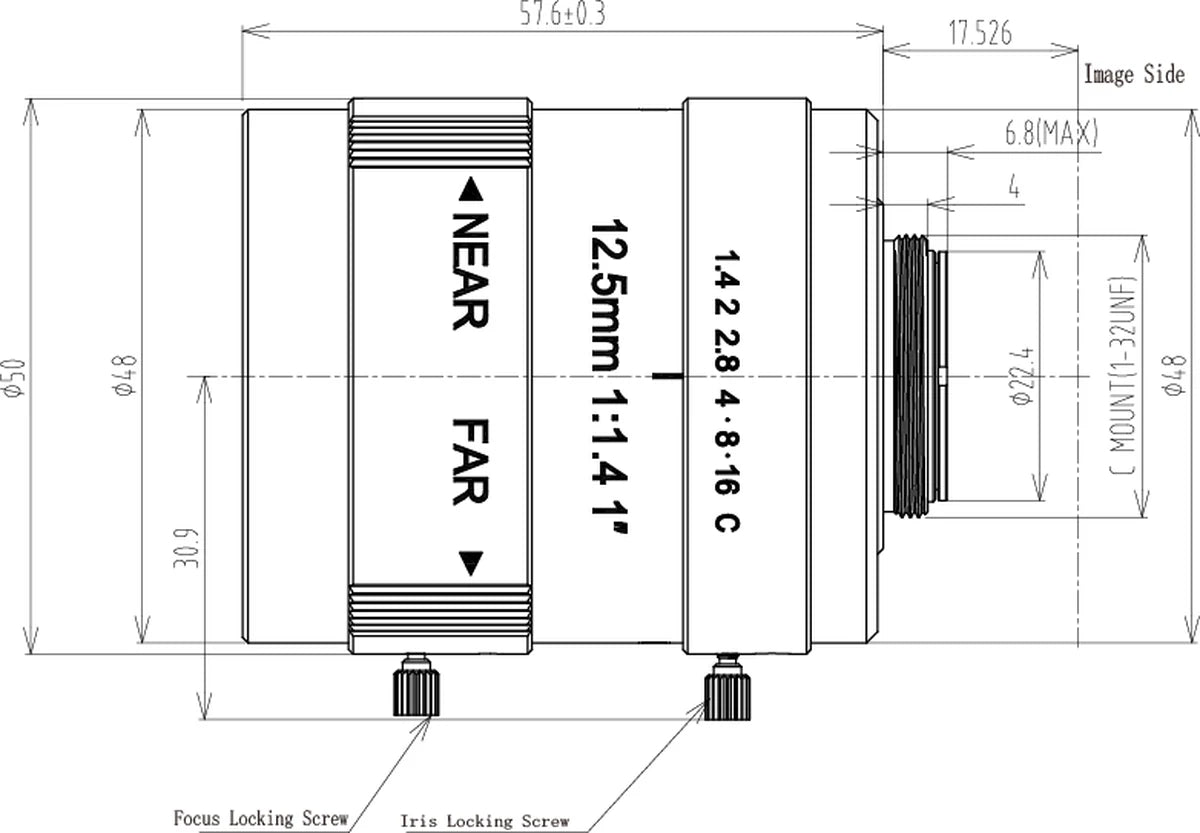

  • LS-FFL-1547 dimensions (mm)

Representative photo of this series

Machine vision lenses

FA lens series, 12.5 mm, 1", C-Mount (LS-FFL-1547)

Model LS-FFL-1547

  • Focal length12.5mm
  • MountC-mount
  • Sensor1"
  • Aperture1.4~16
  • Resolution5MP
  • Field of view54.5°
$299.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

FA lens series, 12.5 mm, 1", C-Mount (LS-FFL-1547)LS-FFL-1547

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

FA lens series: compact design, adjustable aperture, ultra-high resolution and minimized distortion; supports 1/1.8", 1/1.7", 2/3", 1" sensors, max sensor 1.1".

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1547
Angle H (1")54.5°
Angle H (2/3")38.5°
Angle H (1/2")28.8°
Angle V (1")42°
Angle V (2/3")29.1°
Angle V (1/2")21.7°
Angle D (1")66.3°
Angle D (2/3")47.5°
Angle D (1/2")35.7°
Flange back17.526mm in air
Front/Rear Effective DiaFront dia. 35mm Rear dia. 18.8mm
F.NO1.4~16

Optics

Object Dimension at M.O.D H (1")126.4mm
Object Dimension at M.O.D H (2/3")84.9mm
Object Dimension at M.O.D H (1/2")62.3mm
Object Dimension at M.O.D V (1")93mm
Object Dimension at M.O.D V (2/3")63mm
Object Dimension at M.O.D V (1/2")46.4mm
Object Dimension at M.O.D D (1")161.5mm
Object Dimension at M.O.D D (2/3")107.4mm
Object Dimension at M.O.D D (1/2")80mm
Distortion(TV) (1")1.8%
Distortion(TV) (2/3")1%
Distortion(TV) (1/2")0.4%
Focus distance(min)0.1M
Back focus15.7mm in air
Filter screw sizeM46x0.75
Focal length12.5mm
Field of view H54.5°
Field of view V42°
Field of view D66.3°
Distortion<1.8%
Aperture1.4~16

Sensor and imaging

Sensor1"
Resolution5MP
Sensor format1"

Environment and compliance

Temperature range-10~+50°C
Storage temperature range-20~+60°C

Mechanical

MountC-Mount
Max Diameter(RATIO)F=1:1.4~16
Picture size1" / 2/3" / 1/2"
Shipping weight0.38 kg
