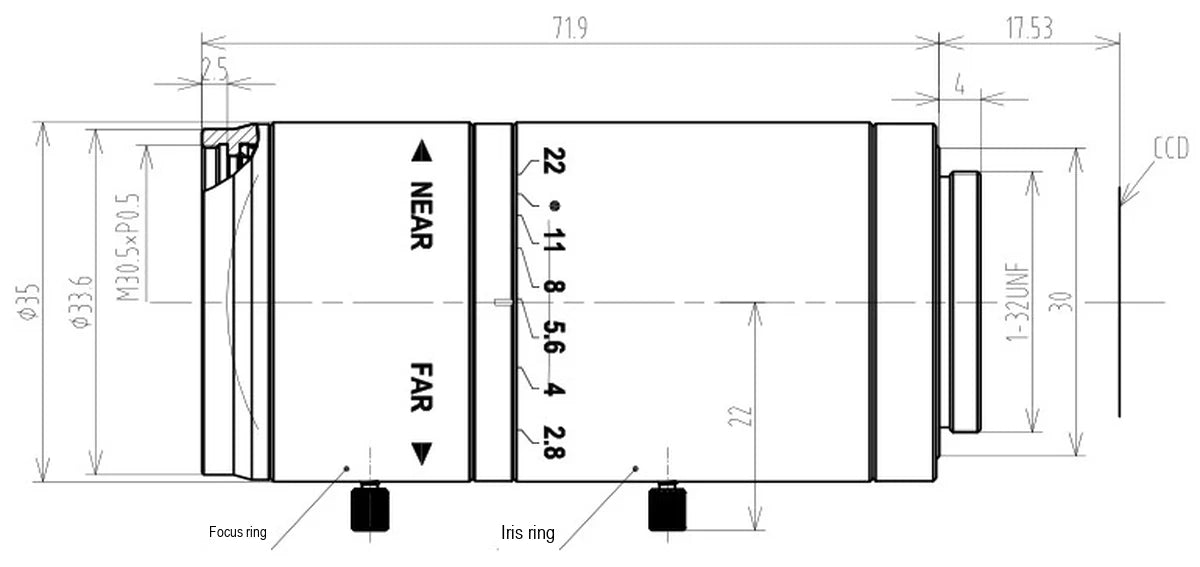

  • LS-FFL-1575 dimensions (mm)

Representative photo of this series

Machine vision lenses

FA lens series, 75 mm, 1/1.8", C-Mount (LS-FFL-1575)

Model LS-FFL-1575

  • Focal length75mm
  • MountC-mount
  • Sensor1/3"
  • Aperture2.8~22
  • Resolution5MP
  • Field of view5.4°
$309.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

FA lens series, 75 mm, 1/1.8", C-Mount (LS-FFL-1575)LS-FFL-1575

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

FA lens series: compact design, adjustable aperture, ultra-high resolution and minimized distortion; supports 1/1.8", 1/1.7", 2/3", 1" sensors, max sensor 1.1".

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1575
Angle | H | 5.4 | 4.43.66
Angle | V | 4.04 | 3.32.75
Angle | D | 5.84 | 5.44.6
Flange back17.526mm in air
Front/Rear Effective DiaFront dia. 24mm Rear dia. 14.5mm
F.NO2.8~22

Optics

Image Size | 1/1.8" (7.2*5.3mm) | 1/2.5" (5.76*4.32mm)1/3" (4.8*3.6mm)
Object Dimension at M.O.D | H | 40.4 | 32.3426.96
Object Dimension at M.O.D | V | 29.8 | 24.2620.22
Object Dimension at M.O.D | D | 50.2 | 40.433.7
Focus distance(min)500mm
Back focus42.2-55.5mm in air
Focal length75mm
Field of view H5.4°
Field of view V4.04°
Field of view D5.84°
Distortion<0.05%
Aperture2.8~22

Sensor and imaging

Sensor1/1.8"
Resolution5MP
Sensor format1/1.8"

Environment and compliance

Temperature range-10~+50°C
Storage temperature range-20~+60°C

Mechanical

MountC-Mount
Shipping weight0.38 kg
