FA lens series (LS-FFL-S151)
  • FA lens series (LS-FFL-S151)

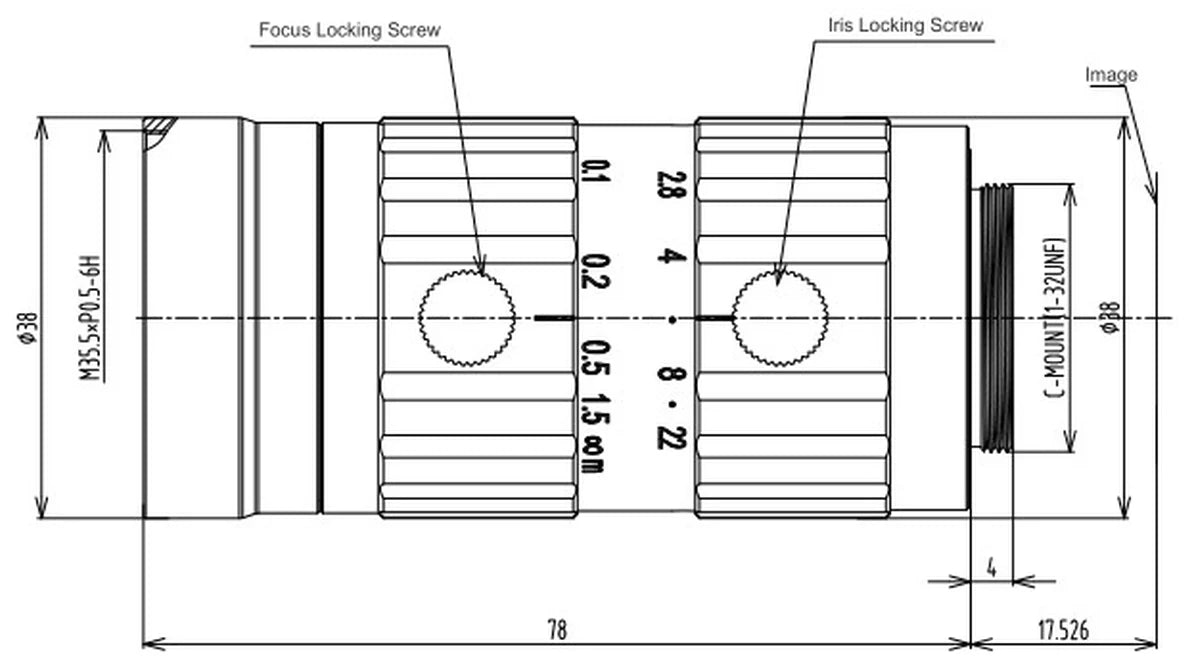

  • LS-FFL-1556 dimensions (mm)

Representative photo of this series

Machine vision lenses

FA lens series, 16 mm, 1.1", C-Mount (LS-FFL-1556)

Model LS-FFL-1556

  • Focal lengthf=16mm
  • MountC-mount
  • Sensor1.1"
  • Sensor format1.1"
$319.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

FA lens series, 16 mm, 1.1", C-Mount (LS-FFL-1556)LS-FFL-1556

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

FA lens series: compact design, adjustable aperture, ultra-high resolution and minimized distortion; supports 1/1.8", 1/1.7", 2/3", 1" sensors, max sensor 1.1".

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1556
Angle H (1.1")46.3°
Angle H (1")43.6°
Angle H (2/3")30.8°
Angle V (1.1")36°
Angle V (1")33.4°
Angle V (2/3")23.3°
Angle D (1.1")55.4°
Angle D (1")53.1°
Angle D (2/3")37.9°
Flange back17.526mm in air
Front/Rear Effective Diadia. 26.7mm/dia. 19.2mm
Detector1.1"

Optics

Focal lengthf=16mm
Object Dimension at M.O.D H (1.1")186mm
Object Dimension at M.O.D H (1")168.4mm
Object Dimension at M.O.D H (2/3")115.3mm
Object Dimension at M.O.D V (1.1")139.6mm
Object Dimension at M.O.D V (1")125.9mm
Object Dimension at M.O.D V (2/3")86.3mm
Object Dimension at M.O.D D (1.1")232.1mm
Object Dimension at M.O.D D (1")210.9mm
Object Dimension at M.O.D D (2/3")144.5mm
Focus distance(min)0.1M
Back focus22.4mm in air
Filter screw sizeM35.5xP0.5

Sensor and imaging

Sensor format1.1"

Environment and compliance

Temperature range-10~+50°C
Storage temperature range-20~+60°C

Mechanical

MountC-Mount
Max Diameter(RATIO)F=1:2.8~22
Picture size1.1" / 1" / 2/3"
Shipping weight0.38 kg
