FA lens series (VFA1)
  • FA lens series (VFA1)

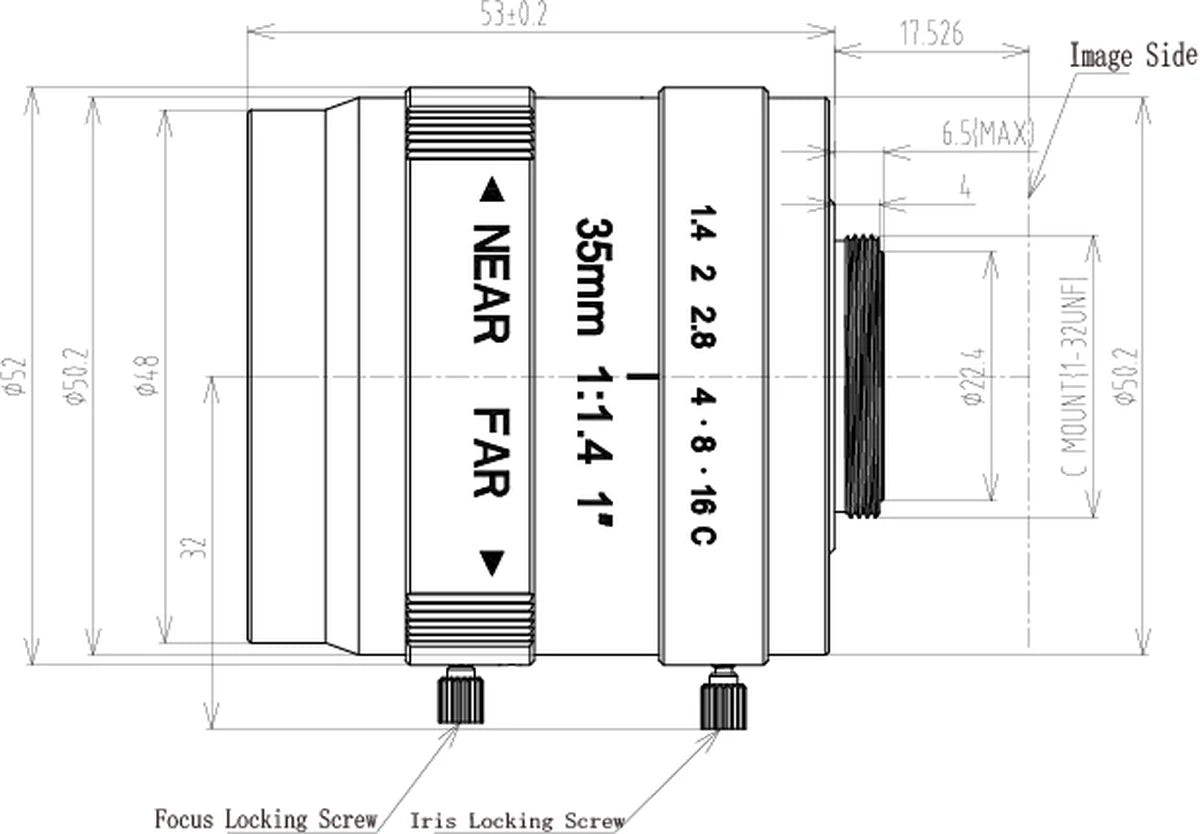

  • LS-VFA1-110-5M35 dimensions (mm)

Representative photo of this series

Machine vision lenses

FA lens series, 35 mm, 1", C-Mount (LS-FFL-1550)

Model LS-FFL-1550

  • Focal length35mm
  • MountC-mount
  • Sensor1"
  • Aperture1.4~16
  • Resolution5MP
  • Field of view19.28°
$339.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

FA lens series, 35 mm, 1", C-Mount (LS-FFL-1550)LS-FFL-1550

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

FA lens series: compact design, adjustable aperture, ultra-high resolution and minimized distortion; supports 1/1.8", 1/1.7", 2/3", 1" sensors, max sensor 1.1".

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1550
Angle H (1")19.28°
Angle H (2/3")13.14°
Angle H (1/2")9.58°
Angle V (1")14.32°
Angle V (2/3")9.8°
Angle V (1/2")7.16°
Angle D (1")23.92°
Angle D (2/3")16.4°
Angle D (1/2")11.96°
Flange back17.526mm in air
Front/Rear Effective DiaFront dia. 27mm Rear dia. 17mm
F.NO1.4~16

Optics

Object Dimension at M.O.D H (1")53.2mm
Object Dimension at M.O.D H (2/3")36.38mm
Object Dimension at M.O.D H (1/2")26.4mm
Object Dimension at M.O.D V (1")39.72mm
Object Dimension at M.O.D V (2/3")27.22mm
Object Dimension at M.O.D V (1/2")19.78mm
Object Dimension at M.O.D D (1")66.96mm
Object Dimension at M.O.D D (2/3")45.6mm
Object Dimension at M.O.D D (1/2")33.04mm
Distortion(TV) (1")0.1%
Distortion(TV) (2/3")0.1%
Distortion(TV) (1/2")0.1%
Focus distance(min)0.15M
Back focus11.2mm in air
Filter screw sizeM46x0.75
Focal length35mm
Field of view H19.28°
Field of view V14.32°
Field of view D23.92°
Distortion<0.1%
Aperture1.4~16

Sensor and imaging

Sensor1"
Resolution5MP
Sensor format1"

Environment and compliance

Temperature range-10~+50°C
Storage temperature range-20~+60°C

Mechanical

MountC-Mount
Max Diameter(RATIO)F=1:1.4~16
Picture size1" / 2/3" / 1/2"
Shipping weight0.38 kg

Other models in the FA lens series (LS-FFL-S151) series

See all 41 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-1547 12.5 mm, 1", C-Mount $299.00 3 in stock View
LS-FFL-1575 75 mm, 1/1.8", C-Mount $309.00 4 in stock View
LS-FFL-1561 8 mm, 1/1.7", C-Mount $309.00 5 in stock View
LS-FFL-1562 12 mm, 1/1.7", C-Mount $309.00 3 in stock View
LS-FFL-1582 8 mm, 2/3", C-Mount $309.00 5 in stock View
LS-FFL-1583 12 mm, 2/3", C-Mount $309.00 4 in stock View
LS-FFL-1563 16 mm, 1/1.7", C-Mount $319.00 3 in stock View
LS-FFL-1584 16 mm, 2/3", C-Mount $319.00 4 in stock View
LS-FFL-1549 25 mm, 1", C-Mount $319.00 5 in stock View
LS-FFL-1556 16 mm, 1.1", C-Mount $319.00 3 in stock View
LS-FFL-1555 12 mm, 1.1", C-Mount $329.00 4 in stock View
LS-FFL-1564 25 mm, 1/1.7", C-Mount $339.00 5 in stock View
LS-FFL-1585 25 mm, 2/3", C-Mount $339.00 4 in stock View
LS-FFL-1548 16 mm, 1", C-Mount $339.00 2 in stock View
LS-FFL-1565 35 mm, 1/1.7", C-Mount $359.00 5 in stock View
LS-FFL-1586 35 mm, 2/3", C-Mount $359.00 4 in stock View
LS-FFL-1557 25 mm, 1.1", C-Mount $359.00 3 in stock View
LS-FFL-1558 35 mm, 1.1", C-Mount $359.00 3 in stock View
LS-FFL-1551 50 mm, 1", C-Mount $369.00 3 in stock View
LS-FFL-1559 50 mm, 1.1", C-Mount $369.00 4 in stock View
LS-FFL-1554 8 mm, 1.1", C-Mount $379.00 5 in stock View
LS-FFL-1566 50 mm, 1/1.7", C-Mount $389.00 5 in stock View
LS-FFL-1587 50 mm, 2/3", C-Mount $389.00 4 in stock View
LS-FFL-1552 75 mm, 1", C-Mount $429.00 2 in stock View
