FA lens series (LS-FFL-S151)
  • FA lens series (LS-FFL-S151)

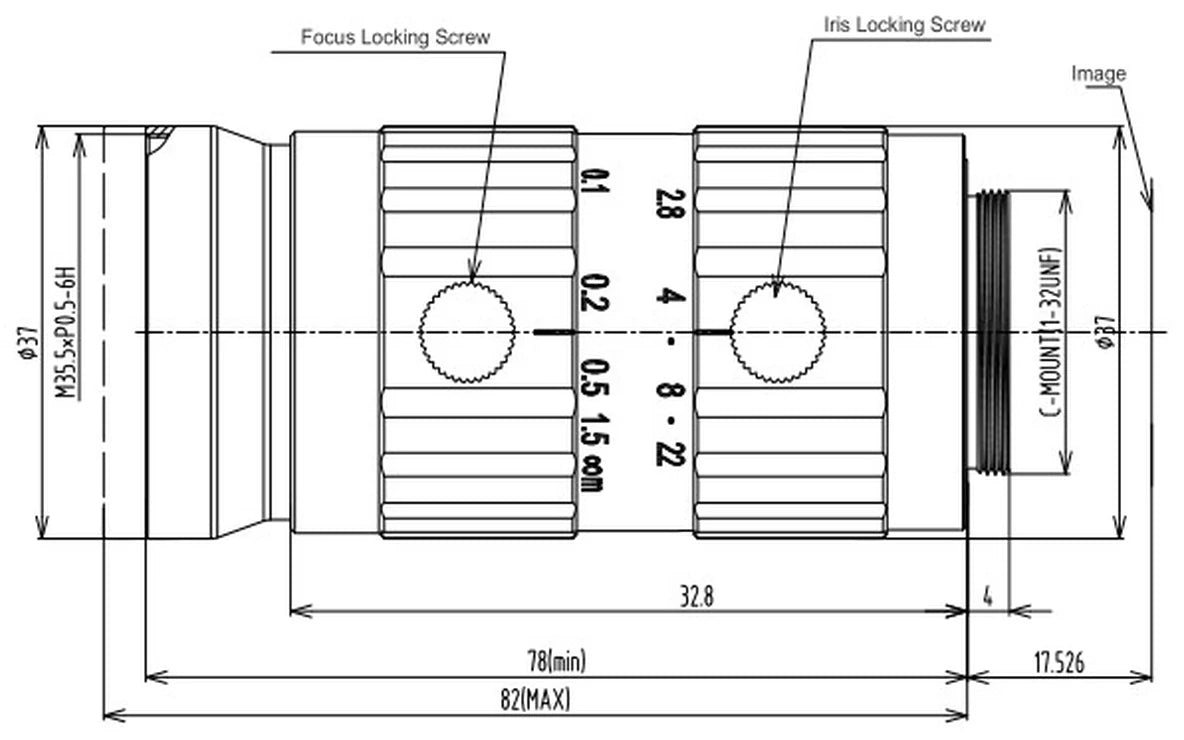

  • LS-FFL-1557 dimensions (mm)

Representative photo of this series

Machine vision lenses

FA lens series, 25 mm, 1.1", C-Mount (LS-FFL-1557)

Model LS-FFL-1557

  • Focal lengthf=25mm
  • MountC-mount
  • Sensor1.1"
  • Sensor format1.1"
$359.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

FA lens series, 25 mm, 1.1", C-Mount (LS-FFL-1557)LS-FFL-1557

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

FA lens series: compact design, adjustable aperture, ultra-high resolution and minimized distortion; supports 1/1.8", 1/1.7", 2/3", 1" sensors, max sensor 1.1".

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1557
Angle H (1.1")30.4°
Angle H (1")27.6°
Angle H (2/3")19.2°
Angle V (1.1")23°
Angle V (1")20.9°
Angle V (2/3")14.5°
Angle D (1.1")37.6°
Angle D (1")34.2°
Angle D (2/3")23.9°
Flange back17.526mm in air
Front/Rear Effective Diadia. 20mm/dia. 19.2mm
Detector1.1"

Optics

Focal lengthf=25mm
Object Dimension at M.O.D H (1.1")119.4mm
Object Dimension at M.O.D H (1")108.5mm
Object Dimension at M.O.D H (2/3")74.6mm
Object Dimension at M.O.D V (1.1")89.5mm
Object Dimension at M.O.D V (1")81.4mm
Object Dimension at M.O.D V (2/3")74.6mm
Object Dimension at M.O.D D (1.1")186.5mm
Object Dimension at M.O.D D (1")135.6mm
Object Dimension at M.O.D D (2/3")93.2mm
Focus distance(min)0.1M
Back focus29.6mm in air
Filter screw sizeM35.5*P0.5

Sensor and imaging

Sensor format1.1"

Environment and compliance

Temperature range-10~+50°C
Storage temperature range-20~+60°C

Mechanical

MountC-Mount
Max Diameter(RATIO)F=1:2.8~22
Picture size1.1" / 1" / 2/3"
Shipping weight0.38 kg
