FA lens series (LS-FFL-S151)
  • FA lens series (LS-FFL-S151)

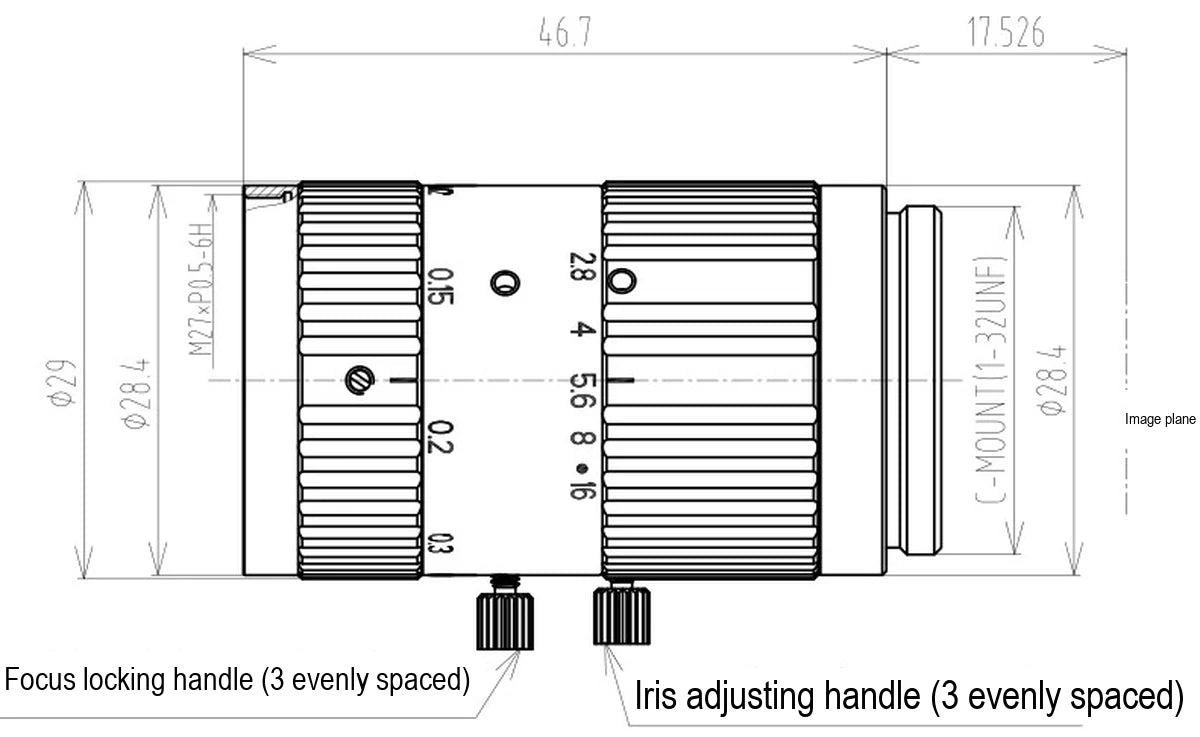

  • LS-FFL-1586 dimensions (mm)

Representative photo of this series

Machine vision lenses

FA lens series, 35 mm, 2/3", C-Mount, FOV 13.1° (LS-FFL-1586)

Model LS-FFL-1586

  • Focal length35mm
  • MountC-mount
  • Sensor2/3"
  • Aperture1:2.8~16
  • Resolution10MP
  • Field of view13.1°
$359.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

FA lens series, 35 mm, 2/3", C-Mount, FOV 13.1° (LS-FFL-1586)LS-FFL-1586

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

FA lens series: compact design, adjustable aperture, ultra-high resolution and minimized distortion; supports 1/1.8", 1/1.7", 2/3", 1" sensors, max sensor 1.1".

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1586
Angle H (2/3"(8.8*6.6mm))13.1°
Angle H (1/2"(6.4*4.8mm))9.5°
Angle H (1/3"(4.8*3.6mm))7.2°
Angle V (2/3"(8.8*6.6mm))9.9°
Angle V (1/2"(6.4*4.8mm))7.2°
Angle V (1/3"(4.8*3.6mm))5.5°
Angle D (2/3"(8.8*6.6mm))16.3°
Angle D (1/2"(6.4*4.8mm))11.9°
Angle D (1/3"(4.8*3.6mm))8.8°
Flange back17.526mm in air
Front/Rear Effective Diadia. 16.8mm/dia. 11mm
F.NO1:2.8~16

Optics

Object Dimension at M.O.D H (2/3"(8.8*6.6mm))50.7mm
Object Dimension at M.O.D H (1/2"(6.4*4.8mm))36.8mm
Object Dimension at M.O.D H (1/3"(4.8*3.6mm))27.2mm
Object Dimension at M.O.D V (2/3"(8.8*6.6mm))38mm
Object Dimension at M.O.D V (1/2"(6.4*4.8mm))27.6mm
Object Dimension at M.O.D V (1/3"(4.8*3.6mm))20.4mm
Object Dimension at M.O.D D (2/3"(8.8*6.6mm))63.2mm
Object Dimension at M.O.D D (1/2"(6.4*4.8mm))46mm
Object Dimension at M.O.D D (1/3"(4.8*3.6mm))34mm
Focus distance(min)0.1M
Back focus16.55mm in air
Filter screw sizeM27x0.5
Focal length35mm
Field of view H13.1°
Field of view V9.9°
Field of view D16.3°
Distortion<0.1%
Aperture1:2.8~16

Sensor and imaging

Sensor2/3"
Resolution10MP
Sensor format2/3"

Environment and compliance

Temperature range-10~+50°C
Storage temperature range-20~+60°C

Mechanical

MountC-Mount
Max Diameter(RATIO)F=1:2.8~16
Picture size2/3"(8.8*6.6mm) / 1/2"(6.4*4.8mm) / 1/3"(4.8*3.6mm)
Shipping weight0.38 kg
