FA lens series (LS-FFL-S151)
  • FA lens series (LS-FFL-S151)

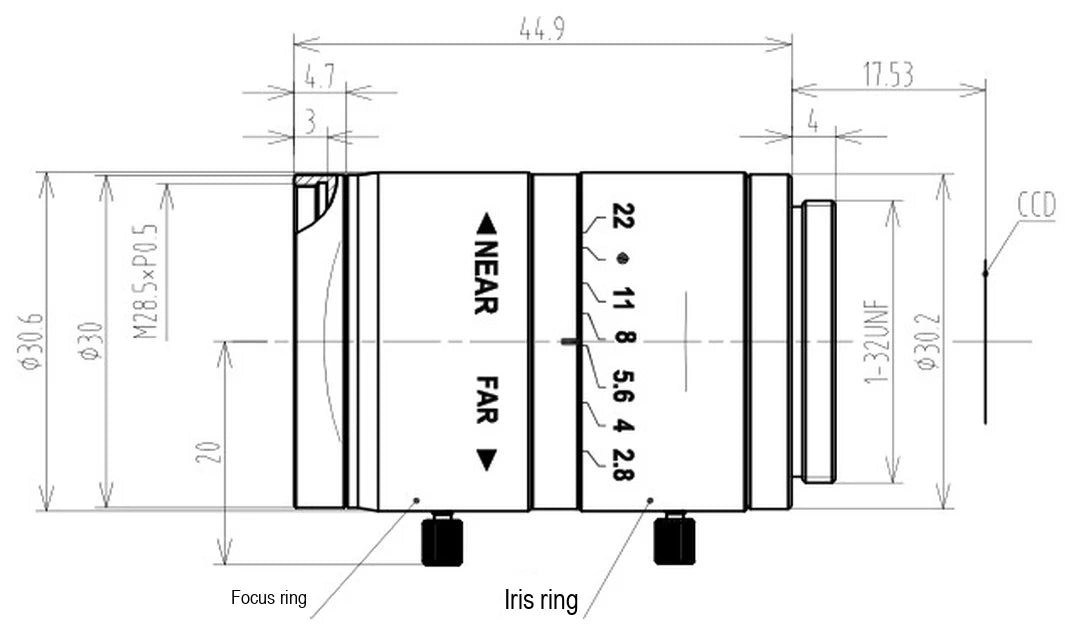

  • LS-FFL-1574 dimensions (mm)

Representative photo of this series

Machine vision lenses

FA lens series, 50 mm, 1/1.8", C-Mount, resolution 5MP (LS-FFL-1574)

Model LS-FFL-1574

  • Focal length50mm
  • MountC-mount
  • Sensor1/3"
  • Aperture2.8~22
  • Resolution5MP
  • Field of view8.2°
$249.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

FA lens series, 50 mm, 1/1.8", C-Mount, resolution 5MP (LS-FFL-1574)LS-FFL-1574

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

FA lens series: compact design, adjustable aperture, ultra-high resolution and minimized distortion; supports 1/1.8", 1/1.7", 2/3", 1" sensors, max sensor 1.1".

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1574
Angle | H | 8.2 | 6.65.5
Angle | V | 6.1 | 4.94.1
Angle | D | 10.2 | 8.26.9
Flange back17.526mm in air
Front/Rear Effective DiaFront dia. 17.4mm Rear dia. 8mm
F.NO2.8~22

Optics

Image Size | 1/1.8" (7.2*5.3mm) | 1/2.5" (5.76*4.32mm)1/3" (4.8*3.6mm)
Object Dimension at M.O.D | H | 36.1 | 29.424.5
Object Dimension at M.O.D | V | 27.1 | 22.118.4
Object Dimension at M.O.D | D | 45 | 36.130.6
Focus distance(min)300mm
Back focus17.4-27.1mm in air
Focal length50mm
Field of view H8.2°
Field of view V6.1°
Field of view D10.2°
Distortion<0.05%
Aperture2.8~22

Sensor and imaging

Sensor1/1.8"
Resolution5MP
Sensor format1/1.8"

Environment and compliance

Temperature range-10~+50°C
Storage temperature range-20~+60°C

Mechanical

MountC-Mount
Shipping weight0.38 kg
