FA lens series (LS-FFL-S151)
  • FA lens series (LS-FFL-S151)

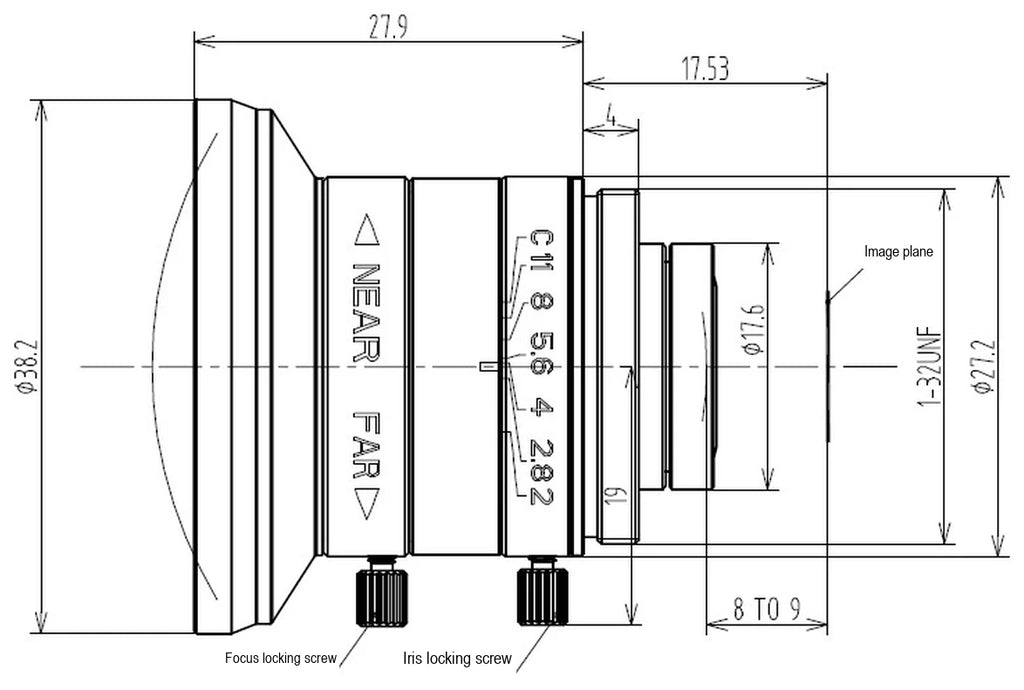

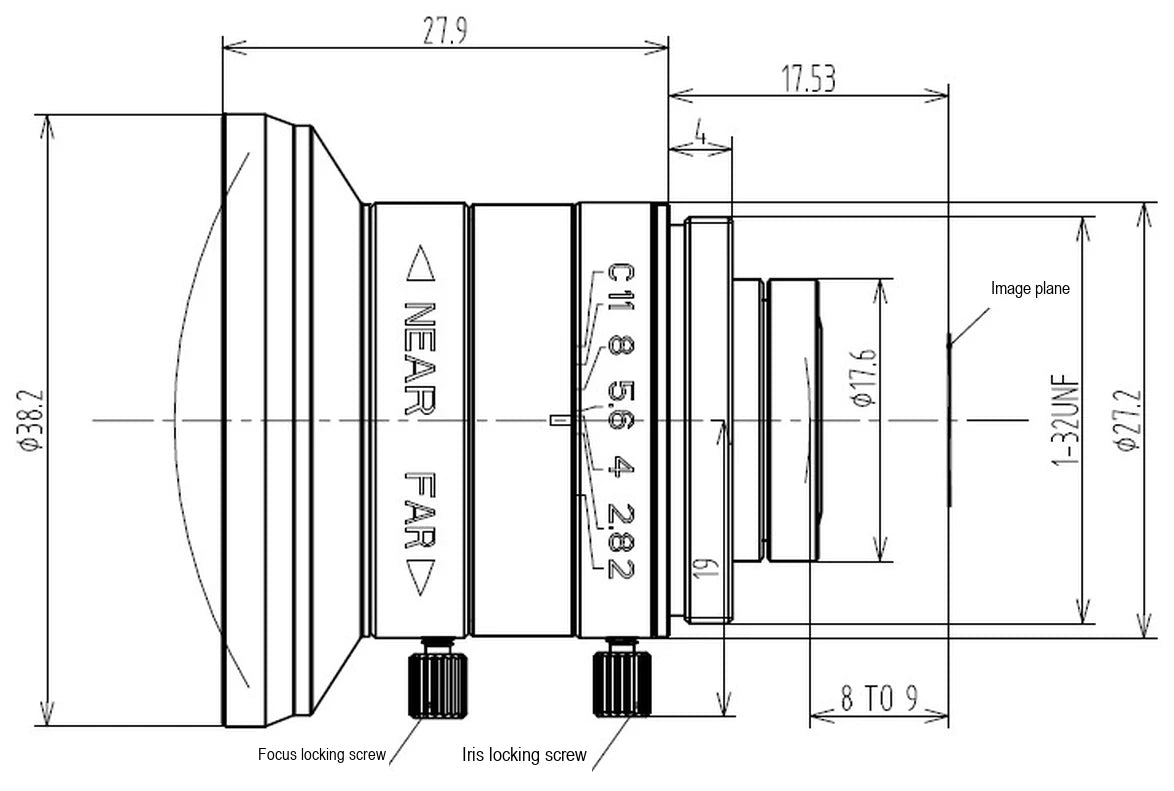

  • LS-FFL-1567 dimensions (mm)

Representative photo of this series

Machine vision lenses

FA lens series, 4 mm, 1/1.8", C-Mount (LS-FFL-1567)

Model LS-FFL-1567

  • Focal length4mm
  • MountC-mount
  • Sensor1/3"
  • Aperture2.0-C
  • Resolution5MP
  • Field of view82.9°
$159.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

FA lens series, 4 mm, 1/1.8", C-Mount (LS-FFL-1567)LS-FFL-1567

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

FA lens series: compact design, adjustable aperture, ultra-high resolution and minimized distortion; supports 1/1.8", 1/1.7", 2/3", 1" sensors, max sensor 1.1".

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1567
Angle | H | 82.9 | 70.761.1
Angle | V | 66.5 | 56.747.5
Angle | D | 94 | 82.978.2
Flange back17.526mm in air
Front/Rear Effective DiaFront dia. 32.6mm Rear dia. 7mm
F.NO2.0-C

Optics

Image Size | 1/1.8" (7.2*5.3mm) | 1/2.5" (5.76*4.32mm)1/3" (4.8*3.6mm)
Object Dimension at M.O.D | H | 459mm | 375mm311mm
Object Dimension at M.O.D | V | 344mm | 279mm231mm
Object Dimension at M.O.D | D | 574mm | 459mm391mm
Focus distance(min)0.1M
Back focus8.7mm in air
Focal length4mm
Field of view H82.9°
Field of view V66.5°
Field of view D94°
Distortion<0.5%
Aperture2.0-C

Sensor and imaging

Sensor1/1.8"
Resolution5MP
Sensor format1/1.8"

Environment and compliance

Temperature range-10~+50°C
Storage temperature range-20~+60°C

Mechanical

MountC-Mount
Shipping weight0.38 kg

Other models in the FA lens series (LS-FFL-S151) series

See all 41 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-1568 6 mm, 1/1.8", C-Mount $169.00 Ships in 2-3 weeks View
LS-FFL-1569 8 mm, 1/1.8", C-Mount $169.00 Ships in 2-3 weeks View
LS-FFL-1576 8 mm, 2/3", C-Mount $169.00 Ships in 2-3 weeks View
LS-FFL-1570 12 mm, 1/1.8", C-Mount $179.00 Ships in 2-3 weeks View
LS-FFL-1577 12 mm, 2/3", C-Mount $179.00 Ships in 2-3 weeks View
LS-FFL-1571 16 mm, 1/1.8", C-Mount $189.00 Ships in 2-3 weeks View
LS-FFL-1572 25 mm, 1/1.8", C-Mount $199.00 Ships in 2-3 weeks View
LS-FFL-1579 25 mm, 2/3", C-Mount $199.00 Ships in 2-3 weeks View
LS-FFL-1578 16 mm, 2/3", C-Mount $209.00 Ships in 2-3 weeks View
LS-FFL-1580 35 mm, 2/3", C-Mount $219.00 Ships in 2-3 weeks View
LS-FFL-1573 35 mm, 1/1.8", C-Mount $229.00 Ships in 2-3 weeks View
LS-FFL-1574 50 mm, 1/1.8", C-Mount $249.00 Ships in 2-3 weeks View
LS-FFL-1581 50 mm, 2/3", C-Mount $249.00 Ships in 2-3 weeks View
LS-FFL-1553 6 mm, 1.1", C-Mount $289.00 Ships in 2-3 weeks View
LS-FFL-1560 6 mm, 1/1.7", C-Mount $299.00 Ships in 2-3 weeks View
LS-FFL-1547 12.5 mm, 1", C-Mount $299.00 Ships in 2-3 weeks View
LS-FFL-1575 75 mm, 1/1.8", C-Mount $309.00 Ships in 2-3 weeks View
LS-FFL-1561 8 mm, 1/1.7", C-Mount $309.00 Ships in 2-3 weeks View
LS-FFL-1562 12 mm, 1/1.7", C-Mount $309.00 Ships in 2-3 weeks View
LS-FFL-1582 8 mm, 2/3", C-Mount $309.00 Ships in 2-3 weeks View
LS-FFL-1583 12 mm, 2/3", C-Mount $309.00 Ships in 2-3 weeks View
LS-FFL-1563 16 mm, 1/1.7", C-Mount $319.00 Ships in 2-3 weeks View
LS-FFL-1584 16 mm, 2/3", C-Mount $319.00 Ships in 2-3 weeks View
LS-FFL-1549 25 mm, 1", C-Mount $319.00 Ships in 2-3 weeks View
