FA lens series (VFA1)
  • FA lens series (VFA1)

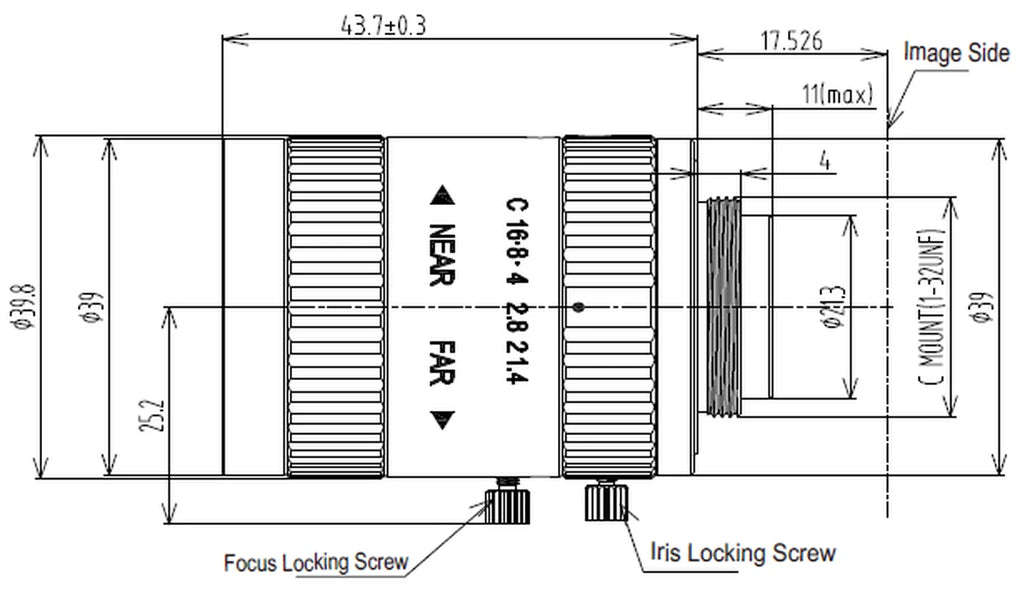

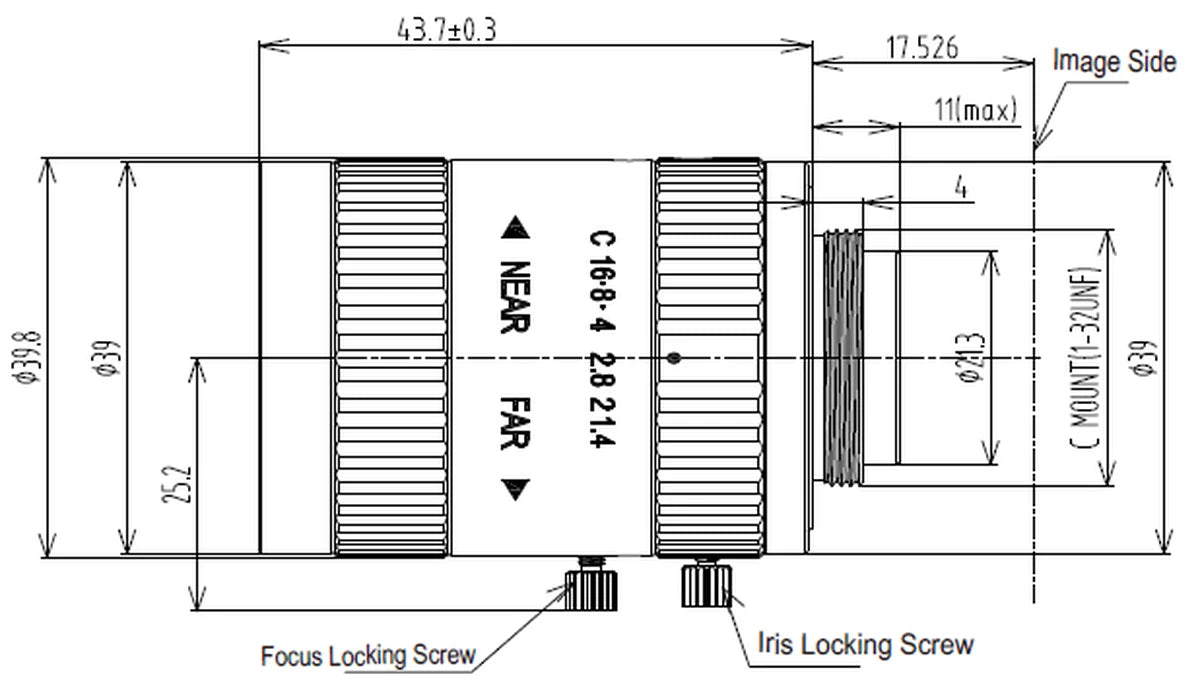

  • LS-VFA1-230-5M35 dimensions (mm)

Representative photo of this series

Machine vision lenses

FA lens series, 35 mm, 2/3", C-Mount, FOV 13.9° (LS-FFL-1580)

Model LS-FFL-1580

  • Focal length35mm
  • MountC-mount
  • Sensor2/3"
  • Aperture1:1.4~16
  • Resolution5MP
  • Field of view13.9°
$219.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

FA lens series, 35 mm, 2/3", C-Mount, FOV 13.9° (LS-FFL-1580)LS-FFL-1580

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

FA lens series: compact design, adjustable aperture, ultra-high resolution and minimized distortion; supports 1/1.8", 1/1.7", 2/3", 1" sensors, max sensor 1.1".

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1580
Angle H (2/3")30.3°
Angle H (1/2")22.3°
Angle H (1/3")16.8°
Angle V (2/3")23°
Angle V (1/2")16.8°
Angle V (1/3")12.6°
Angle D (2/3")37.3°
Angle D (1/2")27.8°
Angle D (1/3")20.9°
Flange back17.526mm in air
Front/Rear Effective DiaFront dia. 22.7mm Rear dia. 12.6mm
F.NO1:1.4~16

Optics

Object Dimension at M.O.D H (2/3")170.4mm
Object Dimension at M.O.D H (1/2")123.7mm
Object Dimension at M.O.D H (1/3")116mm
Object Dimension at M.O.D V (2/3")127.6mm
Object Dimension at M.O.D V (1/2")92.7mm
Object Dimension at M.O.D V (1/3")69.4mm
Object Dimension at M.O.D D (2/3")212.8mm
Object Dimension at M.O.D D (1/2")154.9mm
Object Dimension at M.O.D D (1/3")123.7mm
Focus distance(min)0.2M
Back focus9.2mm in air
Filter screw sizeM30.5x0.5
Focal length35mm
Field of view H13.9°
Field of view V10.4°
Field of view D17.3°
Distortion<0.8%
Aperture1:1.4~16

Sensor and imaging

Sensor2/3"
Resolution5MP
Sensor format2/3"

Environment and compliance

Temperature range-10~+50°C
Storage temperature range-20~+60°C

Mechanical

MountC-Mount
Max Diameter(RATIO)F=1:1.4~16
Picture size2/3" / 1/2" / 1/3"
Shipping weight0.38 kg

Other models in the FA lens series (LS-FFL-S151) series

See all 41 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-1567 4 mm, 1/1.8", C-Mount $159.00 4 in stock View
LS-FFL-1568 6 mm, 1/1.8", C-Mount $169.00 5 in stock View
LS-FFL-1569 8 mm, 1/1.8", C-Mount $169.00 4 in stock View
LS-FFL-1576 8 mm, 2/3", C-Mount $169.00 2 in stock View
LS-FFL-1570 12 mm, 1/1.8", C-Mount $179.00 2 in stock View
LS-FFL-1577 12 mm, 2/3", C-Mount $179.00 4 in stock View
LS-FFL-1571 16 mm, 1/1.8", C-Mount $189.00 2 in stock View
LS-FFL-1572 25 mm, 1/1.8", C-Mount $199.00 5 in stock View
LS-FFL-1579 25 mm, 2/3", C-Mount $199.00 2 in stock View
LS-FFL-1578 16 mm, 2/3", C-Mount $209.00 3 in stock View
LS-FFL-1573 35 mm, 1/1.8", C-Mount $229.00 2 in stock View
LS-FFL-1574 50 mm, 1/1.8", C-Mount $249.00 3 in stock View
LS-FFL-1581 50 mm, 2/3", C-Mount $249.00 4 in stock View
LS-FFL-1553 6 mm, 1.1", C-Mount $289.00 3 in stock View
LS-FFL-1560 6 mm, 1/1.7", C-Mount $299.00 2 in stock View
LS-FFL-1547 12.5 mm, 1", C-Mount $299.00 3 in stock View
LS-FFL-1575 75 mm, 1/1.8", C-Mount $309.00 4 in stock View
LS-FFL-1561 8 mm, 1/1.7", C-Mount $309.00 5 in stock View
LS-FFL-1562 12 mm, 1/1.7", C-Mount $309.00 3 in stock View
LS-FFL-1582 8 mm, 2/3", C-Mount $309.00 5 in stock View
LS-FFL-1583 12 mm, 2/3", C-Mount $309.00 4 in stock View
LS-FFL-1563 16 mm, 1/1.7", C-Mount $319.00 3 in stock View
LS-FFL-1584 16 mm, 2/3", C-Mount $319.00 4 in stock View
LS-FFL-1549 25 mm, 1", C-Mount $319.00 5 in stock View
