200 x 200 mm Edge-Lit Collimated LED Backlight (LS-BKL-1137)
Model LS-BKL-1137-R
- ColourRed, Green, Blue, White
- Emitting area200x200 mm
- Size235x235x11.5 mm
- Voltage24 V
- Power10 W
Ships in 2-3 weeks
0.85 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-BKL-1137: emitting area 200x200 mm, outer size L x W x H 235x235x11.5 mm, power R 7 W.
200 x 200 mm Edge-Lit Collimated LED Backlight. Collimated edge-lit backlight (LED + light-guide plate) that sharpens product edges and raises contrast for diameter and contour measurement; 11.5 mm thick.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1137 |
|---|---|
| Construction (setup diagram) | LED / housing / light-guide plate |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 200x200 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 7 |
| Power W/B/G (W) | 10 |
Mechanical
| Outer size L x W x H (mm) | 235x235x11.5 |
|---|---|
| Thickness (mm) | 11.5 |
| Mounting | X-Φ3.2 through holes (installation); 4-6 depth 3 |
| Shipping weight (estimated) | 0.85 kg |
Mounting and drawing data
Drawing table (X = qty of 3.2 mm through mounting holes): X=4, C=180, D=224
Engineering data
Drive and fit the LS-BKL-1137
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Mounting and installation
| Mounting holes | 4 × Ø 3.2 mmthrough |
|---|---|
| Cable | 0.5 m |
As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.
Controllers for this light
20 W per channel at 24 V for this 10 W light
4-channel 24 V analog LED light controller
LS-CTL-0461
- Channels 4
- Output 24 V
$150.00
Ships in 3-4 weeks
15 W per channel at 24 V for this 10 W light
2-channel 24 V digital LED light controller, 20 W, RS-232
LS-CTL-0476
- Channels 2
- Output 24 V
$165.00
Ships in 3-4 weeks
10 W per channel at 24 V for this 10 W light
Multi-channel sequencing light controller, 8 ch, 120 W
LS-CTL-0579
- Channels 8
- Output DC 24 V
$399.00
Ships in 2-3 weeks
15 W per channel at 24 V for this 10 W light

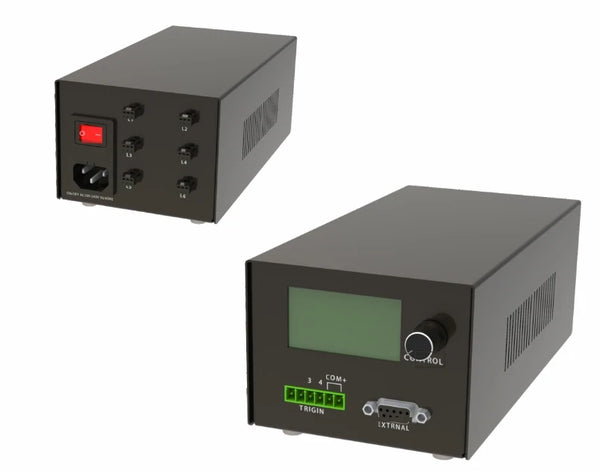

16.7 W per channel at 24 V for this 10 W light
16 channel digital LED light controller, 16 ch, 200 W
LS-CTL-0554
- Channels 16
- Output 24 V
$789.00
Ships in 2-3 weeks
12.5 W per channel at 24 V for this 10 W light
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-BKL-0586, the same type of part
Electronics and devices
Bent pins on connectors and boards
Separate real pin lean from perspective.Field of view50.46 × 37.85 mmExplore the study
Set up with the LS-BKL-1300, the same type of part
Packaging, labels and print
Foreign matter in a bottle bottom
Build the clean-bottle variation into the test before setting a dark-spot threshold.MethodTransmitted white backlightExplore the study
Set up with the LS-BKL-0800, the same type of part
Food, pharma and agriculture
Cake tray surface specks
Light the whole tray evenly and judge specks against real batch variation.Light in sourceLS-BKL-0800 · whiteExplore the study
LS-BKL-1137
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Outer size L x W x H (mm)
- 235x235x11.5
- Emitting area (mm)
- 200x200
- Voltage (V)
- 24
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Collimated Flank Back Light (LS-BKL-S111) series
See all 14 models| Model | Emitting area | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-BKL-1137This model | 200x200 mm | 235x235x11.5 mm | 10 W | $679.00 | Ships in 2-3 weeks | |
| LS-BKL-1129 | 25x25 mm | 60x60x11.5 mm | 2.3 W | $219.00 | Ships in 2-3 weeks | View |
| LS-BKL-1130 | 50x50 mm | 85x85x11.5 mm | 6 W | $249.00 | Ships in 2-3 weeks | View |
| LS-BKL-1131 | 70x70 mm | 105x105x11.5 mm | 7 W | $269.00 | Ships in 2-3 weeks | View |
| LS-BKL-1132 | 80x80 mm | 115x115x11.5 mm | 7 W | $289.00 | Ships in 2-3 weeks | View |
| LS-BKL-1133 | 90x90 mm | 125x125x11.5 mm | 7.5 W | $309.00 | Ships in 2-3 weeks | View |
| LS-BKL-1134 | 110x110 mm | 145x145x11.5 mm | 8.5 W | $359.00 | Ships in 2-3 weeks | View |
| LS-BKL-1135 | 150x100 mm | 185x135x11.5 mm | 8.5 W | $389.00 | Ships in 2-3 weeks | View |
| LS-BKL-1136 | 200x160 mm | 235x195x11.5 mm | 9 W | $589.00 | Ships in 2-3 weeks | View |
| LS-BKL-1138 | 250x200 mm | 285x235x11.5 mm | 12 W | $789.00 | Ships in 2-3 weeks | View |
| LS-BKL-1139 | 300x200 mm | 335x235x11.5 mm | 15 W | $889.00 | Ships in 2-3 weeks | View |
| LS-BKL-1140 | 300x300 mm | 335x335x11.5 mm | 25 W | $1,189.00 | Ships in 2-3 weeks | View |
| LS-BKL-1141 | 400x300 mm | 435x335x11.5 mm | 28 W | $1,489.00 | Ships in 2-3 weeks | View |
| LS-BKL-1142 | 600x400 mm | 635x435x11.5 mm | 30 W | $1,879.00 | Ships in 2-3 weeks | View |
