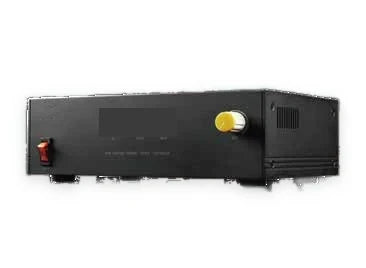

16 channel digital LED light controller, 16 ch, 200 W (LS-CTL-0554)
Model LS-CTL-0554
- Channels16
- Output24V
- Total output200 W
- ControlRS-232
- TriggerContinuous, Switched, Strobe
$789.00
Ships in 2-3 weeks
3.45 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
A constant current type of 16 channels digital light controller for high precision and intensity control of machine vision LED light.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0554 |
|---|---|
| Intensity levels | 0~255 |
| Control | Digital, 256 levels (0~255), RS-232 |
Interfaces and I/O
| Communication port | RS-232 |
|---|
Environment and compliance
| Operating environment | Temperature 0~40°C / Humidity 25%~85% |
|---|
Electrical
| Power supply | AC100V-240V |
|---|---|
| Max. output current of each channel | 1A |
| Max. output voltage of each channel | 24V |
| Channels | 16 |
| External trigger mode | Continuous, Switched, Strobe |
| External trigger voltage | 5~24V |
| Trigger delay time | < 20us |
| Internal output pulse-width | 100us-300ms, in steps of 100us |
| Baud rate and data format | 9600/data bit, 8/stop bit, 1/no parity |
| Total output (W) | 200 |
Mechanical

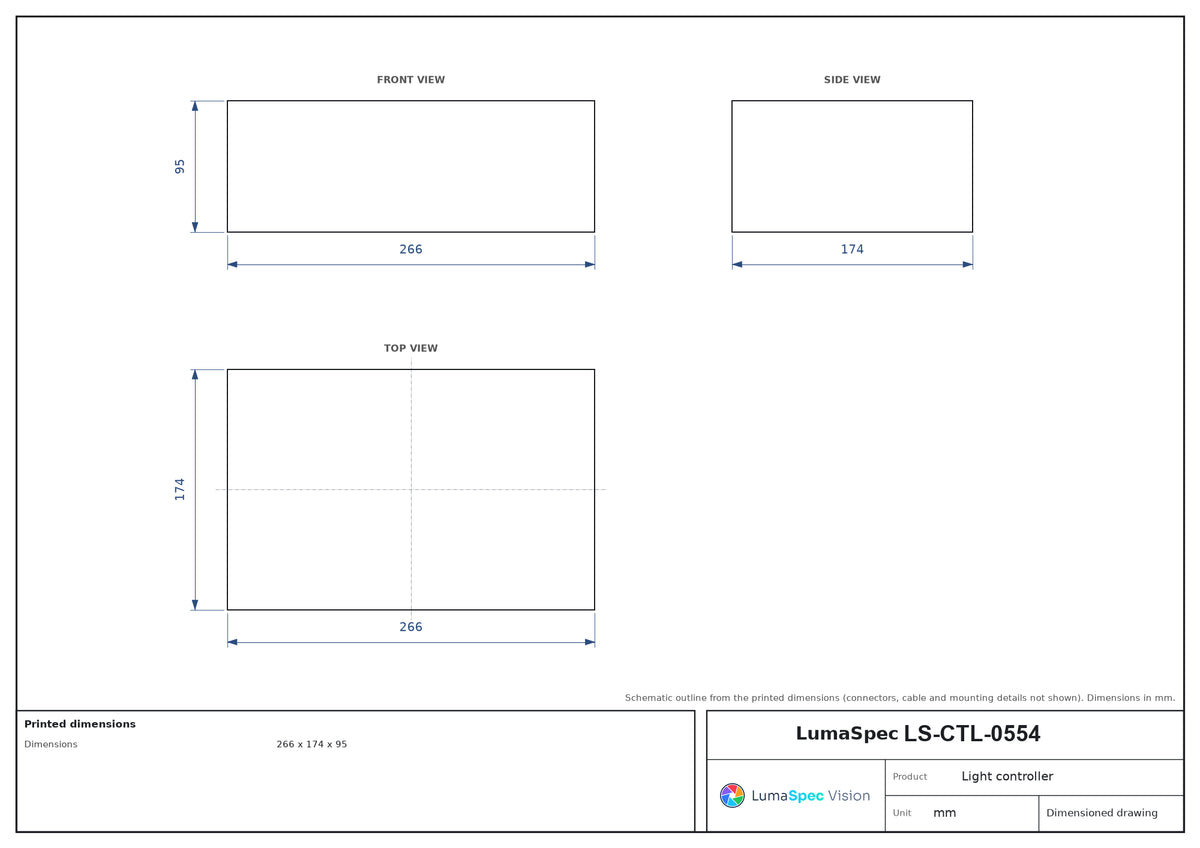

| Dimensions (mm) | 266 x 174 x 95 |
|---|---|
| Weight | 2.85Kg |
