Backlights
200 x 160 mm Edge-Lit Collimated LED Backlight (LS-BKL-1136)
Model LS-BKL-1136-R
- ColourRed, Green, Blue, White
- Emitting area200x160 mm
- Size235x195x11.5 mm
- Voltage24 V
- Power9 W
$589.00
Ships in 2-3 weeks
0.75 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-BKL-1136: emitting area 200x160 mm, outer size L x W x H 235x195x11.5 mm, power R 6 W.
200 x 160 mm Edge-Lit Collimated LED Backlight. Collimated edge-lit backlight (LED + light-guide plate) that sharpens product edges and raises contrast for diameter and contour measurement; 11.5 mm thick.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1136 |
|---|---|
| Construction (setup diagram) | LED / housing / light-guide plate |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 200x160 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 6 |
| Power W/B/G (W) | 9 |
Mechanical
| Outer size L x W x H (mm) | 235x195x11.5 |
|---|---|
| Thickness (mm) | 11.5 |
| Mounting | X-Φ3.2 through holes (installation); 4-6 depth 3 |
| Shipping weight (estimated) | 0.75 kg |
Mounting and drawing data
Drawing table (X = qty of 3.2 mm through mounting holes): X=4, C=180, D=184
Engineering data
Drive and fit the LS-BKL-1136
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Supply24 V DC
Current at 24 VRed: 250 mAWhite / Blue / Green: 375 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 9 W
Emitting area200 × 160 mmKeep the camera's field of view inside it for an even background.
Cable length500 mm
Mounting and installation
| Mounting holes | 4 × Ø 3.2 mmthrough |
|---|---|
| Cable | 0.5 m |
As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.
Controllers for this light
15 W per channel at 24 V for this 9 W light
2-channel 24 V digital LED light controller, 20 W, RS-232
LS-CTL-0476
- Channels 2
- Output 24 V
$165.00
Ships in 3-4 weeks
10 W per channel at 24 V for this 9 W light
Multi-channel sequencing light controller, 8 ch, 120 W
LS-CTL-0579
- Channels 8
- Output DC 24 V
$399.00
Ships in 2-3 weeks
15 W per channel at 24 V for this 9 W light
16.7 W per channel at 24 V for this 9 W light
16 channel digital LED light controller, 16 ch, 200 W
LS-CTL-0554
- Channels 16
- Output 24 V
$789.00
Ships in 2-3 weeks
12.5 W per channel at 24 V for this 9 W light
20 W per channel at 24 V for this 9 W light
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-BKL-0803, the same type of part
Metal parts and machining
Saw-blade side and position
Use the bore and slots for position, and only a proven side-specific feature for face or back.Light in sourceLS-BKL-0803 · redExplore the study
Set up with the LS-BKL-1012, the same type of part
Metal parts and machining
Screw outline with a collimated panel
Collimated lighting improves a silhouette; stable magnification is a separate lens decision.Proposed light housing (spec)64 × 64 × 19 mmExplore the study
Set up with the LS-BKL-0803, the same type of part
Electronics and devices

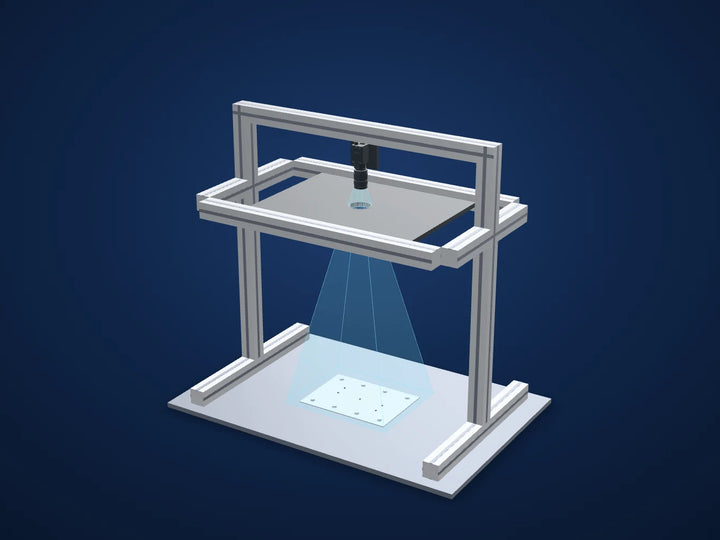

Server-panel screw check
Check each expected screw position, not only the total count.Light in sourceLS-BKL-0803 · whiteExplore the study
LS-BKL-1136
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Outer size L x W x H (mm)
- 235x195x11.5
- Emitting area (mm)
- 200x160
- Voltage (V)
- 24
- Power R (W)
- 6
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Collimated Flank Back Light (LS-BKL-S111) series
See all 14 models| Model | Emitting area | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-BKL-1136This model | 200x160 mm | 235x195x11.5 mm | 9 W | $589.00 | Ships in 2-3 weeks | |
| LS-BKL-1129 | 25x25 mm | 60x60x11.5 mm | 2.3 W | $219.00 | Ships in 2-3 weeks | View |
| LS-BKL-1130 | 50x50 mm | 85x85x11.5 mm | 6 W | $249.00 | Ships in 2-3 weeks | View |
| LS-BKL-1131 | 70x70 mm | 105x105x11.5 mm | 7 W | $269.00 | Ships in 2-3 weeks | View |
| LS-BKL-1132 | 80x80 mm | 115x115x11.5 mm | 7 W | $289.00 | Ships in 2-3 weeks | View |
| LS-BKL-1133 | 90x90 mm | 125x125x11.5 mm | 7.5 W | $309.00 | Ships in 2-3 weeks | View |
| LS-BKL-1134 | 110x110 mm | 145x145x11.5 mm | 8.5 W | $359.00 | Ships in 2-3 weeks | View |
| LS-BKL-1135 | 150x100 mm | 185x135x11.5 mm | 8.5 W | $389.00 | Ships in 2-3 weeks | View |
| LS-BKL-1137 | 200x200 mm | 235x235x11.5 mm | 10 W | $679.00 | Ships in 2-3 weeks | View |
| LS-BKL-1138 | 250x200 mm | 285x235x11.5 mm | 12 W | $789.00 | Ships in 2-3 weeks | View |
| LS-BKL-1139 | 300x200 mm | 335x235x11.5 mm | 15 W | $889.00 | Ships in 2-3 weeks | View |
| LS-BKL-1140 | 300x300 mm | 335x335x11.5 mm | 25 W | $1,189.00 | Ships in 2-3 weeks | View |
| LS-BKL-1141 | 400x300 mm | 435x335x11.5 mm | 28 W | $1,489.00 | Ships in 2-3 weeks | View |
| LS-BKL-1142 | 600x400 mm | 635x435x11.5 mm | 30 W | $1,879.00 | Ships in 2-3 weeks | View |
