Line scan lights

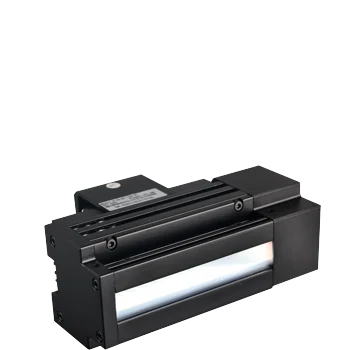

High-brightness line lights
- 22 models
- from $279.00
- Series LS-LTHS-C
The High-brightness line lights is a range of 22 line scan lights from LumaSpec Vision, from $279.00. It comes in 22 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 143 mm, Red, 143 mm, White, 243 mm, White, 343 mm, White, 393 mm, White, 420 mm, 443 mm, White, 543 mm, White, 643 mm, White, 770 mm, White, 870 mm, White, 970 mm, White, 1070 mm, White, 1170 mm, White, 1270 mm, White, 1370 mm, White and 6 more
- Colour
- Red, White
Features
- One-piece aluminum alloy housing with fan for good heat dissipation
- Imported high-power LEDs with brightness up to 100 × 10, 000 lux
- Nut slots on top and bottom for flexible mounting
All 22 models in the High-brightness line lights
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LTHS-100-R | 143 mm, Red | 100 mm × 17 mm | Red | 48 W | $279.00 | View |
| LS-LTHS-100-W | 143 mm, White | 100 mm × 17 mm | White | 48 W | $279.00 | View |
| LS-LTHS-200-W | 243 mm, White | 200 mm × 17 mm | White | 96 W | $469.00 | View |
| LS-LTHS-300-W | 343 mm, White | 300 mm × 17 mm | White | 129.6 W | $659.00 | View |
| LS-LTHS-350-W | 393 mm, White | 350 mm × 17 mm | White | 173 W | $749.00 | View |
| LS-LTHS-400-WX | 420 mm | 400 mm × 33 mm | White | 96 W | $839.00 | View |
| LS-LTHS-400-W | 443 mm, White | 400 mm × 17 mm | White | 172.8 W | $839.00 | View |
| LS-LTHS-500-W | 543 mm, White | 500 mm × 17 mm | White | 216 W | $1,029.00 | View |
| LS-LTHS-600-W | 643 mm, White | 600 mm × 17 mm | White | 259.2 W | $1,219.00 | View |
| LS-LTHS-700-W | 770 mm, White | 700 mm × 17 mm | White | 307.2 W | $1,409.00 | View |
| LS-LTHS-800-W | 870 mm, White | 800 mm × 17 mm | White | 384 W | $1,599.00 | View |
| LS-LTHS-900-W | 970 mm, White | 900 mm × 17 mm | White | 393.6 W | $1,789.00 | View |
| LS-LTHS-1000-W | 1070 mm, White | 1000 mm × 17 mm | White | 432 W | $1,979.00 | View |
| LS-LTHS-1100-W | 1170 mm, White | 1100 mm × 17 mm | White | 480 W | $2,169.00 | View |
| LS-LTHS-1200-W | 1270 mm, White | 1200 mm × 17 mm | White | 514.8 W | $2,359.00 | View |
| LS-LTHS-1300-W | 1370 mm, White | 1300 mm × 17 mm | White | 576 W | $2,549.00quote | View |
| LS-LTHS-1500-W | 1570 mm, White | 1500 mm × 17 mm | White | 653 W | $2,919.00quote | View |
| LS-LTHS-1600-W | 1670 mm, White | 1600 mm × 17 mm | White | 672 W | $3,109.00quote | View |
| LS-LTHS-1700-W | 1770 mm, White | 1700 mm × 17 mm | White | 734.4 W | $3,299.00quote | View |
| LS-LTHS-1800-W | 1870 mm, White | 1800 mm × 17 mm | White | 778 W | $3,489.00quote | View |
| LS-LTHS-1900-W | 1970 mm, White | 1900 mm × 17 mm | White | 820.8 W | $3,679.00quote | View |
| LS-LTHS-2000-W | 2070 mm, White | 2000 mm × 17 mm | White | 864 W | $3,869.00quote | View |
