Line scan lights

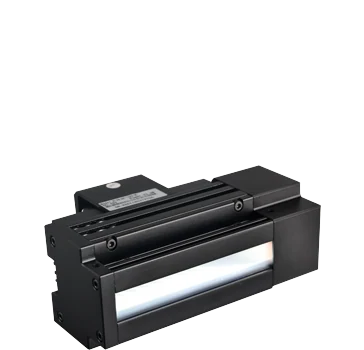

Line Scan Light, 343 mm, White, size 343 mm × 58 mm × 90.1 mm (LS-LTHS-300-W)
Model LS-LTHS-300-W
- ColourWhite
- Emitting area300 mm × 17 mm
- Size343 mm × 58 mm × 90.1 mm
- Power129.6 W
$659.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Line Scan Light, 343 mm, White. One-piece aluminum alloy housing with fan for good heat dissipation Imported high-power LEDs with brightness up to 100 × 10, 000 lux
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LTHS-300-W |
|---|
Interfaces and I/O
| Connector type | 19M-6H |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000 ~ 7000K |
| LED rows | 1 |
| Emitting area dimension | 300 mm × 17 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 129.6 W |
|---|
Mechanical
| Dimension | 343 mm × 58 mm × 90.1 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the High-brightness line lights series
See all 22 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LTHS-100-R | 143 mm, Red | $279.00 | 4 in stock | View |
| LS-LTHS-100-W | 143 mm, White | $279.00 | 2 in stock | View |
| LS-LTHS-200-W | 243 mm, White | $469.00 | 5 in stock | View |
| LS-LTHS-350-W | 393 mm, White | $749.00 | 3 in stock | View |
| LS-LTHS-400-WX | 420 mm | $839.00 | 5 in stock | View |
| LS-LTHS-400-W | 443 mm, White | $839.00 | 5 in stock | View |
| LS-LTHS-500-W | 543 mm, White | $1,029.00 | 2 in stock | View |
| LS-LTHS-600-W | 643 mm, White | $1,219.00 | 3 in stock | View |
| LS-LTHS-700-W | 770 mm, White | $1,409.00 | 2 in stock | View |
| LS-LTHS-800-W | 870 mm, White | $1,599.00 | 4 in stock | View |
| LS-LTHS-900-W | 970 mm, White | $1,789.00 | 5 in stock | View |
| LS-LTHS-1000-W | 1070 mm, White | $1,979.00 | 3 in stock | View |
| LS-LTHS-1100-W | 1170 mm, White | $2,169.00 | 4 in stock | View |
| LS-LTHS-1200-W | 1270 mm, White | $2,359.00 | 3 in stock | View |
| LS-LTHS-1300-W | 1370 mm, White | $2,549.00 Quote | Ships in 2-3 weeks | View |
| LS-LTHS-1500-W | 1570 mm, White | $2,919.00 Quote | Ships in 2-3 weeks | View |
| LS-LTHS-1600-W | 1670 mm, White | $3,109.00 Quote | Ships in 2-3 weeks | View |
| LS-LTHS-1700-W | 1770 mm, White | $3,299.00 Quote | Ships in 2-3 weeks | View |
| LS-LTHS-1800-W | 1870 mm, White | $3,489.00 Quote | Ships in 2-3 weeks | View |
| LS-LTHS-1900-W | 1970 mm, White | $3,679.00 Quote | Ships in 2-3 weeks | View |
| LS-LTHS-2000-W | 2070 mm, White | $3,869.00 Quote | Ships in 2-3 weeks | View |
