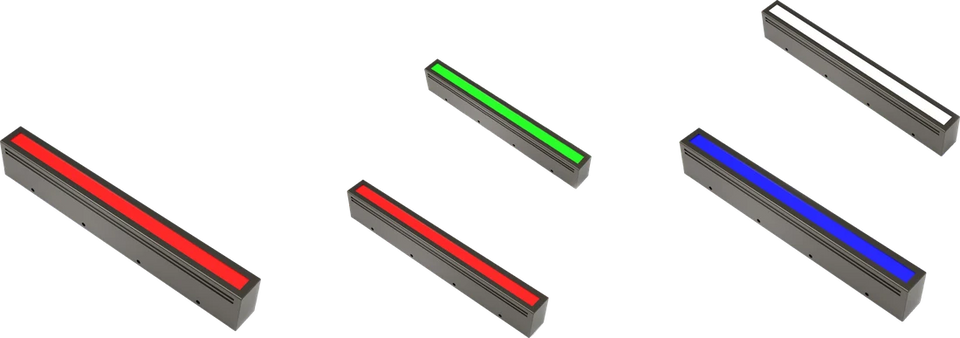

Mini line scan light (LNA)
- 17 models
- from $119.00
- Series LS-LNA
The Mini line scan light (LNA) is a range of 17 line scan lights from LumaSpec Vision, from $119.00. It comes in 17 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 60 mm, 100 mm, 120 mm, 150 mm, 200 mm, 225 mm, 234 mm, 250 mm, 300 mm, 340 mm, 350 mm, 400 mm, 500 mm, 520 mm, 600 mm, 660 mm and 1 more
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- High-power LED and unique condenser structure provide high brightness.
- More compact in size, suitable for limited room.
Typical uses
- Metal surface defect detection
- Substrate component inspection
- Printed character recognition inspection
All 17 models in the Mini line scan light (LNA)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LNA-60 | 60 mm | 60x10 | 70x21x34 | 4 | $119.00 | View |
| LS-LNA-100 | 100 mm | 100x10 | 110x21x34 | 5 | $169.00 | View |
| LS-LNA-120 | 120 mm | 120x10 | 130x21x34 | 6 | $189.00 | View |
| LS-LNA-150 | 150 mm | 150x10 | 160x21x34 | 7 | $229.00 | View |
| LS-LNA-200 | 200 mm | 200x10 | 210x21x34 | 8 | $279.00 | View |
| LS-LNA-225 | 225 mm | 225x10 | 235x21x34 | 10 | $309.00 | View |
| LS-LNA-234 | 234 mm | 234x10 | 244x21x34 | 11 | $319.00 | View |
| LS-LNA-250 | 250 mm | 250x10 | 260x21x34 | 13 | $339.00 | View |
| LS-LNA-300 | 300 mm | 300x10 | 310x21x34 | 15 | $399.00 | View |
| LS-LNA-340 | 340 mm | 340x10 | 350x21x34 | 20 | $439.00 | View |
| LS-LNA-350 | 350 mm | 350x10 | 360x21x34 | 22 | $449.00 | View |
| LS-LNA-400 | 400 mm | 400x10 | 410x21x34 | 25.6 | $509.00 | View |
| LS-LNA-500 | 500 mm | 500x10 | 510x21x34 | 27 | $619.00 | View |
| LS-LNA-520 | 520 mm | 520x10 | 530x21x34 | 29 | $649.00 | View |
| LS-LNA-600 | 600 mm | 600x10 | 610x21x34 | 31 | $739.00 | View |
| LS-LNA-660 | 660 mm | 660x10 | 670x21x34 | 35 | $799.00 | View |
| LS-LNA-1100 | 1100 mm | 1100x10 | 1110x21x34 | 58 | $1,299.00 | View |
