Line scan lights

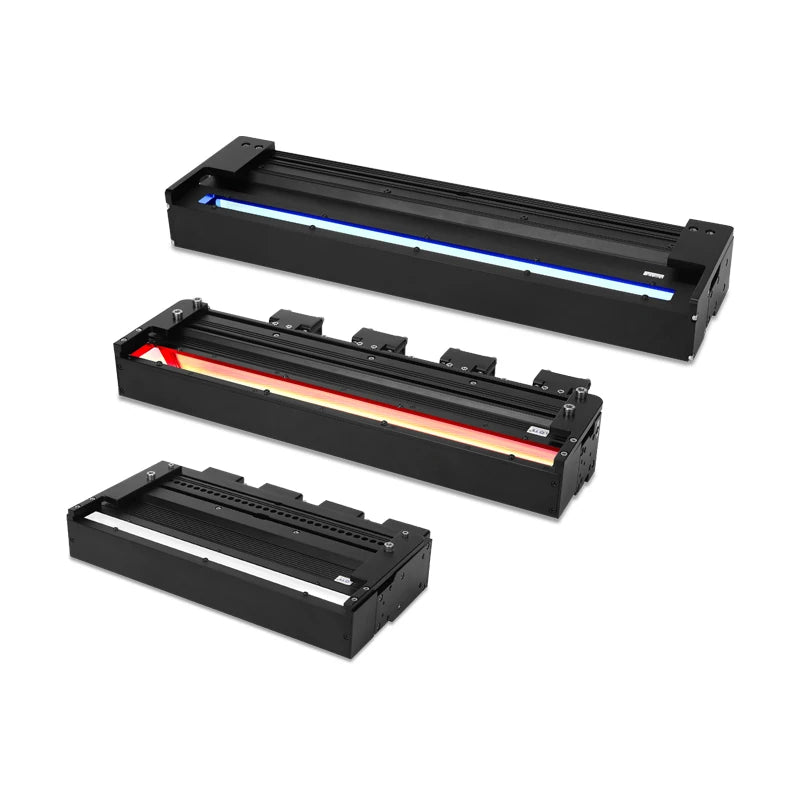

Coaxial line scan light (4COHL)
- 10 models
- from $349.00
- Series LS-4COHL
The Coaxial line scan light (4COHL) is a range of 10 line scan lights from LumaSpec Vision, from $349.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- 100-200 mm, 200-400 mm, 400 mm +
- Voltage
- 24 V
Features
- Special structure and optical lens design adopted
- Good uniformity
- Good stability and high heat dissipation performance
Typical uses
- PCB inspection
- Mobile screen inspection
- Steel plate inspection
- Glass scratch inspection
All 10 models in the Coaxial line scan light (4COHL)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-4COHL100 | 100 x 24 | 34.6W | L140xW142.1xH56(mm) | 1: +, 2: -, 3: FAN+, 4: FAN- | $349.00 | View |
| LS-4COHL200 | 200 x 24 | 64.8W | L240xW142.1xH56(mm) | 1: +, 2: -, 3: FAN+, 4: FAN- | $539.00 | View |
| LS-4COHL300 | 300 x 24 | 95.0W | L340xW142.1xH56(mm) | 1: +, 2: -, 3: FAN+, 4: FAN- | $729.00 | View |
| LS-4COHL400 | 400 x 24 | 130W | L440xW142.1xH56(mm) | 1: +, 2: -, 3: FAN+, 4: FAN- | $919.00 | View |
| LS-4COHL500 | 500 x 24 | 165W | L540xW142.1xH56(mm) | 1: +, 2: -, 3: FAN+, 4: FAN- | $1,109.00 | View |
| LS-4COHL600 | 600 x 24 | 190W | L640xW142.1xH56(mm) | 1: +, 2: -, 3: FAN+, 4: FAN- | $1,299.00 | View |
| LS-4COHL700 | 700 x 24 | 221W | L740xW142.1xH56(mm) | 1: +, 2: -, 3: FAN+, 4: FAN- | $1,489.00 | View |
| LS-4COHL800 | 800 x 24 | 260W | L840xW142.1xH56(mm) | 1: +, 2: -, 3: FAN+, 4: FAN- | $1,679.00 | View |
| LS-4COHL900 | 900 x 24 | 286W | L940xW142.1xH56(mm) | 1: +, 2: - | $1,869.00 | View |
| LS-4COHL1000 | 1000 x 24 | 324W | L1040xW142.1xH56(mm) | 1: +, 2: -, 3: FAN+, 4: FAN- | $2,049.00 | View |
