Line scan lights

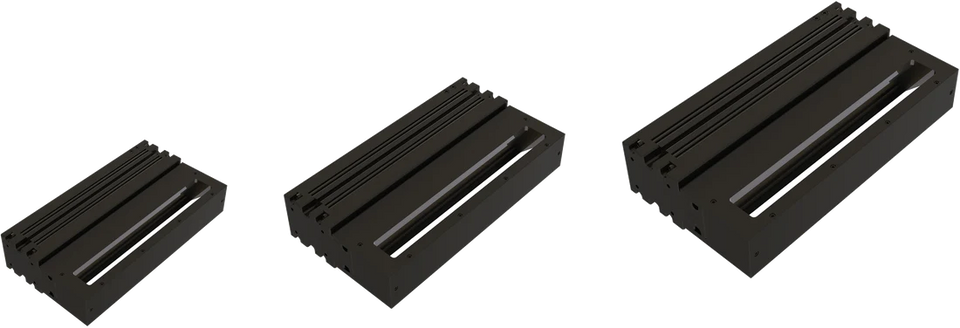

Coaxial line scan light (COX)
- 9 models
- from $389.00
- Series LS-COX
The Coaxial line scan light (COX) is a range of 9 line scan lights from LumaSpec Vision, from $389.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm, 600 mm, 700 mm, 900 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 48 V
Features
- High-speed, large-format, high-brightness coaxial illumination.
- High-efficiency optical structure.
- Compatible with surface inspection of both glossy and matte workpiece.
- Highly directional illumination, reduces divergence and enhances inspection effectiveness.
Typical uses
- Substrate component inspection
- Separator appearance check
- Touch panel damage/dent detection
All 9 models in the Coaxial line scan light (COX)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-COX-100 | 100 mm | 100x20 | 130x50x134.3 | 38 | $389.00 | View |
| LS-COX-150 | 150 mm | 150x20 | 180x50x134.3 | 58 | $519.00 | View |
| LS-COX-200 | 200 mm | 200x20 | 230x50x134.3 | 58 | $649.00 | View |
| LS-COX-250 | 250 mm | 250x20 | 280x50x134.3 | 68 | $779.00 | View |
| LS-COX-300 | 300 mm | 300x20 | 330x50x134.3 | 68 | $919.00 | View |
| LS-COX-400 | 400 mm | 400x20 | 430x50x134.3 | 110 | $1,179.00 | View |
| LS-COX-600 | 600 mm | 600x20 | 630x50x134.3 | 180 | $1,709.00 | View |
| LS-COX-700 | 700 mm | 700x20 | 730x50x137.3 | 210 | $1,969.00 | View |
| LS-COX-900 | 900 mm | 900x20 | 930x50x137.3 | 260 | $2,499.00 | View |
