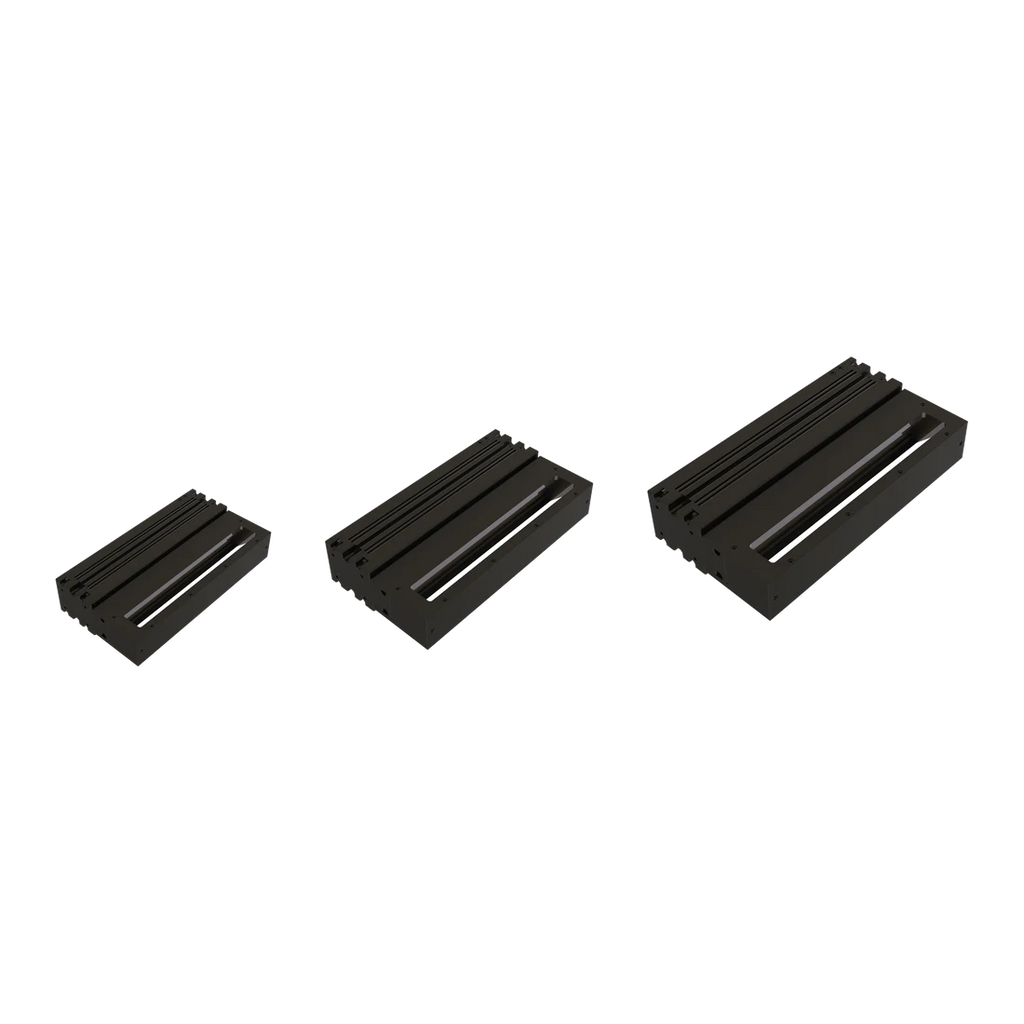

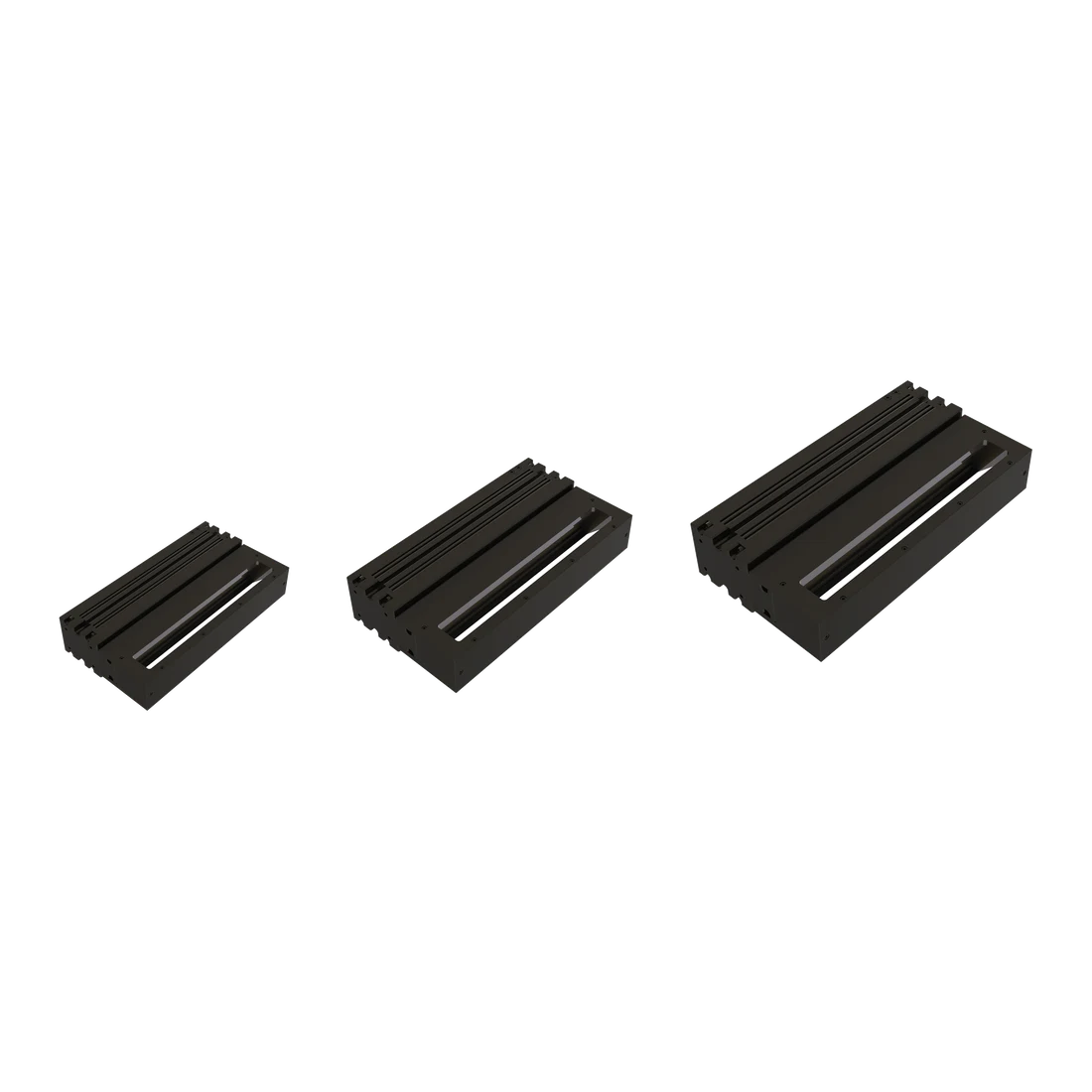

100 mm Coaxial Line Scan Light (LS-COX-100)

Line scan lights

700 mm Coaxial Line Scan Light (LS-COX-700)

Model LS-COX-700

ColourRed, Green, Blue, White
Emitting area700x20 mm
Size730x50x137.3 mm
Voltage48 V

$1,969.00

In stock - ships the same business day (5 available, order by 2 PM ET)

3.05 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 or a formal quote?

700 mm Coaxial Line Scan Light. High-speed, large-format, high-brightness coaxial line illumination with a high-efficiency optical structure. Highly directional light reduces divergence and suits both glossy and matte workpieces.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-COX-700

Light

Emitting area (mm)	700x20
Colours	Red, Green, Blue, White
Emitting width	20 mm

Electrical

Voltage (V)	48
Power R (W)	180
Power G/B/W (W)	210

Mechanical

Outer size L x W x H (mm)	730x50x137.3
Outer width	50 mm
Mounting	2X4-M4, 10 deep on end face (holes 28 apart)
Shipping weight (estimated)	3.05 kg

Mounting and drawing data

Height 137.3 mm per the specification table (the drawing and the shorter lengths show 134.3 mm).

Other models in the Coaxial line scan light (COX) series

See all 9 models

Model	Size / key data	Price	Availability	Link
LS-COX-100	100 mm	$389.00	10 in stock	View
LS-COX-150	150 mm	$519.00	16 in stock	View
LS-COX-200	200 mm	$649.00	13 in stock	View
LS-COX-250	250 mm	$779.00	14 in stock	View
LS-COX-300	300 mm	$919.00	17 in stock	View
LS-COX-400	400 mm	$1,179.00	14 in stock	View
LS-COX-600	600 mm	$1,709.00	15 in stock	View
LS-COX-900	900 mm	$2,499.00	17 in stock	View
