Line scan lights

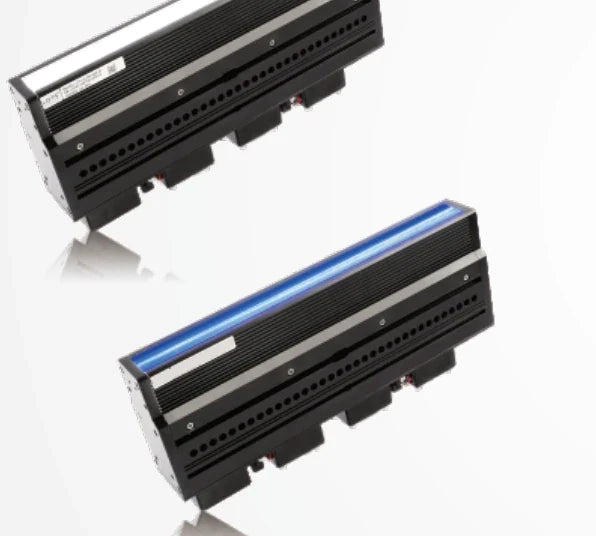

Ultra bright line scan light, fan cooled (3LINH)
- 10 models
- from $249.00
- Series LS-3LINH
The Ultra bright line scan light, fan cooled (3LINH) is a range of 10 line scan lights from LumaSpec Vision, from $249.00. It comes in 10 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 84 mm, 184 mm, 284 mm, 384 mm, 484 mm, 584 mm, 684 mm, 784 mm, 884 mm, 984 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Luminance at the light outlet can reach 2,000,000 lux
- Special heat-dissipation structure, convenient to replace
- Standard model adds an optical film to improve uniformity
- For applications with high luminance requirements
- Three types: standard (optical film, no suffix), high luminance (-N), high uniformity (-F); standard for general use, high uniformity for bright field, high luminance for dark field
- Customizable: heat dissipation method, length, colour & colour temperature, cable length, installation method
- The luminance of light outlet can reach 2,000,000LUX
- Adopt special structure design for heat-dissipation, convenient to replacement
Typical uses
- PCB surface inspection
- Li battery coating defect inspection
- Leather surface defect inspection
- Mobile screen film scratch inspection (dark/bright field)
- Li battery cell film defect inspection
All 10 models in the Ultra bright line scan light, fan cooled (3LINH)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-3LINH100 | 84 mm | 48W | 48 | DC 24V (max) | $249.00 | View |
| LS-3LINH200 | 184 mm | 120W | 144 | DC 24V (max) | $439.00 | View |
| LS-3LINH300 | 284 mm | 168W | 216 | DC 24V (max) | $629.00 | View |
| LS-3LINH400 | 384 mm | 240W | 288 | DC 24V (max) | $809.00 | View |
| LS-3LINH500 | 484 mm | 288W | 336 | DC 24V (max) | $999.00 | View |
| LS-3LINH600 | 584 mm | 336W | 384 | DC 24V (max) | $1,189.00 | View |
| LS-3LINH700 | 684 mm | 432W | 432 | DC 48V (max) | $1,379.00 | View |
| LS-3LINH800 | 784 mm | 480W | 480 | DC 48V (max) | $1,569.00 | View |
| LS-3LINH900 | 884 mm | 576W | 576 | DC 48V (max) | $1,759.00 | View |
| LS-3LINH1000 | 984 mm | 672W | 576 | DC 48V (max) | $1,949.00 | View |
