Line scan lights
Line light (HLSL)
- 10 models
- from $279.00
- Series LS-HLSL

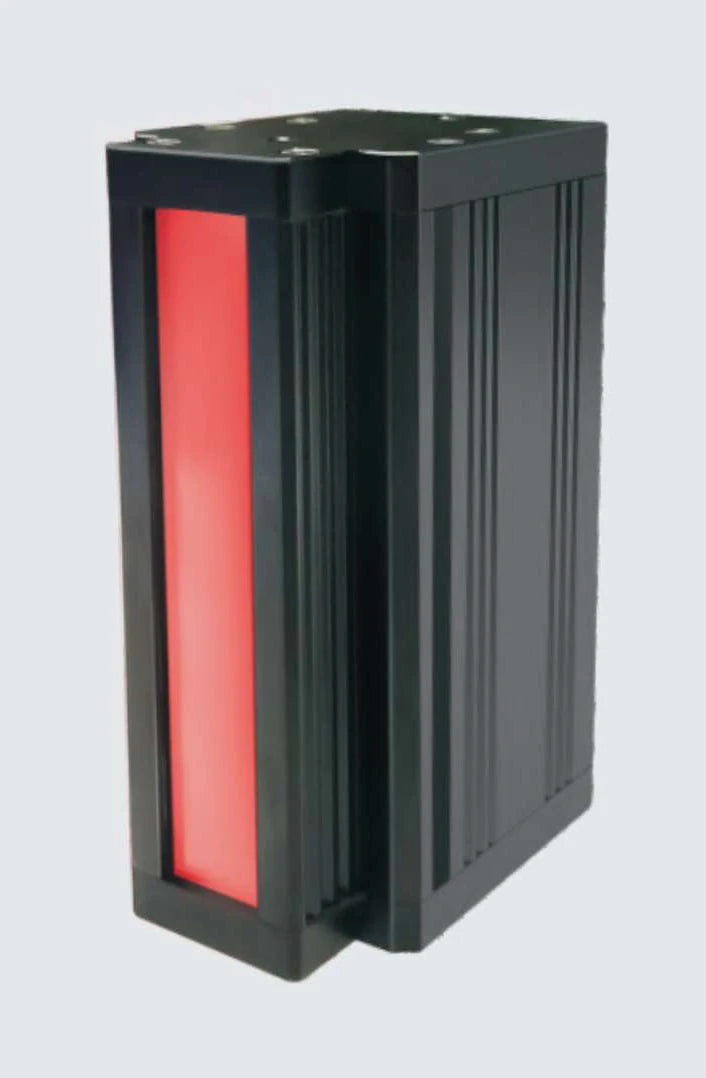

The Line light (HLSL) is a range of 10 line scan lights from LumaSpec Vision, from $279.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 100 x 18 mm, 200 x 18 mm, 300 x 18 mm, 400 x 18 mm, 500 x 18 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 48 V
Features
- High-speed, large-format line illumination at longer working distances
- Length up to 3 m
- P versions: fan cooled, high brightness, 48 V
Typical uses
- Defects on large-format print surfaces; large-size precision measurement; PCB print quality
- Cigarette pack shape and silk-screen appearance
- Parcel sorting; printed characters on cartons of large appliances such as fridges and washing machines
All 10 models in the Line light (HLSL)
| Link | |||||
|---|---|---|---|---|---|
| LS-HLSL10018 | 100 x 18 mm | L 100 x W 18 | 10 | $279.00 | View |
| LS-HLSL10018P | 100 x 18 mm | L 100 x W 18 | 40 | $279.00 | View |
| LS-HLSL20018 | 200 x 18 mm | L 200 x W 18 | 20 | $469.00 | View |
| LS-HLSL20018P | 200 x 18 mm | L 200 x W 18 | 80 | $469.00 | View |
| LS-HLSL30018 | 300 x 18 mm | L 300 x W 18 | 30 | $659.00 | View |
| LS-HLSL30018P | 300 x 18 mm | L 300 x W 18 | 120 | $659.00 | View |
| LS-HLSL40018 | 400 x 18 mm | L 400 x W 18 | 40 | $839.00 | View |
| LS-HLSL40018P | 400 x 18 mm | L 400 x W 18 | 160 | $839.00 | View |
| LS-HLSL50018 | 500 x 18 mm | L 500 x W 18 | 50 | $1,029.00 | View |
| LS-HLSL50018P | 500 x 18 mm | L 500 x W 18 | 200 | $1,029.00 | View |
