Representative photo of this series. Colour shown for illustration; the actual product may differ
Line scan lights
Coaxial line scan light, 840 x 142.1 x 56 mm (LS-4COHL800)
Model LS-4COHL800
- ColourRed, Blue, Green, White
- Emitting area800 x 24 mm
- SizeL840xW142.1xH56(mm)
- Voltage24V
- Power260W
$1,679.00
In stock - ships the same business day (5 available, order by 2 PM ET)
3.7 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Special cylindrical condenser lens is adopted to gather high brightness LEDs into a high brightness linear light; optimal uniform light for shiny and reflective surfaces.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-4COHL800 |
|---|---|
| Note | UV & IR light can be customized as required. |
| Viewport (camera hole) | 794 x 15 mm |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: FAN+, 4: FAN- |
|---|---|

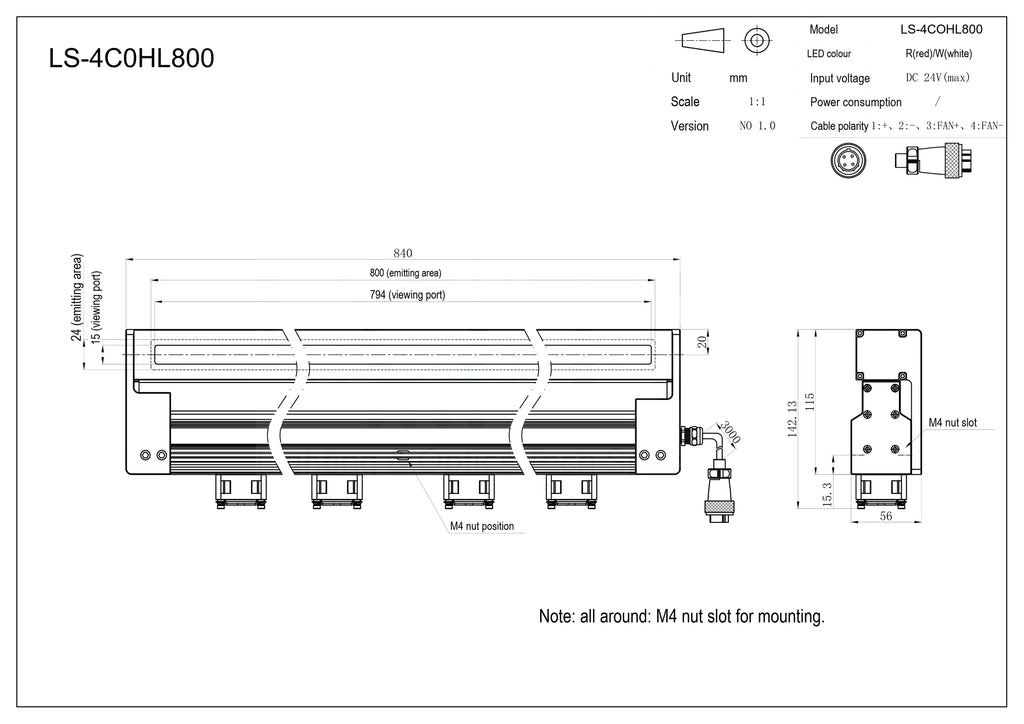

| Cable (mm) | 3000 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 800 x 24 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 260W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L840xW142.1xH56(mm) |
|---|---|
| Mounting | M4 nut slots on all sides for mounting |
| Shipping weight | 3.70 kg |
Other models in the Coaxial line scan light (4COHL) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-4COHL100 | Red, Blue, Green, White · 100 x 24 mm | $349.00 | 11 in stock | View |
| LS-4COHL200 | Red, Blue, Green, White · 200 x 24 mm | $539.00 | 12 in stock | View |
| LS-4COHL300 | Red, Blue, Green, White · 300 x 24 mm | $729.00 | 12 in stock | View |
| LS-4COHL400 | Red, Blue, Green, White · 400 x 24 mm | $919.00 | 11 in stock | View |
| LS-4COHL500 | Red, Blue, Green, White · 500 x 24 mm | $1,109.00 | 15 in stock | View |
| LS-4COHL600 | Red, Blue, Green, White · 600 x 24 mm | $1,299.00 | 14 in stock | View |
| LS-4COHL700 | Red, Blue, Green, White · 700 x 24 mm | $1,489.00 | 13 in stock | View |
| LS-4COHL900 | Red, Blue, Green, White · 900 x 24 mm | $1,869.00 | 17 in stock | View |
| LS-4COHL1000 | Red, Blue, Green, White · 1000 x 24 mm | $2,049.00 | 11 in stock | View |
