200 mm Mini Line Scan Light (LS-LNA-200)
Model LS-LNA-200
- ColourRed, Green, Blue, White
- Emitting area200x10 mm
- Size210x21x34 mm
- Voltage24 V
$279.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.4 kg shipping weight
Volume pricing, Net 30 or a formal quote?
200 mm Mini Line Scan Light. Compact line scan light (printed as 'Mine Line Scan Light') whose high-power LEDs and condenser structure give high brightness. Its small size suits installations with limited room.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LNA-200 |
|---|---|
| Outer cross-section WxH | 21x34 mm |
| Lead | 500 mm (drawings) |
Light
| Emitting area (mm) | 200x10 |
|---|---|
| Colours | Red, Green, Blue, White |
| Emitting width | 10 mm (emitting face 10.6 on drawings) |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 6 |
| Power G/B/W (W) | 8 |
Mechanical
| Outer size L x W x H (mm) | 210x21x34 |
|---|---|
| Mounting | Φ3.5 mounting holes on 37.5 mm pitch (100 mm pitch on LS-LNA-1100), 3.7 from base |
| Shipping weight (estimated) | 0.40 kg |
Photo shows a representative model of this series; see the specifications for this model.
Mounting and drawing data

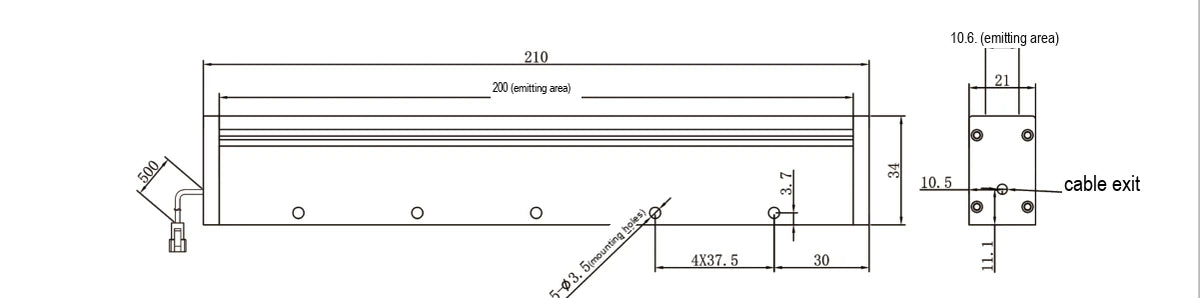

Drawing LS-LNA-200: 210 long; 5-Φ3.5 mounting holes, 4X37.5 pitch, 30 from end; 500 mm lead; end view 21 wide, 34 high, cable exit at 10.5 / 11.1
