Line scan lenses

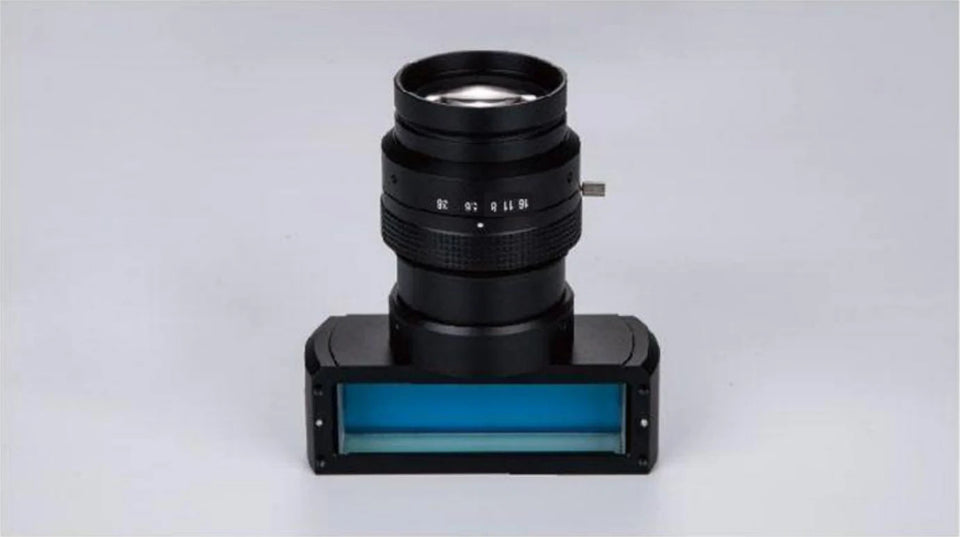

Coaxial illumination line scan lens (LS-LSL-S07)
- 6 models
- from $1,849.00
- Series LS-LSL-S07
The Coaxial illumination line scan lens (LS-LSL-S07) is a range of 6 line scan lenses from LumaSpec Vision, from $1,849.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 116 mm, V-Mount, 120 mm, V-Mount, 145 mm, V-Mount
- Mount
- V-mount
- Image circle
- 60-90 mm
- Focal length
- 100 mm +
- Sensor format
- Medium / large
Features
- Designed for coaxial lighting system
- Avoid the resolution deduction caused by using the beam splitter
- Achieve the detection requirements of high resolution and high contrast
- 16K/5µ and compatible with 16K/3.5µ and 12K/5µ line scan cameras
- With 30 x 80mm beam splitter
- Ultra-low optical distortion, less than 0.001%, or 1 pixel
- Big aperture, FNO. 3.8
Typical uses
- Industrial: height - detecting metal markings
- Electronic component: yes or no / identify - check the number of tiny chips and poor imprint
- Electronic component: blemish / stain - detecting camera defects
- Electronic equipment: yes or no / identify - detect poorly bundled / broken lead wires of motors
All 6 models in the Coaxial illumination line scan lens (LS-LSL-S07)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSL-0040 | 116 mm, V-Mount | 116 | 157.39 | F3.8-16 | $1,849.00 | View |
| LS-LSL-0041 | 116 mm, V-Mount | 116 | 171.54 | F4.3-16 | $1,849.00 | View |
| LS-LSL-0043 | 116 mm, V-Mount | 116 | 148.83 | F4.0-16 | $1,849.00 | View |
| LS-LSL-0044 | 120 mm, V-Mount | 120 | 135.95 | F4.0-16 | $1,859.00 | View |
| LS-LSL-0045 | 120 mm, V-Mount | 120 | 112.6 | F4.0-16 | $1,859.00 | View |
| LS-LSL-0042 | 145 mm, V-Mount | 145 | 127.3 | F4.3-16 | $1,969.00 | View |
