Coaxial illumination line scan lens
  • Coaxial illumination line scan lens

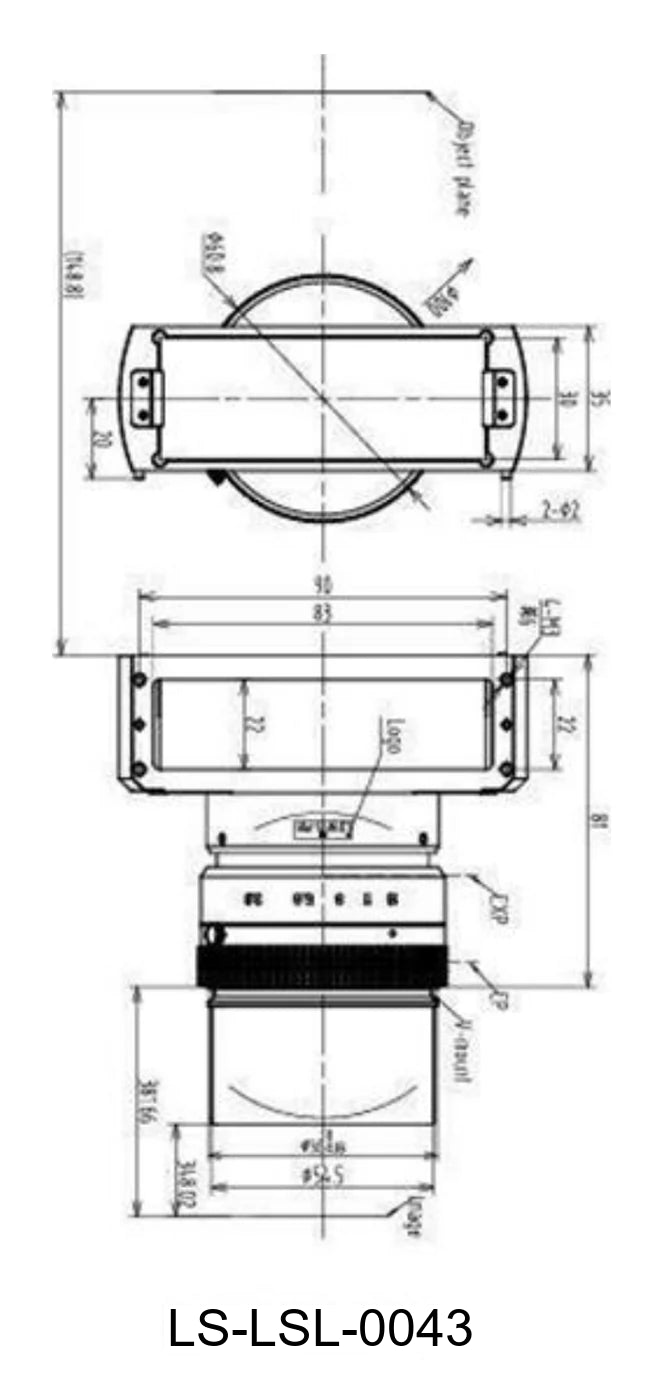

  • LS-LSL-0043 dimensions (mm)

Representative photo of this series

Line scan lenses

Coaxial illumination line scan lens, 116 mm, V-Mount, working distance 148.83 mm (LS-LSL-0043)

Model LS-LSL-0043

  • Focal length116 mm
  • Magnification1X-3X
  • MountV-mount
  • SensorLarge format
  • Working distance148.83 mm
  • ApertureF4.0-16
$1,849.00

Ships in 2-3 weeks

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Coaxial illumination line scan lens, 116 mm, V-Mount, working distance 148.83 mm (LS-LSL-0043)LS-LSL-0043

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Line scan lenses designed for coaxial lighting systems, avoiding the resolution loss caused by using a beam splitter; compatible with 16K/5µ, 16K/3.5µ and 12K/5µ line scan cameras, with a 30 x 80 mm beam splitter, optical distortion <0.001% (1 pixel) and F3.8 aperture.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSL-0043
EFL116mm
F/NO4.0-16
Conjugate distance611.85
Flange distance381.66

Optics

Max image sizedia. 82
Magnification range1X-3X
Distortion<0.001%
Standard magnification1.7X
Image size (dia.)dia. 82
Optical distortion0.001%
Working distance148.83
Focal length (mm)116
ApertureF4.0-16

Sensor and imaging

Central resolution200lp/mm
Sensor formatdia. 82 mm image circle

Light

Beam splitter30 x 80mm

Mechanical

MountV-Mount
Shipping weight0.94 kg
