Line scan lenses

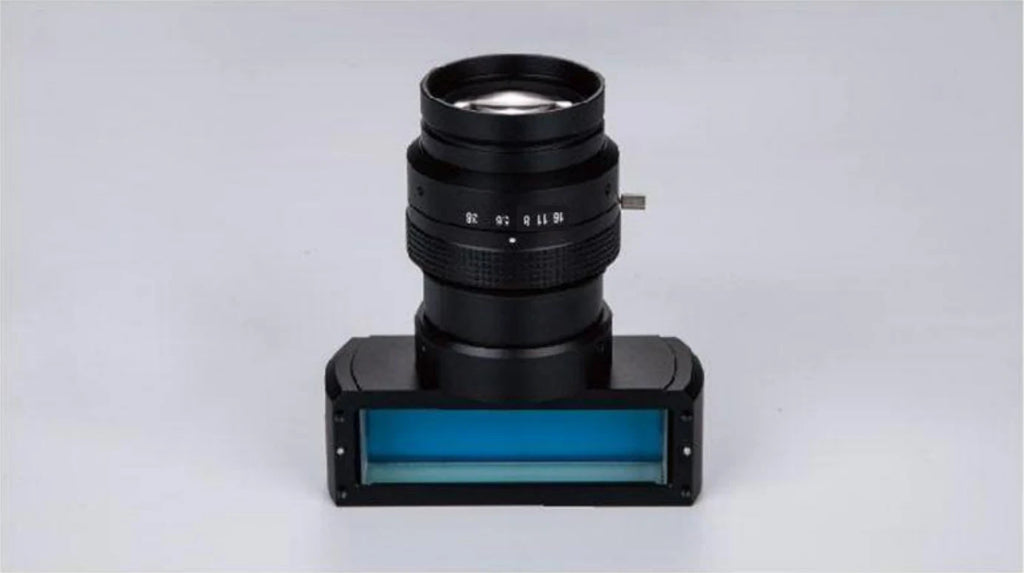

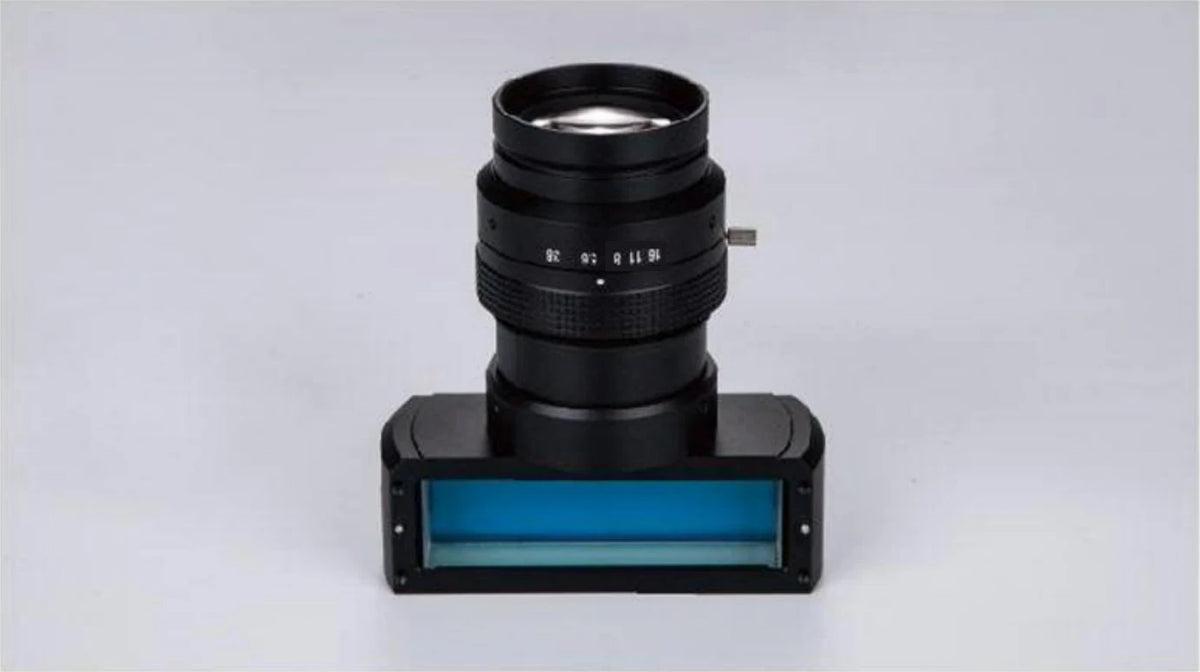

Coaxial illumination line scan lens, 120 mm, V-Mount, working distance 135.95 mm (LS-LSL-0044)

Model LS-LSL-0044

Focal length120 mm
Magnification1X-3X
MountV-mount
SensorLarge format
Working distance135.95 mm
ApertureF4.0-16

$1,859.00

Ships in 2-3 weeks

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Line scan lenses designed for coaxial lighting systems, avoiding the resolution loss caused by using a beam splitter; compatible with 16K/5µ, 16K/3.5µ and 12K/5µ line scan cameras, with a 30 x 80 mm beam splitter, optical distortion <0.001% (1 pixel) and F3.8 aperture.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-LSL-0044
EFL	120mm
F/NO	4.0-16
Conjugate distance	641.94
Flange distance	424.66

Optics

Max image size	dia. 82
Magnification range	1X-3X
Distortion	<0.001%
Standard magnification	2X
Image size (dia.)	dia. 82
Optical distortion	0.0005%
Working distance	135.95
Focal length (mm)	120
Aperture	F4.0-16

Sensor and imaging

Central resolution	200lp/mm
Sensor format	dia. 82 mm image circle

Light

Beam splitter	30 x 80mm

Mechanical

Mount	V-Mount
Shipping weight	0.94 kg

Downloads

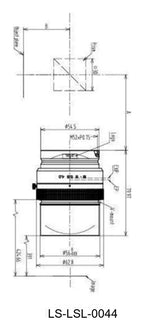

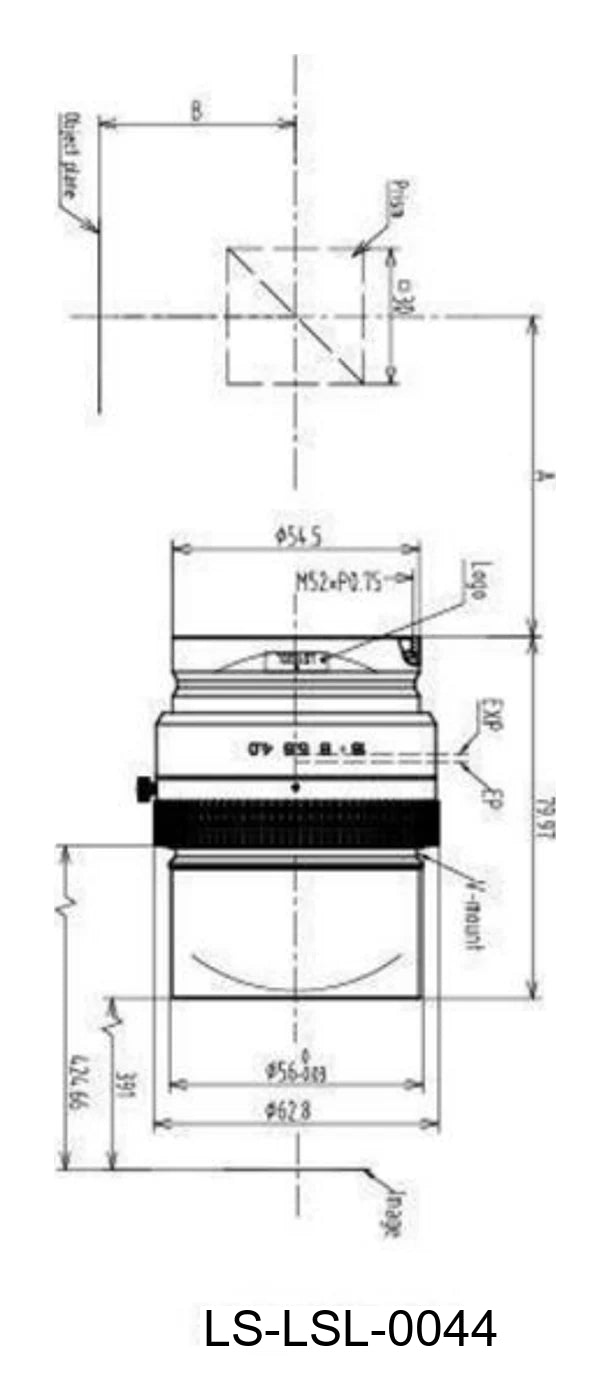

Datasheet (PDF)LS-LSL-0044 · 1009 KB

Features

Designed for coaxial lighting system
Avoid the resolution deduction caused by using the beam splitter
Achieve the detection requirements of high resolution and high contrast
16K/5µ and compatible with 16K/3.5µ and 12K/5µ line scan cameras
With 30 x 80mm beam splitter
Ultra-low optical distortion, less than 0.001%, or 1 pixel
Big aperture, FNO. 3.8

Applications

Industrial: height - detecting metal markings
Electronic component: yes or no / identify - check the number of tiny chips and poor imprint
Electronic component: blemish / stain - detecting camera defects
Electronic equipment: yes or no / identify - detect poorly bundled / broken lead wires of motors

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Coaxial illumination line scan lens (LS-LSL-S07) series

See all 6 models
