Line scan lenses

Coaxial illumination line scan lens, 145 mm, V-Mount (LS-LSL-0042)

Model LS-LSL-0042

Focal length145 mm
Magnification1X-3X
MountV-mount
SensorLarge format
Working distance127.3 mm
ApertureF4.3-16

$1,969.00

Ships in 2-3 weeks

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Line scan lenses designed for coaxial lighting systems, avoiding the resolution loss caused by using a beam splitter; compatible with 16K/5µ, 16K/3.5µ and 12K/5µ line scan cameras, with a 30 x 80 mm beam splitter, optical distortion <0.001% (1 pixel) and F3.8 aperture.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-LSL-0042
EFL	145mm
F/NO	4.3-16
Conjugate distance	592.1
Flange distance	351.96

Optics

Max image size	dia. 82
Magnification range	1X-3X
Distortion	<0.001%
Standard magnification	1.5X
Image size (dia.)	dia. 82
Optical distortion	0.001%
Working distance	127.3
Focal length (mm)	145
Aperture	F4.3-16

Sensor and imaging

Central resolution	200lp/mm
Sensor format	dia. 82 mm image circle

Light

Beam splitter	30 x 80mm

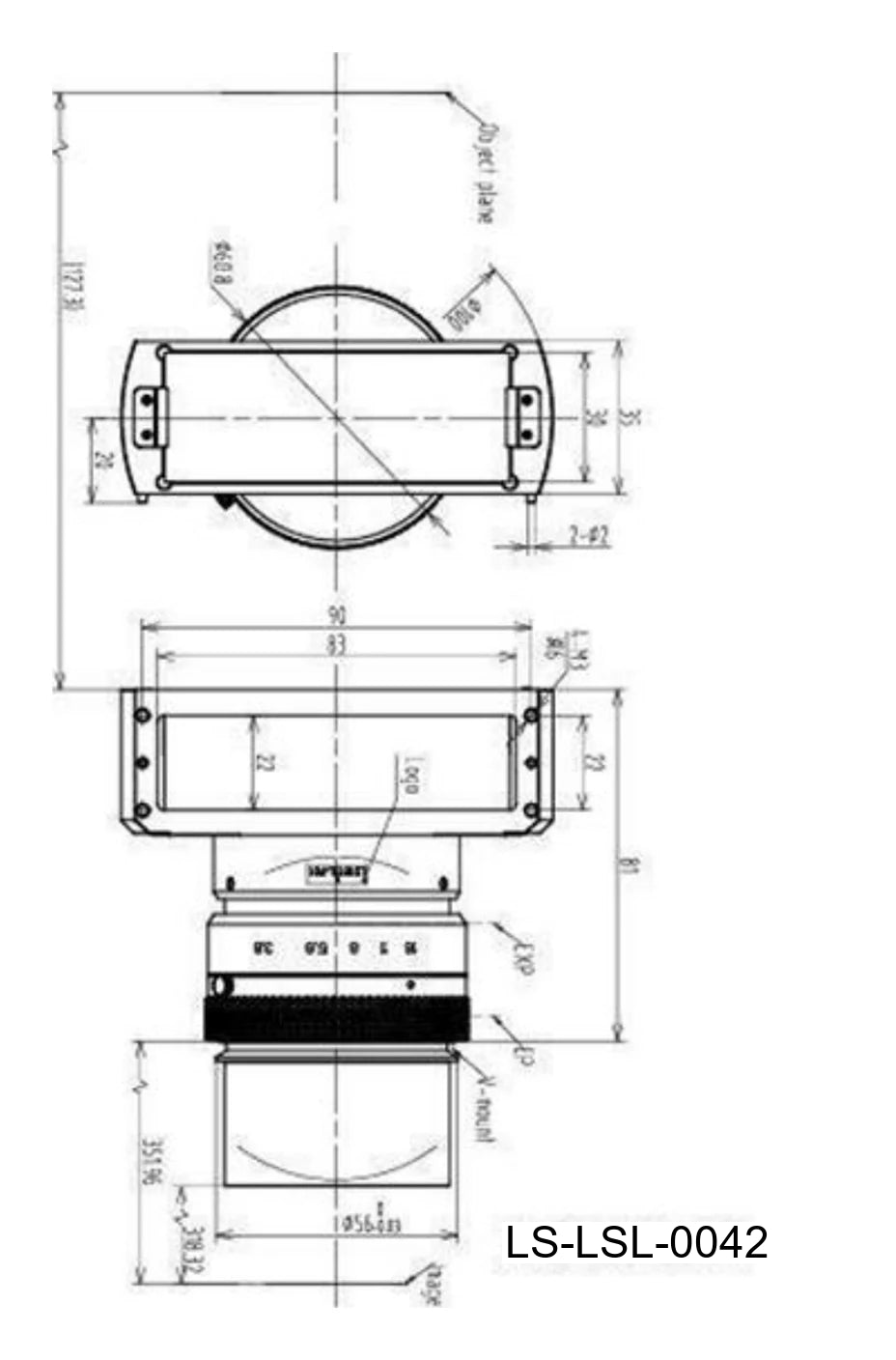

Mechanical

Mount	V-Mount
Shipping weight	0.94 kg

Downloads

Datasheet (PDF)LS-LSL-0042 · 1000 KB

Features

Designed for coaxial lighting system
Avoid the resolution deduction caused by using the beam splitter
Achieve the detection requirements of high resolution and high contrast
16K/5µ and compatible with 16K/3.5µ and 12K/5µ line scan cameras
With 30 x 80mm beam splitter
Ultra-low optical distortion, less than 0.001%, or 1 pixel
Big aperture, FNO. 3.8

Applications

Industrial: height - detecting metal markings
Electronic component: yes or no / identify - check the number of tiny chips and poor imprint
Electronic component: blemish / stain - detecting camera defects
Electronic equipment: yes or no / identify - detect poorly bundled / broken lead wires of motors
