Line scan lenses

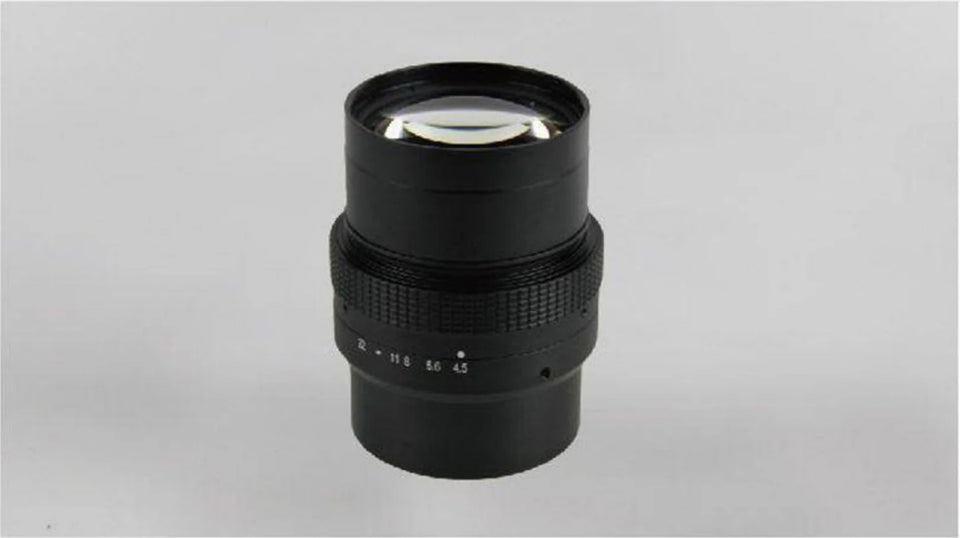

LS-LSL-S02 line scan lens
- 7 models
- from $2,779.00
- Series LS-LSL-S02
The LS-LSL-S02 line scan lens is a range of 7 line scan lenses from LumaSpec Vision, from $2,779.00. It comes in 1 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 116 mm, V-Mount
- Mount
- V-mount
- Image circle
- 60-90 mm
- Focal length
- 100 mm +
- Sensor format
- Medium / large
Features
- Max image circle is up to dia. 66
- Suitable for 8k/12k line scan cameras
- Standard magnification from 0.2x to 1.24x
- Big aperture, FNO.4.5
- Ultra-low optical distortion
Typical uses
- Industrial: height - detecting metal markings
- Liquid crystal, semiconductor: count - SD card number calculation
- Liquid crystal, semiconductor: geometrical measurement - detect IC wire bending
All 7 models in the LS-LSL-S02 line scan lens
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSL-0001 | 652.4 | 824.9 | 122.8 | <0.01% | $2,779.00 | View |
| LS-LSL-0002 | 415.1 | 599.7 | 134.9 | <0.005% | $2,779.00 | View |
| LS-LSL-0003 | 291.7 | 491 | 149.6 | <0.01% | $2,779.00 | View |
| LS-LSL-0004 | 209.8 | 429.85 | 170.3 | <0.005% | $2,779.00 | View |
| LS-LSL-0005 | 203.8 | 434.66 | 181.2 | <0.005% | $2,779.00 | View |
| LS-LSL-0006 | 164.2 | 400.56 | 186.7 | <0.05% | $2,779.00 | View |
| LS-LSL-0007 | 149.9 | 434.66 | 232.2 | <0.005% | $2,779.00 | View |
