Line scan lenses

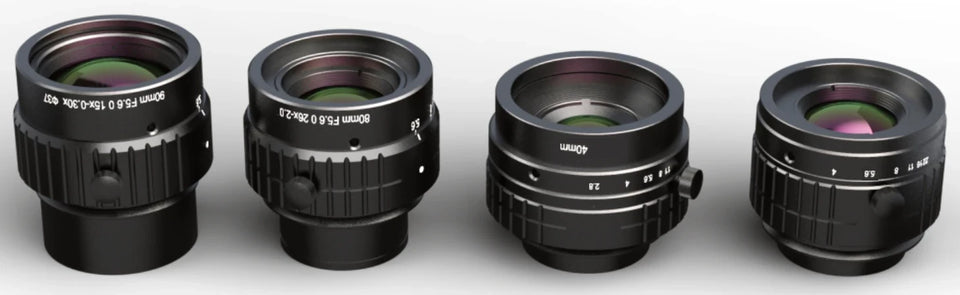

8K high resolution line scan lens (LS-LSL-S10)
- 7 models
- from $1,989.00
- Series LS-LSL-S10
The 8K high resolution line scan lens (LS-LSL-S10) is a range of 7 line scan lenses from LumaSpec Vision, from $1,989.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 35 mm, M42, M58, M7-mount, 40 mm, 40 mm, M42, M58, M7-mount, 60 mm, 60 mm, M42, M58, M7-mount, 80 mm, M58, M72, M9-mount, 90 mm, M58, M72, M9-mount
- Mount
- M42, M58
- Focal length
- 25-50 mm, 50-100 mm
- Sensor format
- 4/3" - APS-C, APS-H / Full frame, Medium / large
Features
- Large image sensor can cover dia. 62mm image plane
- Supporting 8K 5um / 7um high resolution line scan camera
- V mount design, stable, reliable and flexible
- Have 0.01 - 3 double (magnification), multiple models
- Large image sensor can coverφ62mm image plane
- Supporting 8K 5 μm/ 7μm high resolution line scan camera
- Have 0.01 - 3 double, multiple models
Typical uses
- Printing inspection
- Glass cover-plate inspection
- AOI
- Photovoltaic inspection
All 7 models in the 8K high resolution line scan lens (LS-LSL-S10)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSL-0063 | 35 mm, M42, M58, M7-mount | dia. 28 mm | 35 | 0.04-0.1 | $1,989.00 | View |
| LS-LSL-0064 | 40 mm, M42, M58, M7-mount | dia. 43 mm | 40 | 0.1-0.3 | $2,009.00 | View |
| LS-LSL-0065 | 40 mm | dia. 60 mm | 40 | 0.04-0.32 | $2,009.00 | View |
| LS-LSL-0066 | 60 mm, M42, M58, M7-mount | dia. 62 mm | 60 | 0.04-0.33 | $2,099.00 | View |
| LS-LSL-0067 | 60 mm | dia. 82 mm | 60 | 0.04-0.32 | $2,099.00 | View |
| LS-LSL-0068 | 80 mm, M58, M72, M9-mount | dia. 62 mm | 80 | 0.2-3 | $2,179.00 | View |
| LS-LSL-0069 | 90 mm, M58, M72, M9-mount | dia. 82 mm | 90 | 0.15-3 | $2,229.00 | View |
