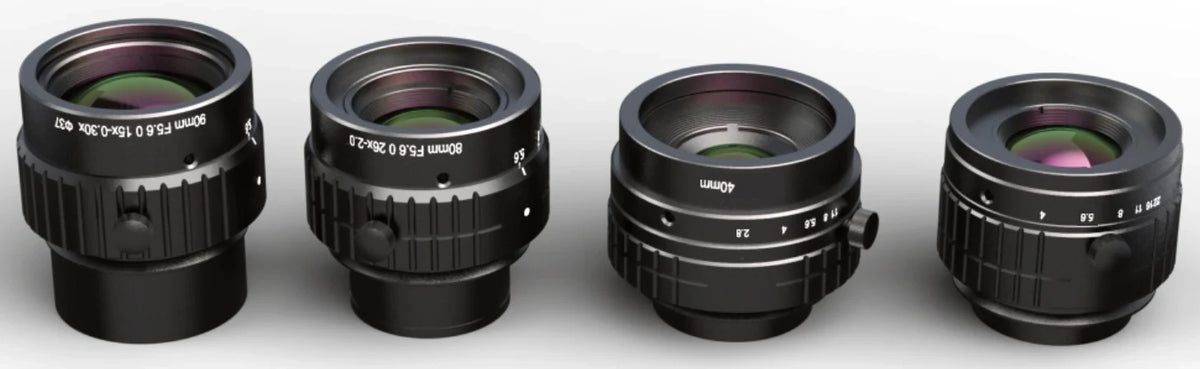

Representative photo of this series
Line scan lenses
8K high resolution line scan lens, 40 mm, M42, M58, M7-mount (LS-LSL-0064)
Model LS-LSL-0064
- Focal length40 mm
- Magnification0.1-0.3x
- MountM42
- SensorFull frame
- Working distance424.0 mm
- Aperture1:2.8~11
$2,009.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8K high resolution line scan lenses: large image sensor coverage up to dia. 62mm image plane, for 8K 5um / 7um line scan cameras, V mount design, magnification 0.01-3X across models.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSL-0064 |
|---|---|
| Max. supporting target surface (mm) | dia. 43 |
| WD (mm) | 424 |
| Conjugate distance (mm) | 486.4 |
Optics
| Centre magnification | 0.1 |
|---|---|
| Focal length (mm) | 40 |
| Magnification (x) | 0.1-0.3 |
| Aperture F/# | 1:2.8~11 |
| Distortion (%) | <0.5 |
| Working distance (mm) | 424.0 |
Sensor and imaging
| Resolution | 8K line scan |
|---|---|
| Image space resolution (μm) | 5 |
| Sensor format | dia. 43 mm |
Light
| Relative illuminance (%) | >35 |
|---|
Mechanical
| Mount | M42, M58, M7 |
|---|---|
| Shipping weight | 0.94 kg |
Other models in the 8K high resolution line scan lens (LS-LSL-S10) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSL-0063 | 35 mm, M42, M58, M7-mount | $1,989.00 | 2 in stock | View |
| LS-LSL-0065 | 40 mm | $2,009.00 | 5 in stock | View |
| LS-LSL-0066 | 60 mm, M42, M58, M7-mount | $2,099.00 | 5 in stock | View |
| LS-LSL-0067 | 60 mm | $2,099.00 | 5 in stock | View |
| LS-LSL-0068 | 80 mm, M58, M72, M9-mount | $2,179.00 | 5 in stock | View |
| LS-LSL-0069 | 90 mm, M58, M72, M9-mount | $2,229.00 | 3 in stock | View |
