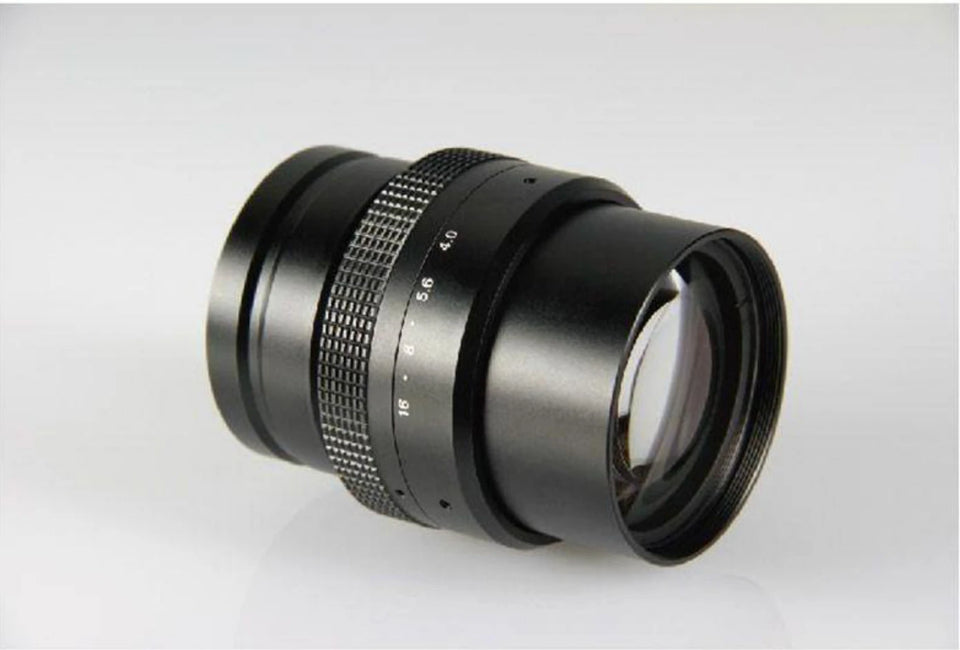

16K 5µ line scan lens (LS-LSL-S04)

Line scan lenses

16K 5µ line scan lens (LS-LSL-S04)

  • 14 models
  • from $3,209.00
  • Series LS-LSL-S04

The 16K 5µ line scan lens (LS-LSL-S04) is a range of 14 line scan lenses from LumaSpec Vision, from $3,209.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 14 models Series datasheet (PDF)

The series at a glance

Sizes / versions
116 mm, V-Mount, 120 mm, V-Mount, 147.6 mm, V-Mount
Mount
V-mount
Image circle
60-90 mm
Focal length
100 mm +
Sensor format
Medium / large

Features

  • Specially designed for 16K5µ super high resolution line scan camera
  • Lens real resolution is up to 160lp/mm
  • Provide higher contrast for cameras
  • Max image circle is up to 82mm
  • Compatible with 16K3.5µ/12K5µ camera
  • Optical distortion is <1 pixel size
  • Magnification from 0.26x-3x

Typical uses

  • Industrial: height - detecting metal markings
  • Electronic component: yes or no / identify - check the number of tiny chips and poor imprint
  • Electronic component: blemish / stain - detecting camera defects
  • Electronic equipment: yes or no / identify - detect poorly bundled / broken lead wires of motors

All 14 models in the 16K 5µ line scan lens (LS-LSL-S04)

Link
LS-LSL-0025116 mm, V-Mountdia. 82 mm image circle116663.34$3,209.00View
LS-LSL-0028116 mm, V-Mountdia. 82 mm image circle116245.9$3,209.00View
LS-LSL-0030116 mm, V-Mountdia. 82 mm image circle116204.1$3,209.00View
LS-LSL-0031116 mm, V-Mountdia. 82 mm image circle116199$3,209.00View
LS-LSL-0020116 mm, V-Mountdia. 84 mm image circle116156.3$3,209.00View
LS-LSL-0021116 mm, V-Mountdia. 84 mm image circle116143.9$3,209.00View
LS-LSL-0022116 mm, V-Mountdia. 84 mm image circle116137.8$3,209.00View
LS-LSL-0023116 mm, V-Mountdia. 84 mm image circle116127.2$3,209.00View
LS-LSL-0026116 mm, V-Mountdia. 84 mm image circle116111.4$3,209.00View
LS-LSL-0018120 mm, V-Mountdia. 82 mm image circle120534.64$3,229.00View
LS-LSL-0019120 mm, V-Mountdia. 82 mm image circle120390.66$3,229.00View
LS-LSL-0024120 mm, V-Mountdia. 82 mm image circle120166.35$3,229.00View
LS-LSL-0027120 mm, V-Mountdia. 82 mm image circle120143.02$3,229.00View
LS-LSL-0029147.6 mm, V-Mountdia. 82 mm image circle147.6321.2$3,349.00View
