16K 5µ line scan lens
  • 16K 5µ line scan lens

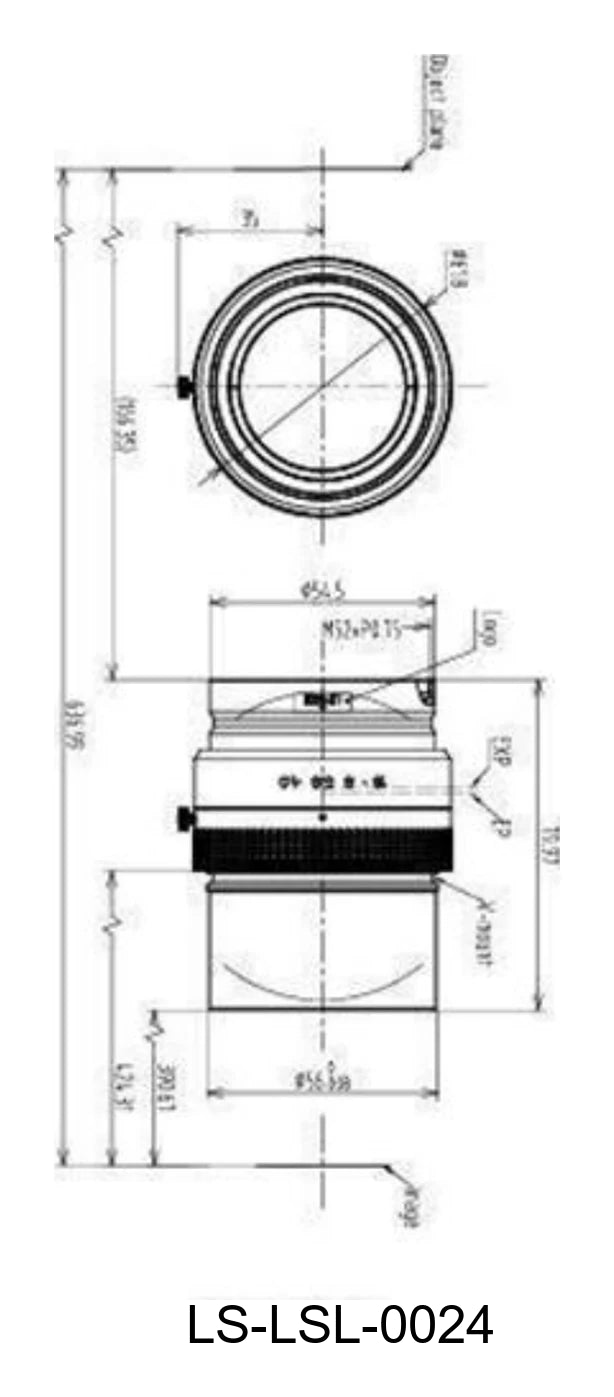

  • LS-LS1620B dimensions (mm)

Representative photo of this series

Line scan lenses

16K 5µ line scan lens, 120 mm, V-Mount, working distance 166.35 mm (LS-LSL-0024)

Model LS-LSL-0024

  • Focal length116mm
  • Magnification0.26X-3X
  • MountV-mount
  • SensorLarge format
  • Working distance166.35 mm
  • ApertureF4.0-16
$3,229.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

16K 5µ line scan lens, 120 mm, V-Mount, working distance 166.35 mm (LS-LSL-0024)LS-LSL-0024

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Line scan lenses specially designed for 16K 5 µm super-high-resolution large-format line scan cameras; lens resolution up to 160 lp/mm, max image circle up to 82 mm, compatible with 16K 3.5 µ / 12K 5 µ cameras, optical distortion <1 pixel, magnification 0.26x-3x.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSL-0024
Line scan format16K 5µ
EFL120mm
F/NO4.0-16
Conjugate distance636.99
Flange distance424.31

Optics

Focal length116mm
Magnification range0.26X-3X
Distortion<0.001%
Standard magnification2X
Image size (dia.)dia. 82
Optical distortion0.002%
Working distance166.35
Focal length (mm)120
ApertureF4.0-16

Sensor and imaging

Central resolution200lp/mm
Sensor formatdia. 82 mm image circle

Mechanical

MountV-Mount
Shipping weight0.94 kg
