Smart cameras & vision sensors

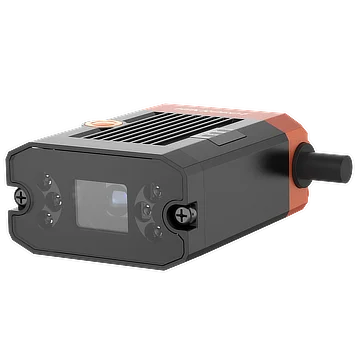

SC2000 Series Vision Sensor
- 65 models
- from $589.00
- Series HIK-SC2000
The SC2000 Series Vision Sensor is a range of 65 smart cameras & vision sensors from Hikrobot, from $589.00. It comes in 34 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.4 MP, 1/2.9", 12.4 mm lens, Color, 0.4 MP, 1/2.9", 12.4 mm lens, Mono, 0.4 MP, 1/2.9", 14.8 mm lens, Color, 0.4 MP, 1/2.9", 14.8 mm lens, Mono, 0.4 MP, 1/2.9", 6.72 mm lens, Mono, 0.4 MP, 1/2.9", 8 mm lens, Color, 0.4 MP, 1/2.9", 8 mm lens, Mono, 1.3 MP, 1/4", 12 mm lens, Color, 1.3 MP, 1/4", 12 mm lens, Mono, 1.3 MP, 1/4", 16 mm lens, Color, 1.3 MP, 1/4", 16 mm lens, Mono, 1.3 MP, 1/4", 5 mm lens, Color, 1.3 MP, 1/4", 5 mm lens, Mono, 1.4 MP, 1/2.9", 12.4 mm lens, Color, 1.4 MP, 1/2.9", 12.4 mm lens, Mono, 1.4 MP, 1/2.9", 14.8 mm lens, Color and 18 more
- Interface
- GigE
- Resolution
- Up to 3 MP
- Shutter
- Global, Rolling
- Colour
- Color, Mono
- Lens mount
- M8, M10, M12
- Series
- SC2000 series
- Sensor format
- 1/2.5" and smaller
Features
- Adopts embedded hardware platform for high-speed image processing.
- Adopts built-in positioning and measurement algorithms to for counting, existence, measurement detection, and recognition.
- Multiple IO interfaces for input and output signals.
- Multiple indicators for displaying device status.
- Adopts light source to ensure uniform brightness in the illuminated area.
- Supports multiple communication protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, Ethernet/IP, etc.
- Adopts built-in positioning and measurement algorithms for counting, existence, measurement detection.
- Supports multiple communication protocols, including RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes.
All 65 models in the SC2000 Series Vision Sensor
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-SC2004EM-08S-WBN | 0.4 MP, 1/2.9", 8 mm lens, Mono | 704 × 540 | 60 fps | Fast Ethernet (100 Mbit/s) | $589.00 | View |
| MV-SC2016EM-08S-WBN | 1.4 MP, 1/2.9", 8 mm lens, Mono | 1408 × 1024 | 60 fps | Fast Ethernet (100 Mbit/s) | $659.00 | View |
| MV-SC2004EM-06S-WBN-Mini | 0.4 MP, 1/2.9", 6.72 mm lens, Mono | 704 × 540 | 60 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2016EM-06S-WBN-Mini | 1.4 MP, 1/2.9", 6.72 mm lens, Mono | 1408 × 1024 | 60 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2004EM-12S-WBN | 0.4 MP, 1/2.9", 12.4 mm lens, Mono | 704 × 540 | 60 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2004EM-15S-WBN | 0.4 MP, 1/2.9", 14.8 mm lens, Mono | 704 × 540 | 60 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2004EC-08S-WBN | 0.4 MP, 1/2.9", 8 mm lens, Color | 704 × 540 | 60 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2004EC-12S-WBN | 0.4 MP, 1/2.9", 12.4 mm lens, Color | 704 × 540 | 60 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2004EC-15S-WBN | 0.4 MP, 1/2.9", 14.8 mm lens, Color | 704 × 540 | 60 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2016EM-12S-WBN | 1.4 MP, 1/2.9", 12.4 mm lens, Mono | 1408 × 1024 | 60 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2016EM-15S-WBN | 1.4 MP, 1/2.9", 14.8 mm lens, Mono | 1408 × 1024 | 60 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2016EC-08S-WBN | 1.4 MP, 1/2.9", 8 mm lens, Color | 1408 × 1024 | 60 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2016EC-12S-WBN | 1.4 MP, 1/2.9", 12.4 mm lens, Color | 1408 × 1024 | 60 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2016EC-15S-WBN | 1.4 MP, 1/2.9", 14.8 mm lens, Color | 1408 × 1024 | 60 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2013XC-05M-WBN | 1.3 MP, 1/4", 5 mm lens, Color | 1280 × 1024 | 55 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2013XC-12M-WBN | 1.3 MP, 1/4", 12 mm lens, Color | 1280 × 1024 | 55 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2013XC-16M-WBN | 1.3 MP, 1/4", 16 mm lens, Color | 1280 × 1024 | 55 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2013XM-05M-WBN | 1.3 MP, 1/4", 5 mm lens, Mono | 1280 × 1024 | 55 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2013XM-12M-WBN | 1.3 MP, 1/4", 12 mm lens, Mono | 1280 × 1024 | 55 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2013XM-16M-WBN | 1.3 MP, 1/4", 16 mm lens, Mono | 1280 × 1024 | 55 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2023XC-05M-WBN | 2.5 MP, 1/3.52", 5 mm lens, Color | 1920 × 1280 | 75 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2023XC-12M-WBN | 2.5 MP, 1/3.52", 12 mm lens, Color | 1920 × 1280 | 75 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2023XC-16M-WBN | 2.5 MP, 1/3.52", 16 mm lens, Color | 1920 × 1280 | 75 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2023XM-05M-WBN | 2.5 MP, 1/3.52", 5 mm lens, Mono | 1920 × 1280 | 75 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2023XM-12M-WBN | 2.5 MP, 1/3.52", 12 mm lens, Mono | 1920 × 1280 | 75 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2023XM-16M-WBN | 2.5 MP, 1/3.52", 16 mm lens, Mono | 1920 × 1280 | 75 fps | Fast Ethernet (100 Mbit/s) | $709.00 | View |
| MV-SC2016EC-03S-MED | 1.4 MP, 1/2.9", 3 mm lens, Color | 1408 × 1024 | 40 fps | Fast Ethernet(100Mbit/s) | $709.00 | View |
| MV-SC2016EC-06S-MED | 1.4 MP, 1/2.9", 6 mm lens, Color | 1408 × 1024 | 40 fps | Fast Ethernet(100Mbit/s) | $709.00 | View |
| MV-SC2016EC-08S-WBN-S | 1.4 MP, 1/2.9", 8 mm lens, Color | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $709.00 | View |
| MV-SC2016EM-06S-WBN-S | 1.4 MP, 1/2.9", 6.72 mm lens, Mono | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $709.00 | View |
| HY-ZXJ6163C-W | 1.4 MP, 1/2.9", 3 mm lens, Color | 1408 × 1024 | 40 fps | Fast Ethernet(100Mbit/s) | $1,699.00 | View |
| HY-ZXJ6166C-W | 1.4 MP, 1/2.9", 6 mm lens, Color | 1408 × 1024 | 40 fps | Fast Ethernet(100Mbit/s) | $1,699.00 | View |
| MV-SCB007EC-12S-WBN | 1.4 MP, 1/2.9", 12.4 mm lens, Color | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00quote | View |
| MV-SCB007EC-08S-WBN | 1.4 MP, 1/2.9", 8 mm lens, Color | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00quote | View |
| MV-SCB007EC-15S-WBN | 1.4 MP, 1/2.9", 14.8 mm lens, Color | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00quote | View |
| MV-SCB007EM-08S-WBN | 1.4 MP, 1/2.9", 8 mm lens, Mono | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00quote | View |
| MV-SCB007EM-15S-WBN | 1.4 MP, 1/2.9", 14.8 mm lens, Mono | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00quote | View |
| MV-SCB007EM-12S-WBN | 1.4 MP, 1/2.9", 12.4 mm lens, Mono | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00quote | View |
| MV-SCB003EC-12S-WBN | 0.4 MP, 1/2.9", 12.4 mm lens, Color | 704 × 540 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00quote | View |
| MV-SCB003EC-08S-WBN | 0.4 MP, 1/2.9", 8 mm lens, Color | 704 × 540 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00quote | View |
| MV-SCB003EC-15S-WBN | 0.4 MP, 1/2.9", 14.8 mm lens, Color | 704 × 540 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00quote | View |
| MV-SCB003EM-15S-WBN | 0.4 MP, 1/2.9", 14.8 mm lens, Mono | 704 × 540 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00quote | View |
| MV-SCB003EM-12S-WBN | 0.4 MP, 1/2.9", 12.4 mm lens, Mono | 704 × 540 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00quote | View |
| MV-SCB003EM-08S-WBN | 0.4 MP, 1/2.9", 8 mm lens, Mono | 704 × 540 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00quote | View |
| MV-SCB003EM-06S-WBN | 0.4 MP, 1/2.9", 6.72 mm lens, Mono | 704 × 540 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00quote | View |
| MV-SCB007EM-06S-WBN | 1.4 MP, 1/2.9", 6.72 mm lens, Mono | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00quote | View |
| MV-SCP16M-H-WX-08S-WBN | 1.4 MP, 1/2.9", 8 mm lens, Mono | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00 | View |
| MV-SCP16M-H-WX-12S-WBN | 1.4 MP, 1/2.9", 12.4 mm lens, Mono | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00 | View |
| MV-SCP16M-H-WX-15S-WBN | 1.4 MP, 1/2.9", 14.8 mm lens, Mono | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00 | View |
| MV-SCP16C-H-WX-08S-WBN | 1.4 MP, 1/2.9", 8 mm lens, Color | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00 | View |
| MV-SCP16C-H-WX-12S-WBN | 1.4 MP, 1/2.9", 12.4 mm lens, Color | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00 | View |
| MV-SCP16C-H-WX-15S-WBN | 1.4 MP, 1/2.9", 8 mm lens, Color | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00 | View |
| MV-SCP16C-H-WX-08S-WBN-S | 1.4 MP, 1/2.9", 8 mm lens, Color | 1408 × 1024 | 60 fps | Fast Ethernet(100Mbit/s) | $1,989.00 | View |
| MV-SCB008XC-12M-WBN | 2.5 MP, 1/3.52", 12 mm lens, Color | 1920 × 1280 | 75 fps | Fast Ethernet(100 Mbit/s) | $1,989.00quote | View |
| MV-SCB008XC-05M-WBN | 2.5 MP, 1/3.52", 5 mm lens, Color | 1920 × 1280 | 75 fps | Fast Ethernet(100 Mbit/s) | $1,989.00quote | View |
| MV-SCB008XC-16M-WBN | 2.5 MP, 1/3.52", 16 mm lens, Color | 1920 × 1280 | 75 fps | Fast Ethernet(100 Mbit/s) | $1,989.00quote | View |
| MV-SCB008XM-12M-WBN | 2.5 MP, 1/3.52", 12 mm lens, Mono | 1920 × 1280 | 75 fps | Fast Ethernet(100 Mbit/s) | $1,989.00quote | View |
| MV-SCB008XM-16M-WBN | 2.5 MP, 1/3.52", 16 mm lens, Mono | 1920 × 1280 | 75 fps | Fast Ethernet(100 Mbit/s) | $1,989.00quote | View |
| MV-SCB008XM-05M-WBN | 2.5 MP, 1/3.52", 5 mm lens, Mono | 1920 × 1280 | 75 fps | Fast Ethernet(100 Mbit/s) | $1,989.00quote | View |
| MV-SCB006XC-05M-WBN | 2.1 MP, 1/2.8", 5 mm lens, Color | 1920 × 1080 | 30 fps | Fast Ethernet(100 Mbit/s) | $1,989.00quote | View |
| MV-SCB006XC-12M-WBN | 2.1 MP, 1/2.8", 12 mm lens, Color | 1920 × 1080 | 30 fps | Fast Ethernet(100 Mbit/s) | $1,989.00quote | View |
| MV-SCB006XC-16M-WBN | 2.1 MP, 1/2.8", 16 mm lens, Color | 1920 × 1080 | 30 fps | Fast Ethernet(100 Mbit/s) | $1,989.00quote | View |
| MV-SCB006XM-16M-WBN | 2.1 MP, 1/2.8", 16 mm lens, Mono | 1920 × 1080 | 30 fps | Fast Ethernet(100 Mbit/s) | $1,989.00quote | View |
| MV-SCB006XM-12M-WBN | 2.1 MP, 1/2.8", 12 mm lens, Mono | 1920 × 1080 | 30 fps | Fast Ethernet(100 Mbit/s) | $1,989.00quote | View |
| MV-SCB006XM-05M-WBN | 2.1 MP, 1/2.8", 5 mm lens, Mono | 1920 × 1080 | 30 fps | Fast Ethernet(100 Mbit/s) | $1,989.00quote | View |
