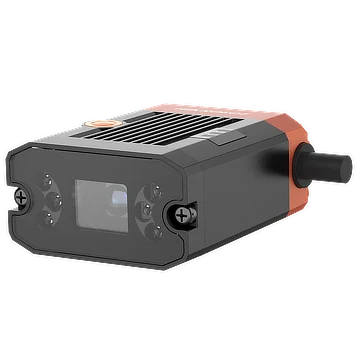

Hikrobot MV-SC2004EC-12S-WBN SC2000E series vision sensor, 0.4MP, Color, 12mm focal length

Model MV-SC2004EC-12S-WBNHikrobot

Resolution704 × 540
SensorCMOS, global shutter
InterfaceFast Ethernet (100 Mbit/s)
Speed60 fps
Lens mountM12
Mono / colourColor

$709.00

Ships in 2-3 weeks

0.41 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

Ask an engineer Browse Smart cameras & vision sensors

MV-SC2004EC-12S-WBN: resolution 704 x 540; sensor type CMOS, global shutter; sensor size 1/2.9"; max. frame rate 60 fps; mono/color Color.

Hikrobot MV-SC2004EC-12S-WBN SC2000E series vision sensor, 0.4MP, Color, 12mm focal length. Adopts embedded hardware platform for high-speed image processing. Adopts built-in positioning and measurement algorithms to for counting, existence, measurement detection, and recognition.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

Model	MV-SC2004EC-12S-WBN
Brand	Hikrobot
Vision tool	Measurement: P2P measurement, P2L measurement, contrast measurement, greyscale size, edge width measurement, width measurement, brightness average value, L2L angle, color measurement, color size, diameter measurement, and line angle; Existence: Anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, and line existence; Count: Spot count, edge count, contour count, color count, and pattern count; Recognition: Category recognition, color contrast, classification registration, color recognition, and OCR; Logic: Calculator, logic judge, condition judge, combination judge, format output, If module, and character comparison; Location: Fixture
Solution capacity	Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored.
Lens cap	Transparent lens cap
Indicator	Power indicator (PWR), network indicator (LNK), and status indicator (STS)

Optics

Focal length	12.4 mm

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	6.9 μm × 6.9 μm
Sensor size	1/2.9"
Resolution	704 × 540
Max. frame rate	60 fps
Gain	0 dB to 15 dB
Exposure time	16 μs to 1 sec
Pixel format	Mono 8, RGB 8
Mono/color	Color

Interfaces and I/O

Communication protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Data interface	Fast Ethernet (100 Mbit/s)
Digital I/O	17-pin M12 connector provides power, Ethernet, serial port, and digital I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable non-isolated I/O × 2 (Line 0/1), RS-232 × 1, and external button input × 1 (BUTTON)
Client software	SCMVS

Light

Light source	White LED lamp

Environment and compliance

Ingress protection	IP65
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Meets standard IEC 60068-2-6:2007.; Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistance	Meets standard IEC 60068-2-27:2008.; Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Certification	CE, KC

Electrical

Power supply	12 VDC to 24 VDC
Power consumption	Avg. 6 W @ 24 VDC; Max. 22 W @ 24 VDC

Mechanical

Lens mount	M12-mount, adjusting focus manually supported
Dimension	46 mm × 57.6 mm × 25 mm (1.8" × 2.3" × 1.0")
Weight	Approx. 220 g (0.5 lb.)
Shipping weight (estimated)	0.41 kg

Downloads

Features

Frame rate up to 60 fps
Exposure time 16 µs to 1 s
Adopts embedded hardware platform for high-speed image processing.
Adopts built-in positioning and measurement algorithms to for counting, existence, measurement detection, and recognition.
Multiple IO interfaces for input and output signals.
Multiple indicators for displaying device status.
Adopts light source to ensure uniform brightness in the illuminated area.
Supports multiple communication protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, Ethernet/IP, etc.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-SC2004EC-12S-WBN at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution704 × 540 px

Max. frame rate60 fps

Focal length12.4 mm

Ingress protectionIP65

Power consumption6 Wavg. at 24 V DC; max. 22 W

ShutterGlobal
