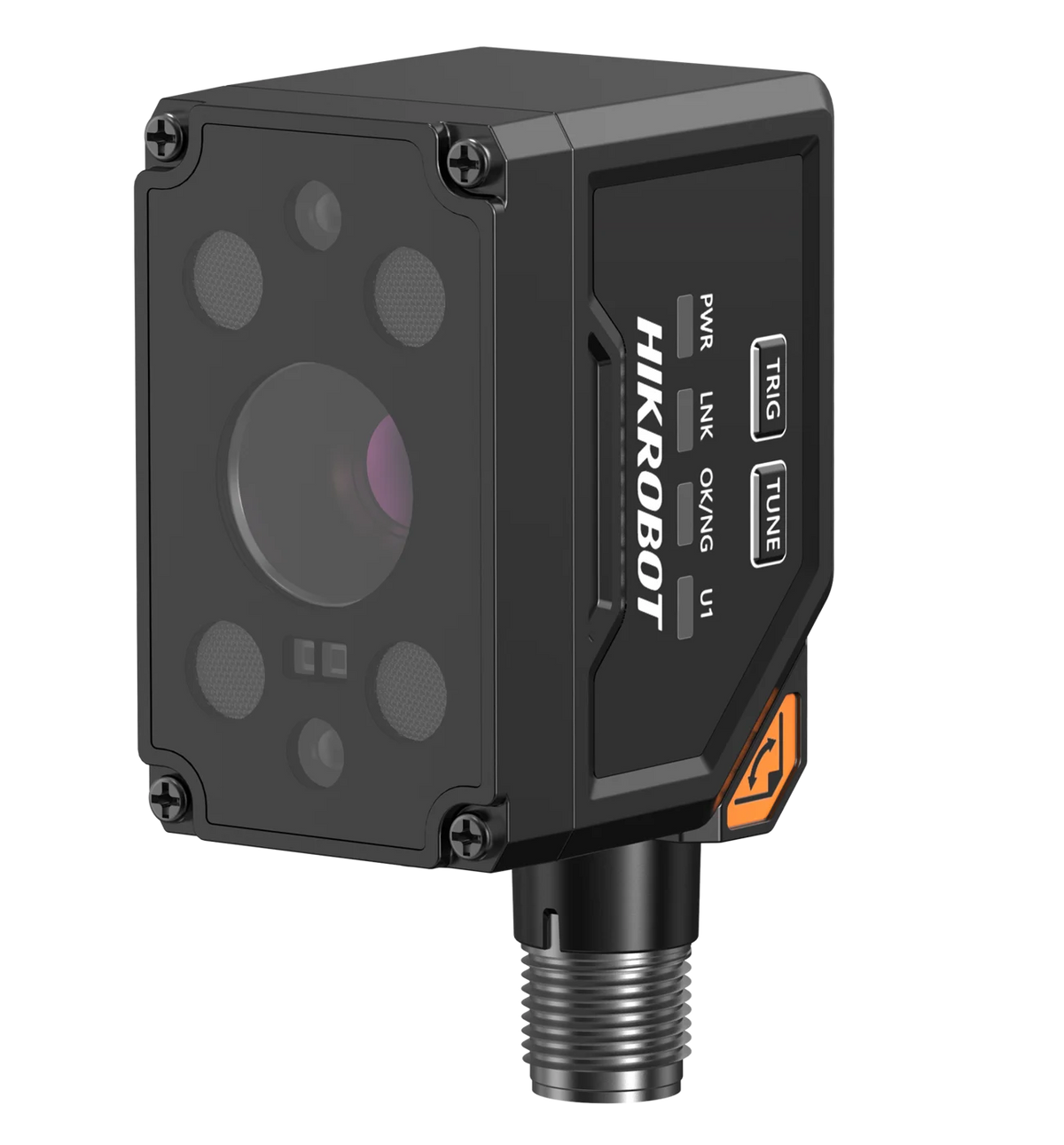

Hikrobot MV-SC2023XC-05M-WBN SC2000X series vision sensor, 2.4MP, Color, 05mm focal length

Model MV-SC2023XC-05M-WBNHikrobot

Resolution1920 × 1280
SensorCMOS, global shutter
InterfaceFast Ethernet (100 Mbit/s)
Speed75 fps
Lens mountM12
Mono / colourColor

$709.00

Ships in 2-3 weeks

0.27 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Smart cameras & vision sensors

MV-SC2023XC-05M-WBN: resolution 1920 x 1280; sensor type CMOS, global shutter; sensor size 1/3.52"; max. frame rate 75 fps; mono/color Color.

Hikrobot MV-SC2023XC-05M-WBN SC2000X series vision sensor, 2.4MP, Color, 05mm focal length. Adopts embedded hardware platform for high-speed image processing. Adopts built-in positioning and measurement algorithms to for counting, existence, measurement detection, and recognition.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

Model	MV-SC2023XC-05M-WBN
Brand	Hikrobot
Vision tool	Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness analysis, L2L angle, color measurement, color size, diameter measurement, line angle; Existence: Existence detection, anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, line existence; Count: Learning-based count, spot count, edge count, contour count, pattern count, color count; Recognition: Multi-object count, category recognition, code recognition, OCR, color contrast, color recognition; Logic: Calculator, if module, logic judge, condition judge, string comparison, combination judge, format output; Defect detection: Anomaly detection; Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture
Solution capacity	Supports solution importing and exporting, up to 16 solutions and 40 modules can be stored.
Lens cap	Transparent lens cap by default. Half-polarized and fully-polarized caps are optional.
Indicator	Power indicator (PWR), network indicator (LNK), result indicator (OK/NG), user-defined indicator (U1)

Optics

Focal length	5 mm

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	2.2 μm × 2.2 μm
Sensor size	1/3.52"
Resolution	1920 × 1280
Max. frame rate	75 fps
Gain	0 dB to 48 dB
Exposure time	36 μs to 100 ms
Pixel format	Mono 8, RGB 8
Mono/color	Color
Aiming system	2 green LED lights

Interfaces and I/O

Communication protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Data interface	Fast Ethernet (100 Mbit/s)
Digital I/O	17-pin M12 connector provides power and I/O, including isolated input (Line 0/1) × 2, isolated output (Line 2/3) × 2, RS-232 × 1; Supports device triggering via pressing side button.
Client software	SCMVS

Light

Light source	White light by default. Red, blue, IR, UV, and two-color (red/blue) lights are optional.

Environment and compliance

Ingress protection	IP65
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Meets standard IEC 60068-2-6:2007.; Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistance	Meets standard IEC 60068-2-27:2008.; Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Certification	CE, KC

Electrical

Power supply	24 VDC
Power consumption	Avg.: 5 W @ 24 VDC (light source enabled); Max.: 12 W @ 24 VDC (light source enabled)

Mechanical

Lens mount	M12-mount, mechanical autofocus supported
Dimension	Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × 1.6"); Right angle: 51.5 mm × 31.5 mm × 61 mm (2.0" × 1.2" × 2.4")
Weight	118 g (0.3 lb.)
Shipping weight (estimated)	0.27 kg

Downloads

Features

Frame rate up to 75 fps
Exposure time 36 µs to 100 ms
Adopts embedded hardware platform for high-speed image processing.
Adopts built-in positioning and measurement algorithms to for counting, existence, measurement detection, and recognition.
Provides multiple I/O interfaces for input and output signals.
Provides multiple indicators for displaying device status.
Adopts light source to ensure uniform brightness in the illuminated area.
Supports multiple communication protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, Ethernet/IP, etc.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-SC2023XC-05M-WBN at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution1920 × 1280 px

Max. frame rate75 fps

Focal length5 mm

Ingress protectionIP65

Power consumption5 Wavg. at 24 V DC; max. 12 W

ShutterGlobal
