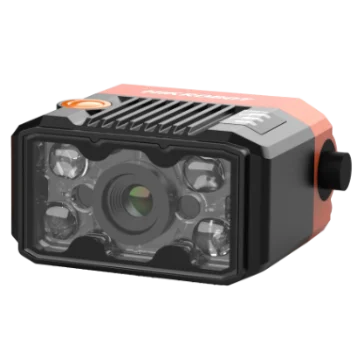

Hikrobot MV-SCB003EM-06S-WBN SCB vision sensor, 0.4 MP, Mono, 6 mm lens, Manual focus

Model MV-SCB003EM-06S-WBNHikrobot

Resolution704 × 540
SensorCMOS, global shutter
InterfaceFast Ethernet(100Mbit/s)
Speed60 fps
Lens mountM10
Mono / colourMono

$1,989.00

List price

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.32 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

Ask an engineer Browse Smart cameras & vision sensors

MV-SCB003EM-06S-WBN: resolution 704 x 540; sensor type CMOS, global shutter; sensor size 1/2.9"; max. frame rate 60 fps; dynamic range 74 dB.

Hikrobot MV-SCB003EM-06S-WBN SCB vision sensor, 0.4 MP, Mono, 6 mm lens, Manual focus. Embedded hardware platform for high-speed image processing. High-precision positioning and measurement algorithms for counting, presence checks and measurement.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

Model	MV-SCB003EM-06S-WBN
Brand	Hikrobot
Vision tool	Count: blob count, Edge count, Pattern count, Contour count; Presence: circle presence, Line presence, Blob presence, Edge presence, Pattern presence, Contour presence, Anomaly judgment; Positioning: position correction; Logic: condition judgment, Logic judgment, Character comparison, Variable calculation, Data formatting; Measurement: line-line angle, Diameter measurement, Mean brightness, Contrast measurement, Width measurement, Point-line measurement, Grayscale area, Line angle, Pitch inspection; Recognition: character recognition, Registration classification, Type recognition
Solution capacity	Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored.
Lens cap	Transparent lens cap
Indicator	Power indicator (PWR), network indicator (LNK), and status indicator (STS)

Optics

Focal length	6.72 mm

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	6.9 μm × 6.9 μm
Sensor size	1/2.9"
Resolution	704 × 540
Max. frame rate	60 fps
Dynamic range	74 dB
SNR	41 dB
Gain	0~15 dB
Exposure time	16 μs~1 sec
Pixel format	Mono 8
Mono/color	Mono

Interfaces and I/O

Communication protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Data interface	Fast Ethernet(100Mbit/s)
Digital I/O	17-pin M12 connector for power, Ethernet, Digital I/O, Serial port function: 1 non-isolated input (LINE2), 1 non-isolated output (LINE3), 2 bidirectional configurable non-isolated I/O (LINE0/1), 1× RS-232, 1 external button input (BUTTON). Output signals: NPN only
Client software	SCMVS

Light

Light source	White LED lamp × 4

Environment and compliance

Ingress protection	IP65
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistance	Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Certification	CE, KC

Electrical

Power supply	12 ~ 24 VDC
Power consumption	Avg. 4 W @ 24 VDC; Max. 11 W @ 24 VDC

Mechanical

Lens mount	M10-mount, adjusting focus manually supported

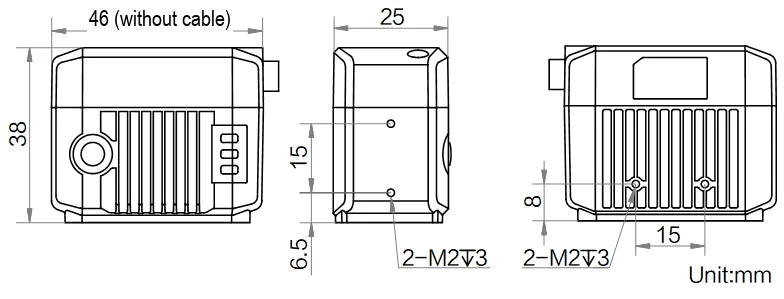

Dimension	46 mm × 38 mm × 25 mm
Weight	Approx. 160 g (0.4 lb.)
Shipping weight (estimated)	0.32 kg

Downloads

Features

Frame rate up to 60 fps
74 dB dynamic range
Embedded hardware platform for high-speed image processing
High-precision positioning and measurement algorithms for counting, presence checks and measurement
Rich I/O interface supports multiple input and output signals
Comprehensive status indicators show device status in real time for easy setup and maintenance
Well-designed light ensures uniform brightness across the illuminated area
Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-SCB003EM-06S-WBN at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution704 × 540 px

Max. frame rate60 fps

Focal length6.72 mm

Ingress protectionIP65

Power consumption4 Wavg. at 24 V DC; max. 11 W

ShutterGlobal
