Smart cameras & vision sensors

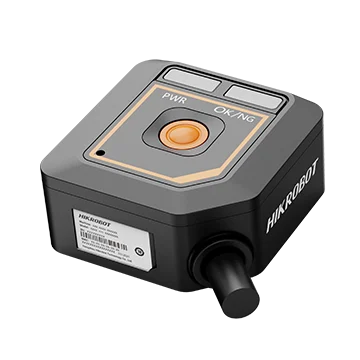

SC1000 Series Vision Sensor
- 14 models
- from $219.00
- Series HIK-SC1000
The SC1000 Series Vision Sensor is a range of 14 smart cameras & vision sensors from Hikrobot, from $219.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.3 MP, 1/6", 3.1 mm lens, Color, 0.3 MP, 1/6", 3.1 mm lens, Mono, 0.8 MP, 1/5", 4.9 mm lens, Mono
- Interface
- GigE
- Resolution
- Up to 3 MP
- Shutter
- Global
- Colour
- Color, Mono
- Lens mount
- M5, M5.5, M5.8
- Series
- SC1000 series
Features
- Adopts small-size design for all types of machines and compact workstations.
- Adopts embedded hardware platform for high-speed image processing.
- Adopts built-in positioning and measurement algorithms to detect object’s existence, quantity, location, etc.
- Integrated LED aimer to allow the field-of-view to be clearly.
- Provides multiple indicators for displaying device status.
- Supports multiple communication protocols, including Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP, and Serial Port.
- Integrated laser to allow the field-of-view to be clearly.
- Ultra-compact: fits all kinds of machines and tight workstations
All 14 models in the SC1000 Series Vision Sensor
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-SC1003M-03S-WBN-NR | 0.3 MP, 1/6", 3.1 mm lens, Mono | 640 × 480 | Fast Ethernet (100 Mbit/s) | 1/6" | $219.00quote | View |
| MV-SC1003M-03S-WBN-SR | 0.3 MP, 1/6", 3.1 mm lens, Mono | 640 × 480 | Fast Ethernet (100 Mbit/s) | 1/6" | $219.00quote | View |
| MV-SC1008M-05S-WBN-NR | 0.8 MP, 1/5", 4.9 mm lens, Mono | 1024 × 768 | Fast Ethernet (100 Mbit/s) | 1/5" | $219.00quote | View |
| MV-SC1008M-05S-WBN-SR | 0.8 MP, 1/5", 4.9 mm lens, Mono | 1024 × 768 | Fast Ethernet (100 Mbit/s) | 1/5" | $219.00quote | View |
| MV-SC1003C-03S-WBN-NR | 0.3 MP, 1/6", 3.1 mm lens, Color | 640 × 480 | Fast Ethernet (100 Mbit/s) | 1/6" | $219.00quote | View |
| MV-SC1003C-03S-WBN-SR | 0.3 MP, 1/6", 3.1 mm lens, Color | 640 × 480 | Fast Ethernet (100 Mbit/s) | 1/6" | $219.00quote | View |
| MV-SCA002M-03S-WBN-NR | 0.3 MP, 1/6", 3.1 mm lens, Mono | 640 × 480 | Fast Ethernet(100Mbit/s) | 1/6" | $1,989.00quote | View |
| MV-SCA002M-03S-WBN-SR | 0.3 MP, 1/6", 3.1 mm lens, Mono | 640 × 480 | Fast Ethernet(100Mbit/s) | 1/6" | $1,989.00quote | View |
| MV-SCA004M-05S-WBN-SR | 0.8 MP, 1/5", 4.9 mm lens, Mono | 1024 × 768 | Fast Ethernet(100Mbit/s) | 1/5" | $1,989.00quote | View |
| MV-SCA004M-05S-WBN-NR | 0.8 MP, 1/5", 4.9 mm lens, Mono | 1024 × 768 | Fast Ethernet(100Mbit/s) | 1/5" | $1,989.00quote | View |
| MV-SCi3XC-H-WX_S | 0.3 MP, 1/6", 3.1 mm lens, Color | 640 × 480 | Fast Ethernet(100Mbit/s) | 1/6" | $1,989.00 | View |
| MV-SCi3XC-H-WX_N | 0.3 MP, 1/6", 3.1 mm lens, Color | 640 × 480 | Fast Ethernet(100Mbit/s) | 1/6" | $1,989.00 | View |
| MV-SCA002C-03S-WBN-NR | 0.3 MP, 1/6", 3.1 mm lens, Color | 640 × 480 | Fast Ethernet(100Mbit/s) | 1/6" | $1,989.00quote | View |
| MV-SCA002C-03S-WBN-SR | 0.3 MP, 1/6", 3.1 mm lens, Color | 640 × 480 | Fast Ethernet(100Mbit/s) | 1/6" | $1,989.00quote | View |
