Smart cameras & vision sensors

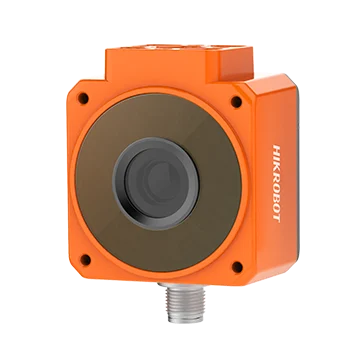

SC2000A Series Guide Sensor
- 3 models
- from $709.00
- Series HIK-SC2000A
The SC2000A Series Guide Sensor is a range of 3 smart cameras & vision sensors from Hikrobot, from $709.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.5 MP, 1/3.6", 2.5 mm lens, Color, 0.5 MP, 1/3.6", 2.5 mm lens, Mono, 0.5 MP, 1/3.6", 3.4 mm lens, Color
- Interface
- GigE, Serial
- Resolution
- Up to 3 MP
- Shutter
- Global
- Colour
- Color, Mono
- Series
- SC2000A series
- Sensor format
- 1/2.5" and smaller
Features
- Built-in ribbon localization algorithm to effectively localize ribbon.
- Built-in code reading algorithm to read 2-dimensional code tapes and array codes.
- Provides good robustness to read codes with spots, defects and low contrast ratio.
- Adopts CMOS sensor to provide high-quality images.
- Adopts multiple indicators for displaying status and debugging.
- Adopts M12 lens and supports large field of view.
- Better optical design to provide uniform illumination and applicable to strong reflection.
- Built-in code reading algorithm to read DM codes.
All 3 models in the SC2000A Series Guide Sensor
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-SC2005AC-02WBN | 0.5 MP, 1/3.6", 2.5 mm lens, Color | 96 fps | Color | 2.5 mm | $709.00 | View |
| MV-SC2005AC-03WBN | 0.5 MP, 1/3.6", 3.4 mm lens, Color | 96 fps | Color | 3.4 mm | $709.00 | View |
| MV-SC2005AM-02WBN | 0.5 MP, 1/3.6", 2.5 mm lens, Mono | 100 fps | Mono | 2.5 mm | $1,049.00 | View |
