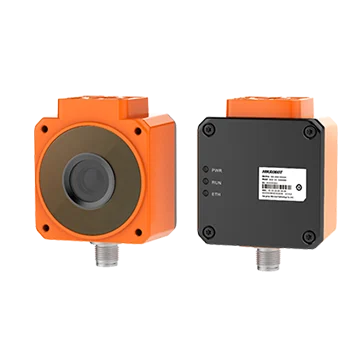

Hikrobot MV-SC2005AM-02WBN SC2000A AGV Guide Sensor, 0.5MP, Mono, M12-2mm focal length, focus 100mm

Model MV-SC2005AM-02WBNHikrobot

Resolution800 × 600
SensorCMOS, global shutter
InterfaceFast Ethernet (100 Mbit/sec), RS-485
Speed100 fps
Mono / colourMono
Pixel size4.8 μm × 4.8 μm

$1,049.00

Ships in 2-3 weeks

0.38 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Smart cameras & vision sensors

MV-SC2005AM-02WBN: max. frame rate 100 fps, mono/color Mono, max. reading speed 100 codes/sec.

Hikrobot MV-SC2005AM-02WBN SC2000A AGV Guide Sensor, 0.5MP, Mono, M12-2mm focal length, focus 100mm. Built-in code reading algorithm to read DM codes. Provides good robustness to read codes with spots, defects and low contrast radio.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHS

Specifications

General

Model	MV-SC2005AM-02WBN
Brand	Hikrobot
Max. running speed	3 m/sec (it is the AGV's max. running speed)
Displacement accuracy	0.1 mm
Angle accuracy	0.1°

Optics

Focal length	2.5 mm
Working distance	100 mm ± 5 mm
Field of view	93.8°
Field of view (range)	170 mm × 130 mm (it is the field of view under 100 mm ± 5 mm working distance. If the working distance changes, the field of view will vary too.)

Sensor and imaging

Symbologies	2-dimensional codes: DM-12, DM-14
Max. frame rate	100 fps
Max. reading speed	100 codes/sec
Sensor type	CMOS, global shutter
Pixel size	4.8 μm × 4.8 μm
Sensor size	1/3.6"
Resolution	800 × 600
Exposure time	20 μs to 9000 μs
Gain	1 dB to 330 dB
Mono/color	Mono

Interfaces and I/O

Communication protocol	SmartSDK, UDP, Serial
Data interface	Fast Ethernet (100 Mbit/sec), RS-485
Digital I/O	12-pin M12 connector provides power supply and RS-485 × 1
Client software	IDMVS

Environment and compliance

Ingress protection	IP65 (with proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	10% to 90% RH, non-condensing
Certification	CE, RoHS

Electrical

Power supply	24 VDC
Max. power consumption	18 W @ 24 VDC (self light source enabled); 3 W @ 24 VDC (self light source disabled)

Mechanical

Dimension	68 mm × 60 mm × 40.8 mm (2.7" × 2.4" × 1.6")
Weight	Approx. 200 g (0.4 lb.)
Shipping weight (estimated)	0.38 kg

Downloads

Features

Built-in code reading algorithm to read DM codes.
Provides good robustness to read codes with spots, defects and low contrast radio.
Adopts CMOS sensor to provide high-quality images.
Adopts multiple indicators for displaying status and debugging.
Adopts M12 lens and supports large field of view.
Better optical design to provide uniform illumination and applicable to strong reflection.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-SC2005AM-02WBN at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution800 × 600 px

Max. frame rate100 fps

Focal length2.5 mm

Ingress protectionIP65

ShutterGlobal

Exposure range20–9000 µs

Other models in the SC2000A Series Guide Sensor series

See all 3 models

Model	Speed	Mono / colour	Price	Availability	Link
MV-SC2005AM-02WBNThis model	100 fps	Mono	$1,049.00	Ships in 2-3 weeks	Compare
MV-SC2005AC-02WBN	96 fps	Color	$709.00	Ships in 2-3 weeks	CompareView
MV-SC2005AC-03WBN	96 fps	Color	$709.00	Ships in 2-3 weeks	CompareView
