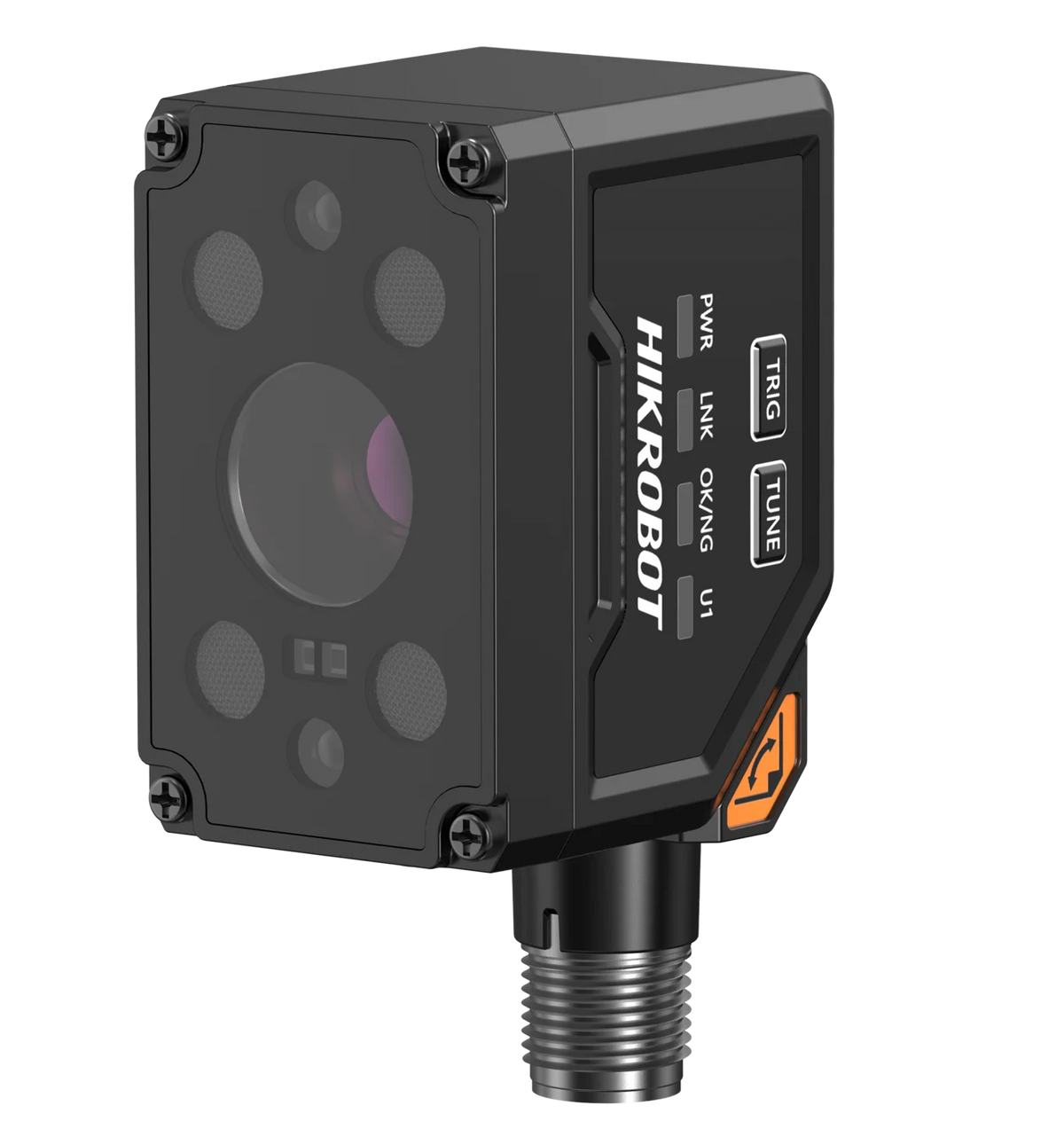

Hikrobot MV-SCB006XC-16M-WBN SCB vision sensor, X type, 2 MP, Color, 16 mm lens, Motorized focus
Model MV-SCB006XC-16M-WBNHikrobot
- Resolution1920 × 1080
- SensorCMOS, rolling shutter
- InterfaceFast Ethernet(100 Mbit/s)
- Speed30 fps
- Lens mountM12
- Mono / colourColor
$1,989.00
End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.
Ships in 2-3 weeks
0.27 kg shipping weight
Not available in the United States. Available for delivery to other countries.
MV-SCB006XC-16M-WBN: resolution 1920 x 1080; sensor type CMOS, rolling shutter; sensor size 1/2.8"; max. frame rate 30 fps; mono/color Color.
Hikrobot MV-SCB006XC-16M-WBN SCB vision sensor, X type, 2 MP, Color, 16 mm lens, Motorized focus. Embedded hardware platform for high-speed image processing High-precision positioning, measurement and recognition algorithms for counting, presence checks, measurement and identification
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Certifications (as printed)CEKC
Specifications
General
| Model | MV-SCB006XC-16M-WBN |
|---|---|
| Brand | Hikrobot |
| Vision tool | Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness analysis, L2L angle, color measurement, color size, diameter measurement, line angle; Existence: Existence detection, anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, line existence; Count: Learning-based count, spot count, edge count, contour count, pattern count, color count; Recognition: Multi-object count, category recognition, code recognition, OCR, color contrast, color recognition; Logic: Calculator, if module, logic judge, condition judge, string comparison, combination judge, format output; Defect detection: Anomaly detection; Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture |
| Solution capacity | Supports solution importing and exporting, up to 16 solutions and 40 modules can be stored. |
| Lens cap | Transparent lens cap by default. Half-polarized and fully-polarized caps are optional. |
| Indicator | Power indicator (PWR), network indicator (LNK), result indicator (OK/NG), user-defined indicator (U1) |
Optics
| Focal length | 16 mm |
|---|
Sensor and imaging
| Sensor type | CMOS, rolling shutter |
|---|---|
| Pixel size | 2.9 μm ×2.9 μm |
| Sensor size | 1/2.8" |
| Resolution | 1920 × 1080 |
| Max. frame rate | 30 fps |
| Gain | 0 dB to 24 dB (analog gain) |
| Exposure time | 1400 μs ~ 62.5 ms |
| Pixel format | RGB 8, Mono 8 |
| Mono/color | Color |
| Aiming system | 2 green LED lights |
Interfaces and I/O
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
|---|---|
| Data interface | Fast Ethernet(100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including isolated input (Line 0/1) × 2, isolated output (Line 2/3) × 2, RS-232 × 1; Supports device triggering via pressing side button. |
| Client software | SCMVS |
Light
| Light source | White light by default. Red, blue, IR, UV, and two-color (red/blue) lights are optional. |
|---|
Environment and compliance
| Ingress protection | IP65 |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Certification | CE, KC |
Electrical
| Power supply | 24 VDC |
|---|---|
| Power consumption | Avg.: 5 W @ 24 VDC (light source enabled); Max.: 12 W @ 24 VDC (light source enabled) |
Mechanical
| Lens mount | M12-mount, mechanical focusing |
|---|---|

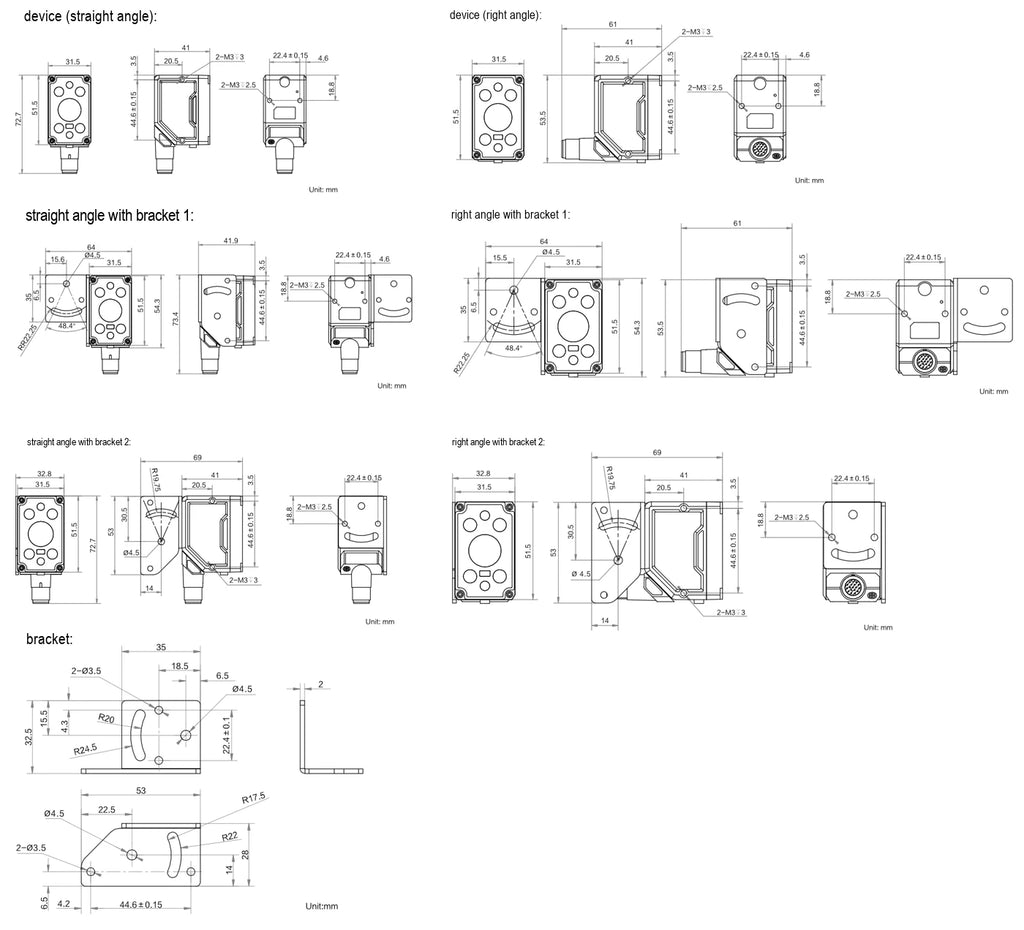

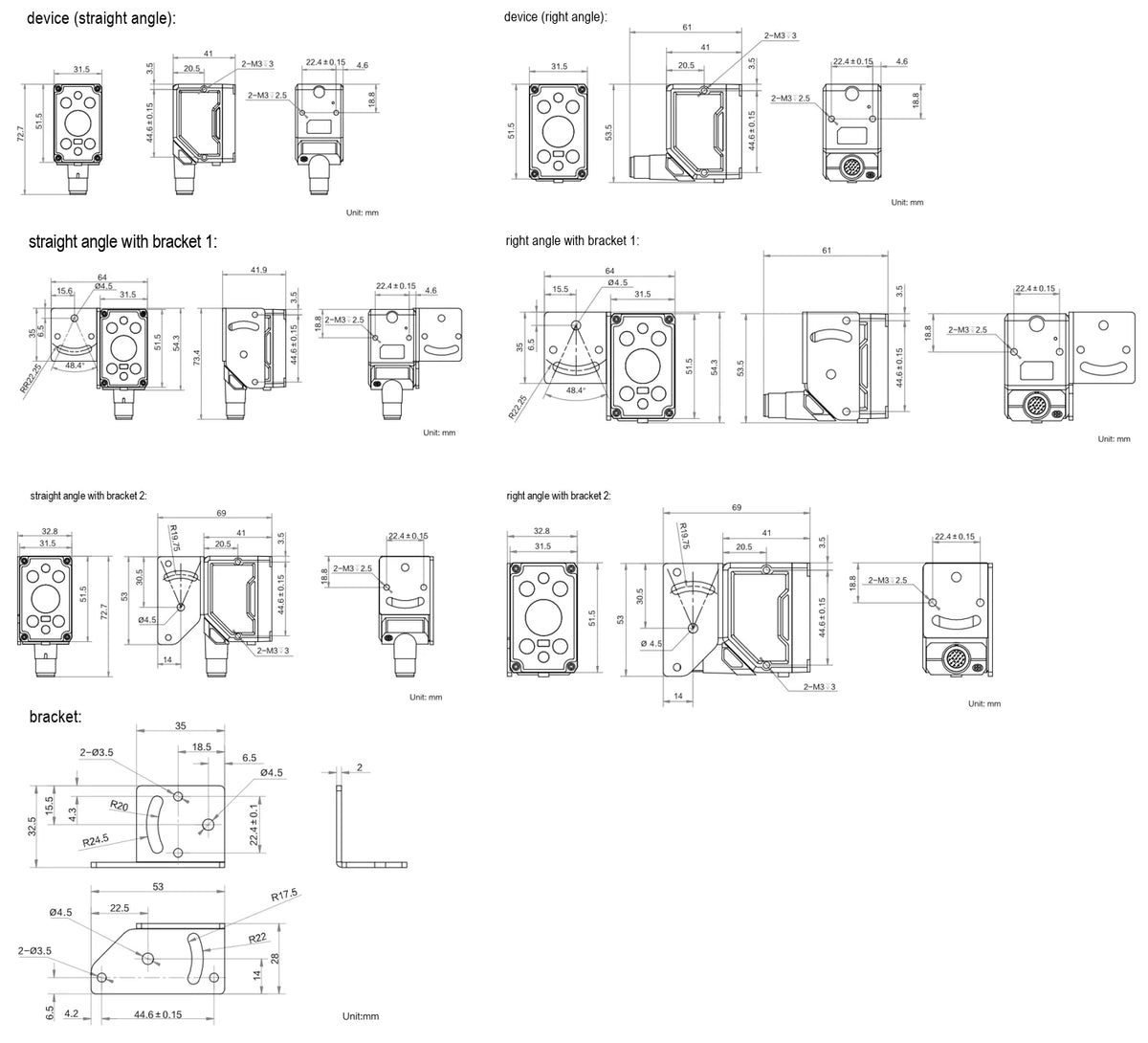

| Dimension | Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × 1.6"); Right angle: 51.5 mm × 31.5 mm × 61 mm (2.0" × 1.2" × 2.4") |
| Weight | 118 g |
| Shipping weight (estimated) | 0.27 kg |
Engineering data
The MV-SCB006XC-16M-WBN at a glance
The numbers that set this model apart, taken from its own printed specifications.
Resolution1920 × 1080 px
Max. frame rate30 fps
Focal length16 mm
Ingress protectionIP65
Power consumption5 Wavg. at 24 V DC; max. 12 W
ShutterRolling
