Cables

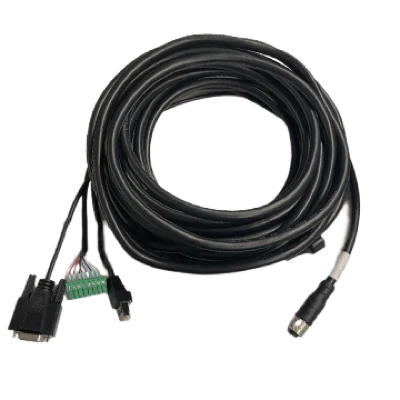

Code Reader Cables
- 62 models
- from $39.00
- Series HIK-CODE-READER-CABLES
The Code Reader Cables is a range of 62 cables from Hikrobot, from $39.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Type
- Code Reader Cables
Features
- 17-pin M12 standard Ethernet combo cable for camera power, input/output signals and data transmission
- 17-pin M12 high-flex Ethernet combo cable for camera power, input/output signals and data transmission
- 17-pin M12 standard USB combo cable for camera power, I/O signals and data transmission.
- 17-pin M12 high-flex USB combo cable for camera power, I/O signals and data transmission.
- M12 standard Gigabit Ethernet cable for network data transmission; available in multiple lengths
- M12 high-flex Gigabit Ethernet cable for network data transmission; available in multiple lengths
- 12-pin M12 standard I/O & power cable for camera power and I/O input/output signals; available in multiple lengths
- 12-pin M12 high-flex I/O & power cable for camera power and I/O input/output signals; available in multiple lengths
All 62 models in the Code Reader Cables
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-IDA-PE-M12A17pF-openRJ45DB9-ST-5m | 5 m | 8.0 mm | UL20276 (26AWG*2P+AB)+26AWG*11C+26AWG*2C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-M12A17pF-openRJ45DB9-ST-3m | 3 m | 8.0 mm | UL20276 (26AWG*2P+AB)+26AWG*11C+26AWG*2C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-M12A17pF-openRJ45DB9-HF-3m | 3 m | 8.5 mm | UL20276 (26AWG*2P+AB)+26AWG*11C+26AWG*2C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-M12A17pF-openU2DB9-ST-2m | PVC | 6.5 mm | UL20276 (26AWG*1P+AB)+26AWG*10C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-M12A17pF-openU2DB9-HF-2m | 2 m | 7.2 mm | UL20276 (26AWG*1P+AB)+26AWG*10C+AB | >500 cycles | $39.00 | View |
| MV-IDA-E-M12A8pF-RJ45-ST-7m | 7 m | 6.6 mm | 24#*4P | >500 mating cycles | $39.00 | View |
| MV-IDA-E-M12A8pF-RJ45-ST-5m | 5 m | 6.6 mm | 24#*4P | >500 mating cycles | $39.00 | View |
| MV-IDA-E-M12A8pF-RJ45-ST-3m | 3 m | 6.6 mm | 24#*4P | >500 mating cycles | $39.00quote | View |
| MV-IDA-E-M12A8pF-RJ45-HF-3m | 3 m | 6.5 mm | 26#*4P | >500 cycles | $39.00 | View |
| MV-IDA-E-M12A8pF-RJ45-HF-10m | 5 m | 6.5 mm | 26#*4P | >500 cycles | $39.00 | View |
| MV-IDA-P-M12A12pF-open-ST-3m | 3 m | 7.0 mm | 26#*12C | >500 mating cycles | $39.00 | View |
| MV-IDA-P-M12A12pF-open-ST-5m | 5 m | 7.0 mm | 26#*12C | >500 mating cycles | $39.00 | View |
| MV-IDA-P-M12A12pF-open-ST-7m | 7 m | 7.0 mm | 26#*12C | >500 mating cycles | $39.00 | View |
| MV-IDA-P-M12A12pF-open-HF-3m | 3 m | 7.0 mm | 26#*12C | >500 mating cycles | $39.00 | View |
| MV-IDA-P-M12A12pF-open-HF-5m | 5 m | 7.0 mm | 26#*12C | >500 mating cycles | $39.00 | View |
| MV-IDA-PE-M12A17pF-openRJ45FDB9-ST-3m | 3 m | 8 mm | UL20276(26#*2P+AB)+26#*11C+26#*2C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-M12A17pF-openRJ45FDB9-HF-3m | 3 m | 8 mm | UL20276(26#*2P+AB)+26#*11C+26#*2C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-ST-3m | 3 m | 8 mm | UL20276(26#*2P+AB)+26#*11C+26#*2C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3m | 3 m | 8 mm | UL20276(26#*2P+AB)+26#*11C+26#*2C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-M12A17pF-openRJ45DB9-HF-7m | 7 m | 8.5 mm | UL20276 (26AWG*2P+AB)+26AWG*11C+26AWG*2C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-M12A17pF-openRJ45DB9-ST-7m | 7 m | 8.0 mm | UL20276 (26AWG*2P+AB)+26AWG*11C+26AWG*2C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-M12A17pF-openRJ45DB9-SF-5m | 5 m | 8.5 mm | UL20276 (2P*26AWG+FNB)*1C+13C*26AWG+F+NON-WOVEN+ | >500 cycles | $39.00 | View |
| MV-IDA-PE-HDB15-USBRJ45DB9Open-ST-2.5m | 2.5 m | 8.8 mm | UL20276, (26AWG*2P+B)+(26AWG*1P+B)+26AWG*9C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-HDB15-USBDB9Open-ST-2.5m | 2.5 m | 6.8 mm | UL20276(26AWG*1P+B)+26AWG*9C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-HDB15-RJ45DB9Open-ST-3.5m | 3.5 m | 7.8 mm | UL20276, (26AWG*2P+AB)+26AWG*8C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-HDB15-RJ45DB9Open-ST-5m | 5 m | 7.8 mm | UL20276, (26AWG*2P+AB)+26AWG*8C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-HDB15-RJ45FDB9Open-ST-3.5m | 3.5 m | 7.5 mm | UL20276, (26AWG*2P+AB)+26AWG*8C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-HDB15-RJ45DB9Open-HF-5m | 5 m | 8.3 mm | Drag-chain cable, (26AWG*2P+AB)+26AWG*8C+AB | >500 cycles | $39.00 | View |
| MV-IDA-P-M12A17pF-Open-ST-0.5m | 0.5 m | 5.8 mm | UL2517, 26AWG*12C | >500 cycles | $39.00 | View |
| MV-IDA-PE-Open10p-Open-ST-7m | 7 m | 7 mm | UL2517, 26AWG*10C | >500 cycles | $39.00 | View |
| MV-IDAPE-HDB15M-AMOpen-HF-2m | 2 m | 6.8 mm | Drag-chain cable, UL20276(26AWG*1P+AB)+26AWG*5C+ | >500 cycles | $39.00 | View |
| MV-IDAPE-DB15M-USB--ST-2m | 2 m | 4.5 mm | UL2725, 26AWG*1P+26AWG*2C+AB | >500 cycles | $39.00 | View |
| MV-IDAPE-DB15M-USBDB9FOPEN--ST-2m | 2 m | 7.0 mm | UL20276(26AWG*1P+AB)+26AWG*11C+AB | >500 cycles | $39.00 | View |
| MV-IDAPE-DB15M-DB9FRJ45OPEN-ST-3m | 3 m | 7.8 mm | UL20276(26AWG*2P+AB)+26AWG*10C+AB | >500 cycles | $39.00 | View |
| MV-IDAPE-DB15M-DB9FRJ45OPEN-ST-5m | 5 m | 7.8 mm | UL20276(26AWG*2P+AB)+26AWG*10C+AB | >500 cycles | $39.00 | View |
| MV-IDAPE-DB15M-DB9FRJ45OPEN-ST-7m | 7 m | 7.8 mm | UL20276(26AWG*2P+AB)+26AWG*10C+AB | >500 cycles | $39.00 | View |
| MV-IDAPE-DB15M-DB9FRJ45OPEN-HF-7m | 7 m | 8.2 mm | Drag-chain cable, UL20276(26AWG*2P+AB)+26AWG*10C | >500 cycles | $39.00 | View |
| MV-IDAPE-DB15M-DB9FRJ45OPEN-HF-5m | 5 m | 8.2 mm | Drag-chain cable, UL20276(26AWG*2P+AB)+26AWG*10C | >500 cycles | $39.00 | View |
| MV-IDA-PE-M12A17pF-openRJ45DB9-HF-5m | 5 m | 8.5 mm | UL20276 (26AWG*2P+AB)+26AWG*11C+26AWG*2C+AB | >500 cycles | $39.00 | View |
| MV-IDAP-M12A12F-DB9Fopen-ST-7m | 7 m | 6.2 mm | UL20276, 26AWG*12C+AB | >500 cycles | $39.00 | View |
| MV-IDAP-M12A12F-DB9Fopen-ST-5m | 5 m | 6.2 mm | UL20276, 26AWG*12C+AB | >500 cycles | $39.00 | View |
| MV-IDAP-M12A12F-DB9Fopen-ST-3m | 3 m | 6.2 mm | UL20276, 26AWG*12C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-HDB15-USB-ST-2m | 2 m | 4.5 mm | UL2725, 26AWG*1P+26AWG*2C+AB | >500 cycles | $39.00 | View |
| MV-IDA-PE-M12A17pF-openRJ45DB9-ST-10m | 10 m | 8.0 mm | UL20276 (26AWG*2P+AB)+26AWG*11C+26AWG*2C+AB | >500 cycles | $49.00 | View |
| MV-IDA-E-M12A8pF-RJ45-ST-10m | 10 m | 6.6 mm | 24#*4P | >500 mating cycles | $49.00 | View |
| MV-IDA-E-M12A8pF-RJ45-HF-5m | 10 m | 6.5 mm | 26#*4P | >500 cycles | $49.00 | View |
| MV-IDA-P-M12A12pF-open-ST-10m | 10 m | 7.0 mm | 26#*12C | >500 mating cycles | $49.00 | View |
| MV-IDA-P-M12A12pF-open-HF-10m | 10 m | 7.0 mm | 26#*12C | >500 mating cycles | $49.00 | View |
| MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-ST-10m | 10 m | 8 mm | UL20276(26#*2P+AB)+26#*11C+26#*2C+AB | >500 cycles | $49.00 | View |
| MV-IDA-PE-M12A17pF-openRJ45DB9-HF-10m | 10 m | 8.5 mm | UL20276 (26AWG*2P+AB)+26AWG*11C+26AWG*2C+AB | >500 cycles | $49.00 | View |
| MV-IDAPE-DB15M-DB9FRJ45OPEN-ST-10m | 10 m | 7.8 mm | UL20276(26AWG*2P+AB)+26AWG*10C+AB | >500 cycles | $49.00 | View |
| MV-IDAPE-DB15M-DB9FRJ45OPEN-HF-10m | 10 m | 8.2 mm | Drag-chain cable, UL20276(26AWG*2P+AB)+26AWG*10C | >500 cycles | $49.00 | View |
| MV-IDAP-M12A12F-DB9Fopen-ST-10m | 10 m | 6.2 mm | UL20276, 26AWG*12C+AB | >500 cycles | $49.00 | View |
| MV-IDA-E-M12A8pF-RJ45-ST-15m | 15 m | 6.6 mm | 24#*4P | >500 mating cycles | $59.00 | View |
| MV-IDA-P-M12A12pF-open-ST-15m | 15 m | 7.0 mm | 26#*12C | >500 mating cycles | $59.00 | View |
| MV-IDA-PE-M12A17pF-openRJ45DB9-HF-15m | 15 m | 8.5 mm | UL20276 (26AWG*2P+AB)+26AWG*11C+26AWG*2C+AB | >500 cycles | $59.00 | View |
| MV-IDA-PE-M12A17pF-openRJ45DB9-ST-15m | 15 m | 8.0 mm | UL20276 (26AWG*2P+AB)+26AWG*11C+26AWG*2C+AB | >500 cycles | $59.00 | View |
| MV-IDA-PE-HDB15-RJ45DB9Open-ST-15m | 15 m | 7.8 mm | UL20276, (26AWG*2P+AB)+26AWG*8C+AB | >500 cycles | $59.00 | View |
| MV-IDA-E-M12A8pF-RJ45-HF-20m | 20 m | 6.5 mm | 26#*4P | >500 cycles | $69.00 | View |
| MV-IDA-P-M12A12pF-open-HF-20m | 20 m | 7.0 mm | 26#*12C | >500 mating cycles | $69.00 | View |
| MV-IDA-E-M12A8pF-RJ45-ST-30m | 30 m | 6.6 mm | 24#*4P | >500 mating cycles | $89.00 | View |
| MV-IDA-P-M12A12pF-open-ST-30m | 30 m | 7.0 mm | 26#*12C | >500 mating cycles | $89.00 | View |
