Cables
Hikrobot MV-IDA-PE-HDB15-RJ45DB9Open-ST-15m Standard DB15 power/I/O combo cable, DB15 to RJ45 male, USB2.0, DB9, open cable, Static cable
Model MV-IDA-PE-HDB15-RJ45DB9Open-ST-15mHikrobot
- Length15 m
- End ADB15M
- End BRJ45, DB9F, 6-pin terminal
- Diameter7.8 mm
- Max. voltage30 VDC
- JacketPVC
$59.00
Ships in 2-3 weeks
0.31 kg shipping weight
Not available in the United States. Available for delivery to other countries.

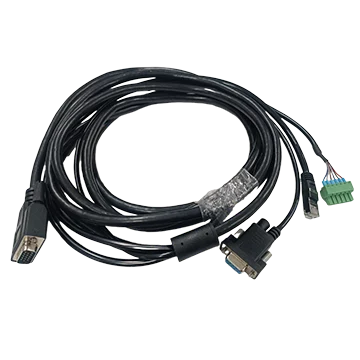

Hikrobot MV-IDA-PE-HDB15-RJ45DB9Open-ST-15m Standard DB15 power/I/O combo cable, DB15 to RJ45 male, USB2.0, DB9, open cable, green terminal block, 15 m, Static cable. DB15M Ethernet combo cable (standard) for camera power, input/output signals and data transmission
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-IDA-PE-HDB15-RJ45DB9Open-ST-15m |
|---|---|
| Brand | Hikrobot |
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | DB15M |
|---|---|
| End B connector | RJ45, DB9F, 6-pin terminal |
| Cable diameter | 7.8 mm |
| Cable mechanical | UL20276, (26AWG*2P+AB)+26AWG*8C+AB |
| Cable color | Black |
| Connector durability | >500 cycles |
| Applicable scenario | Static scenes |
Environment and compliance
| Working temperature | -20°C~80°C |
|---|---|
| Certification | RoHS, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 15 m |
|---|---|
| Min. bending radius | 62.4 mm |
| Shipping weight (estimated) | 0.31 kg |
