Hikrobot MV-IDA-PE-M12A17pF-openRJ45DB9-ST-5m Integrated cable, GigE, static, 5 m, 17-pin to open/RJ45/DB9

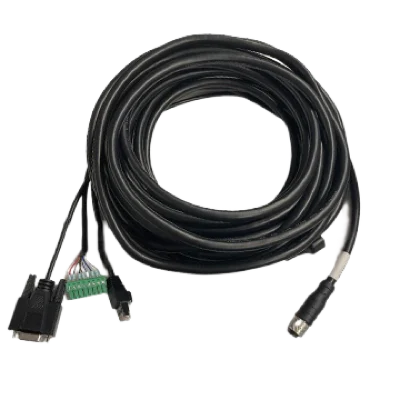

  • Hikrobot MV-IDA-PE-M12A17pF-openRJ45DB9-ST-5m Integrated cable, GigE, static, 5 m, 17-pin to open/RJ45/DB9
  • MV-IDA-PE-M12A17pF-openRJ45DB9-ST-5m dimensions (mm)

Cables

Hikrobot MV-IDA-PE-M12A17pF-openRJ45DB9-HF-10m Integrated cable, GigE, high-flex, 10 m, 17-pin to open/RJ45/DB9

Model MV-IDA-PE-M12A17pF-openRJ45DB9-HF-10mHikrobot

  • Length10 m
  • End AM12 17-pin A-code male
  • End BRJ45, DB9F, 8-pin terminal
  • Diameter8.5 mm
  • Max. voltage30 VDC
  • JacketPVC
$49.00

Ships in 2-3 weeks

0.31 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDA-PE-M12A17pF-openRJ45DB9-HF-10m Integrated cable, GigE, high-flex, 10 m, 17-pin to open/RJ45/DB9. 17-pin M12 high-flex Ethernet combo cable for camera power, input/output signals and data transmission

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelMV-IDA-PE-M12A17pF-openRJ45DB9-HF-10m
BrandHikrobot
JacketPVC
PackagingIndividual package

Interfaces and I/O

End A connectorM12 17-pin A-code male
End B connectorRJ45, DB9F, 8-pin terminal
Cable diameter8.5 mm
Cable mechanicalUL20276 (26AWG*2P+AB)+26AWG*11C+26AWG*2C+AB
Cable colorBlack
Connector durability>500 cycles
Applicable scenarioDrag chain

Environment and compliance

Working temperature-20°C~80°C
CertificationRoHS, UL

Electrical

Max. voltage30 VDC

Mechanical

Length10 m
Min. bending radius68 mm
Max. U-type bending cycles5 million times
Shipping weight (estimated)0.31 kg
