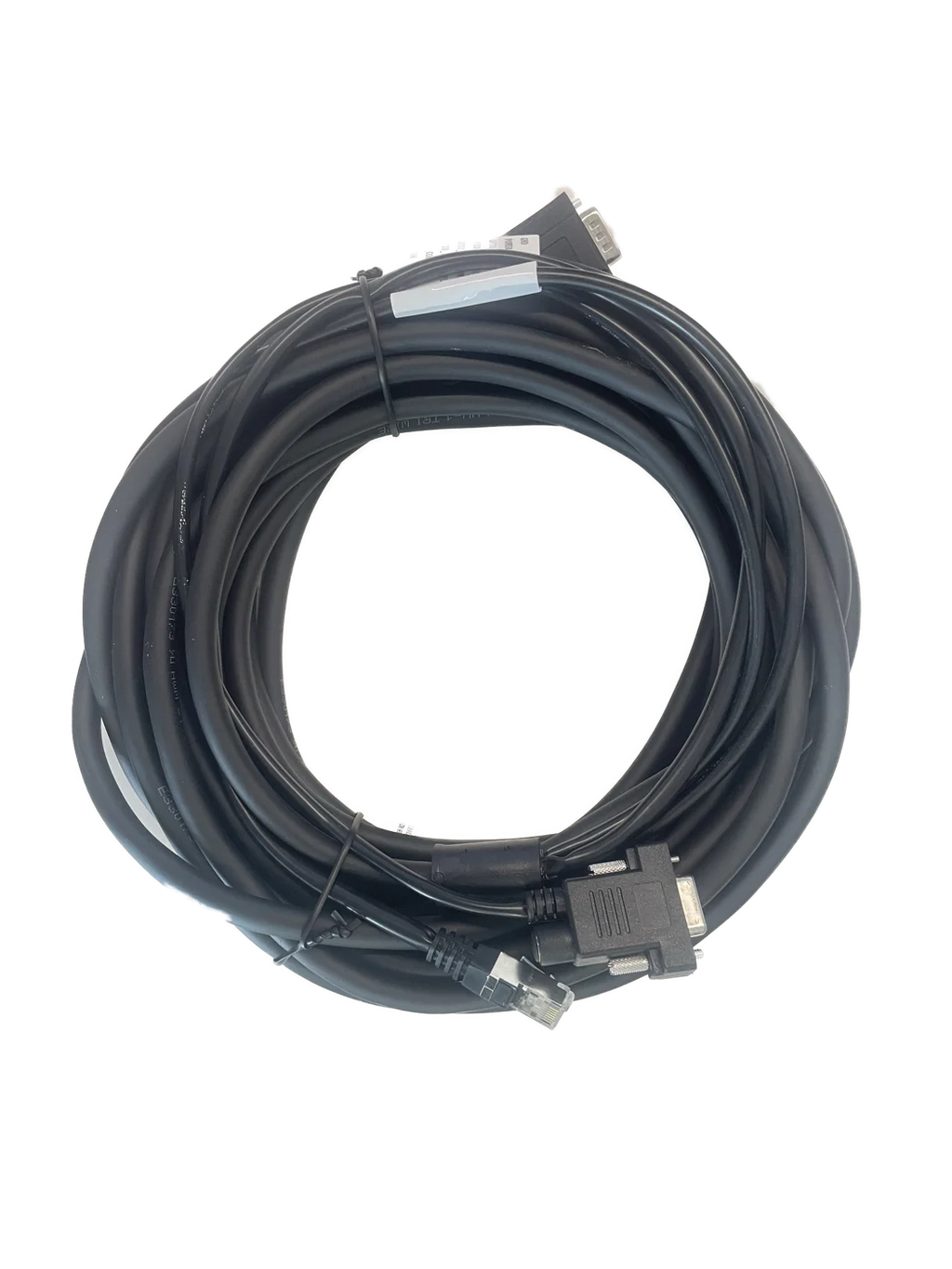

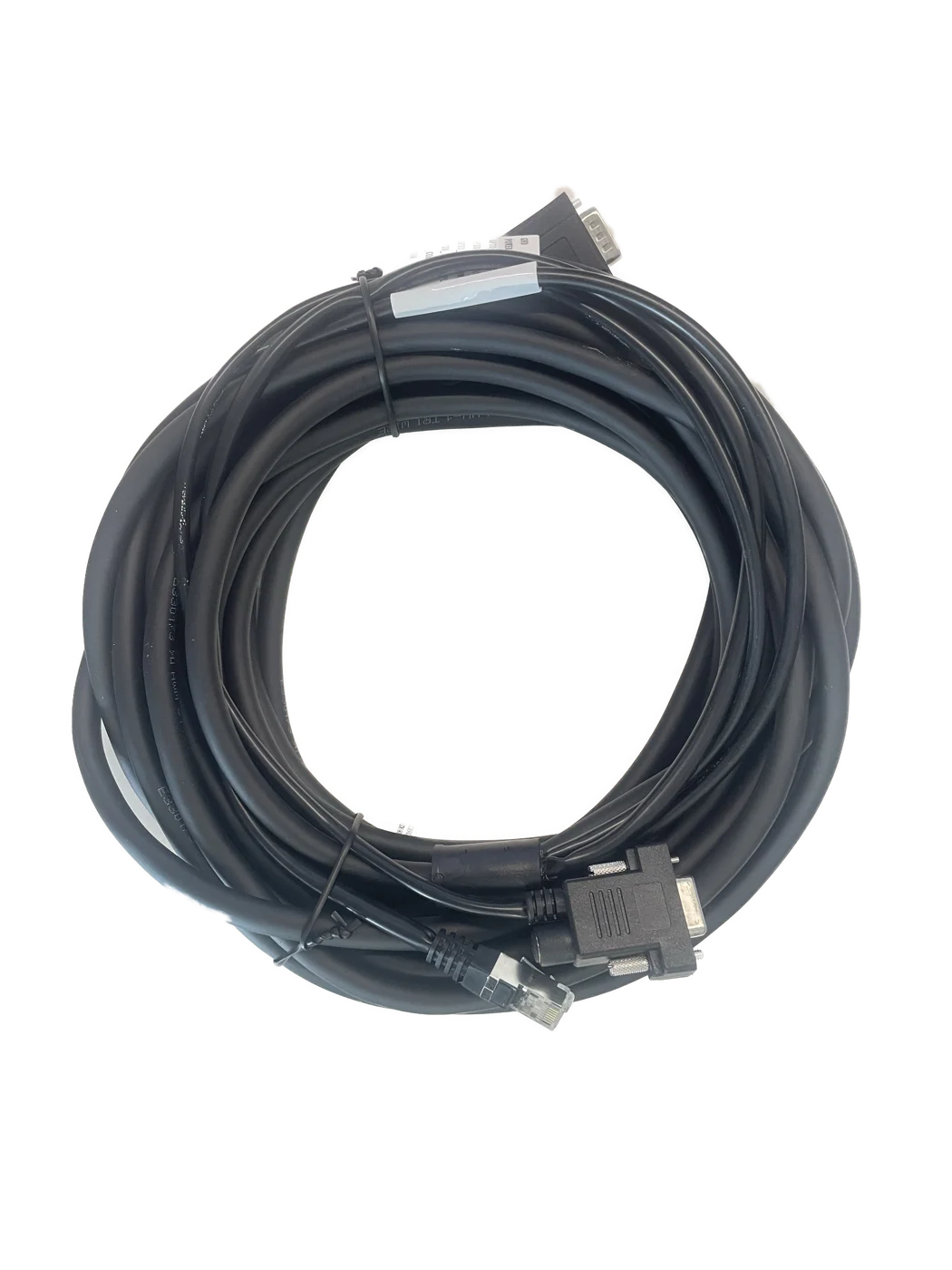

Hikrobot MV-IDAPE-DB15M-DB9FRJ45OPEN-HF-10m 2013EM V2.0 power/communication cable, Drag-chain applications
Model MV-IDAPE-DB15M-DB9FRJ45OPEN-HF-10mHikrobot
- Length10 m
- End ADB15M
- End BDB9F, RJ45, Open
- Diameter8.2 mm
- Max. voltage30 VDC
- JacketPVC
$49.00
Ships in 2-3 weeks
0.31 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-IDAPE-DB15M-DB9FRJ45OPEN-HF-10m 2013EM V2.0 power/communication cable, DB15 male to flying leads/DB9 female/RJ45 male, 10 m, Drag-chain applications. DB15M to RJ45 Ethernet combo cable (high-flex) for camera power, input/output signals and data transmission
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-IDAPE-DB15M-DB9FRJ45OPEN-HF-10m |
|---|---|
| Brand | Hikrobot |
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | DB15M |
|---|---|
| End B connector | DB9F, RJ45, Open |
| Cable diameter | 8.2 mm |
| Cable mechanical | Drag-chain cable, UL20276(26AWG*2P+AB)+26AWG*10C+AB |
| Cable color | Black |
| Connector durability | >500 cycles |
| Applicable scenario | Drag chain |
Environment and compliance
| Working temperature | -20°C~80°C |
|---|---|
| Certification | RoHS |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 10 m |
|---|---|
| Min. bending radius | 98 mm |
| Max. U-type bending cycles | 5 million times |
| Shipping weight (estimated) | 0.31 kg |
