Cables

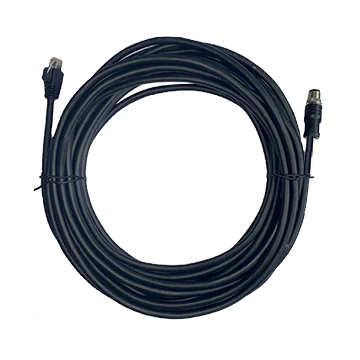

Hikrobot MV-IDA-E-M12A8pF-RJ45-ST-10m Ethernet cable, static, 10 m, 8-pin to RJ45
Model MV-IDA-E-M12A8pF-RJ45-ST-10mHikrobot
- Length10 m
- End AM12 8-pin A-code male
- End BRJ45
- Diameter6.6 mm
- Max. voltage30 VDC
- JacketPVC
$49.00
Ships in 2-3 weeks
0.31 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-IDA-E-M12A8pF-RJ45-ST-10m Ethernet cable, static, 10 m, 8-pin to RJ45. M12 standard Gigabit Ethernet cable for network data transmission; available in multiple lengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-IDA-E-M12A8pF-RJ45-ST-10m |
|---|---|
| Brand | Hikrobot |
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | M12 8-pin A-code male |
|---|---|
| End B connector | RJ45 |
| Cable diameter | 6.6 mm |
| Cable mechanical | 24#*4P |
| Cable color | Black |
| Connector durability | >500 mating cycles |
| Applicable scenario | Static scenes |
Environment and compliance
| Working temperature | -20°C~ 75°C |
|---|---|
| Certification | RoHS, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 10 m |
|---|---|
| Min. bending radius | 79.2 mm |
| Shipping weight (estimated) | 0.31 kg |
