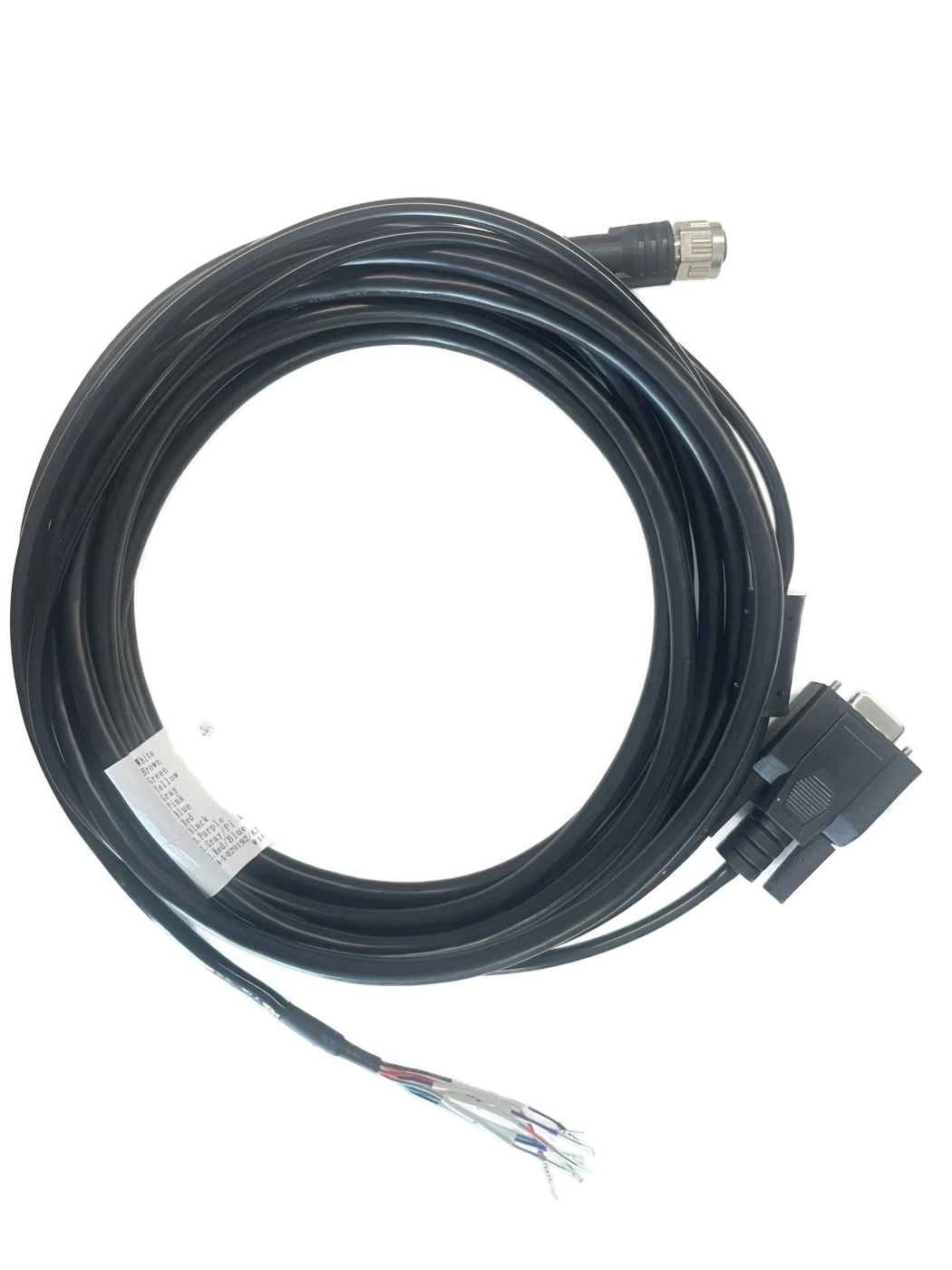

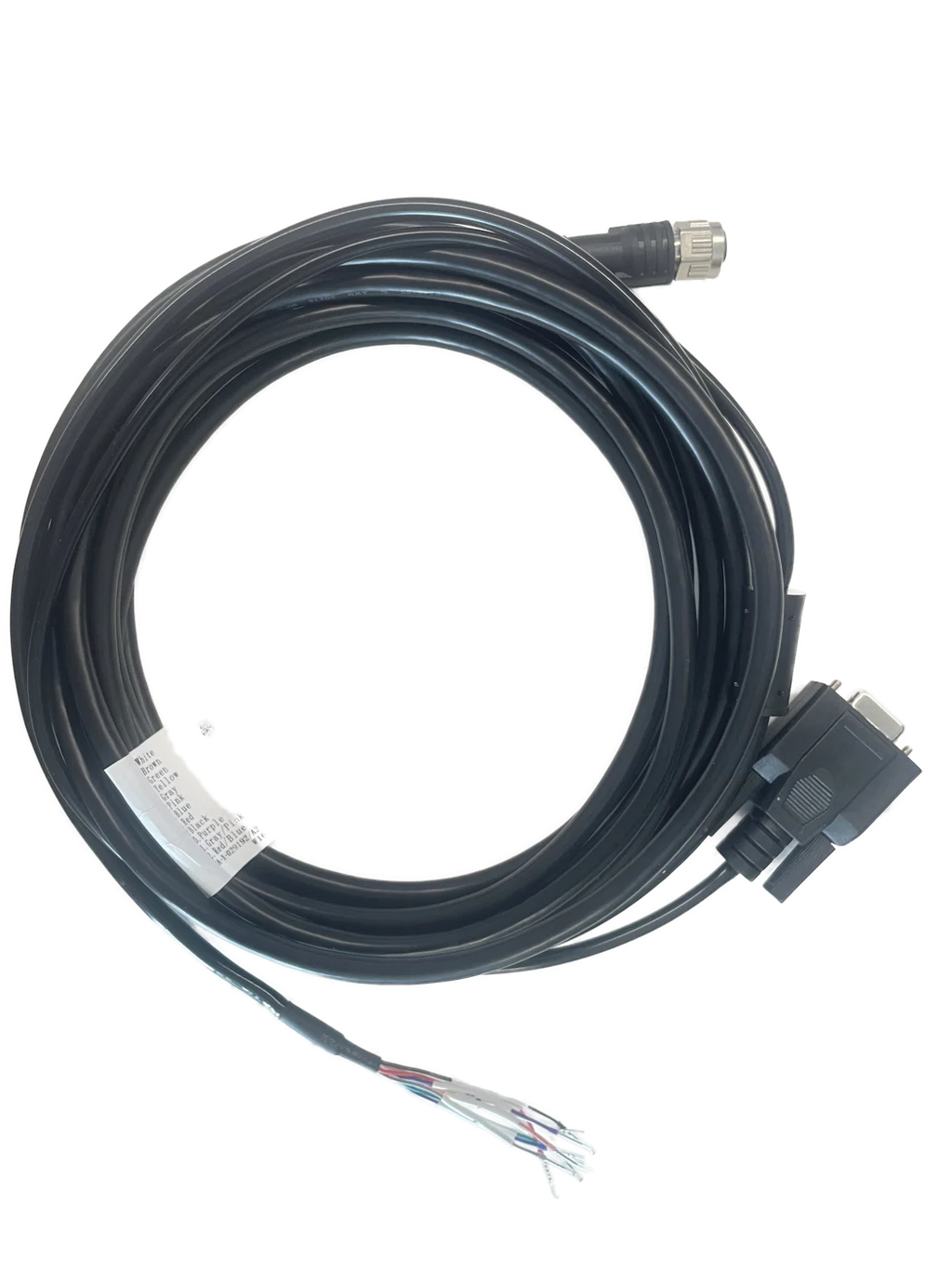

Hikrobot MV-IDAP-M12A12F-DB9Fopen-ST-7m Power cable, M12 A-coded 12-pin female to DB9 female + open leads, 7 m, Static applications
Model MV-IDAP-M12A12F-DB9Fopen-ST-7mHikrobot
- Length7 m
- End AM12A-code 12-pin female
- End BDB9F
- Diameter6.2 mm
- Max. voltage30 VDC
- JacketPVC
$39.00
Ships in 2-3 weeks
0.31 kg shipping weight
Not available in the United States. Available for delivery to other countries.

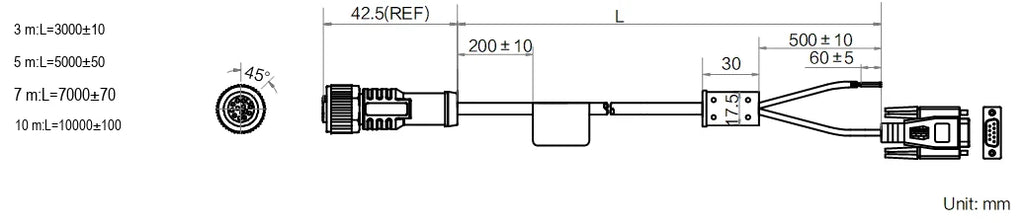

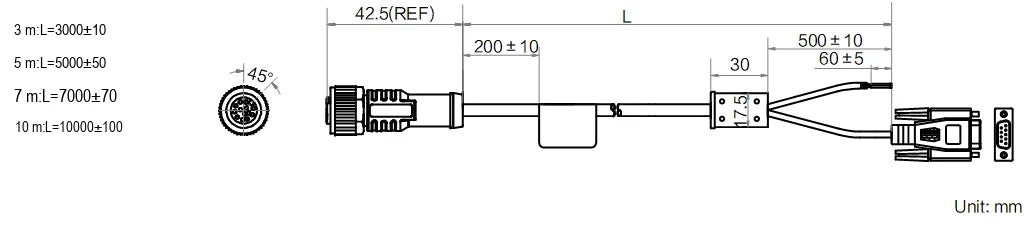

MV-IDAP-M12A12F-DB9Fopen-ST-7m: length 7 m, end A connector M12 A-code 12-pin female, end B connector DB9F, min. bending radius 75 mm.
Hikrobot MV-IDAP-M12A12F-DB9Fopen-ST-7m Power cable, M12 A-coded 12-pin female to DB9 female + open leads, 7 m, Static applications. 12-pin M12 to DB9 combo power cable for camera power and I/O input/output signals.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Certifications (as printed)RoHS
Specifications
General
| Model | MV-IDAP-M12A12F-DB9Fopen-ST-7m |
|---|---|
| Brand | Hikrobot |
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | M12A-code 12-pin female |
|---|---|
| End B connector | DB9F |
| Cable diameter | 6.2 mm |
| Cable mechanical | UL20276, 26AWG*12C+AB |
| Cable color | Black |
| Connector durability | >500 cycles |
Environment and compliance
| Working temperature | -20 to 75 °C |
|---|---|
| Certification | RoHS |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 7 m |
|---|---|
| Min. bending radius | 75 mm |
| Shipping weight (estimated) | 0.31 kg |
Engineering data
The MV-IDAP-M12A12F-DB9Fopen-ST-7m at a glance
The numbers that set this model apart, taken from its own printed specifications.
Length7 m
Outer diameter6.2 mm
Min. bending radius75 mm
Operating temperature-20 to 75 °C
CertificationRoHS
Max. voltage30 V DC
