Cables

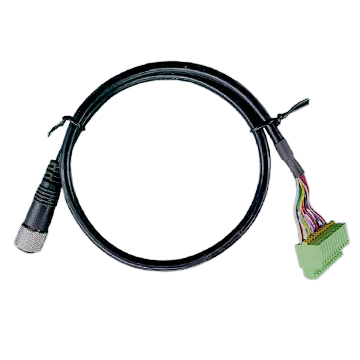

Hikrobot MV-IDA-P-M12A17pF-Open-ST-0.5m Standard 17-pin power cable, 17-pin circular connector to open-end cable, 0.5 m, Static applications
Model MV-IDA-P-M12A17pF-Open-ST-0.5mHikrobot
- Length0.5 m
- End A17-Pin M12
- End B12-pin terminal
- Diameter5.8 mm
- Max. voltage30 VDC
- JacketPVC
Ships in 2-3 weeks
0.31 kg shipping weight
Not available in the United States. Available for delivery to other countries.
lumaspecvision.com/products/lumaspec-mv-ida-p-m12a17pf-open-st-0-5m
The shortest of the 11 lengths in this cable series, MV-IDA-P-M12A17pF-Open-ST-0.5m has a 500 mm length, for short runs inside a machine.

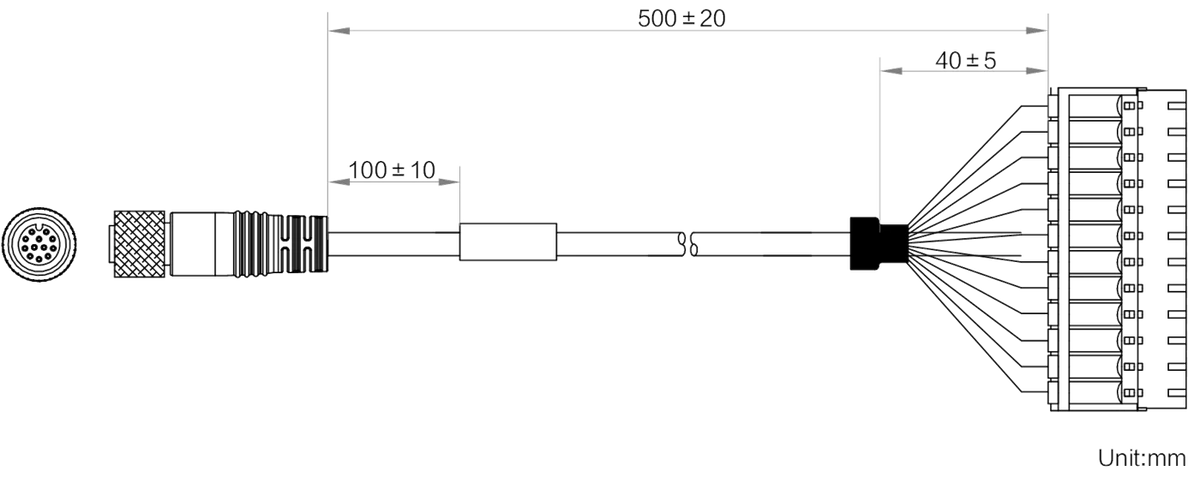

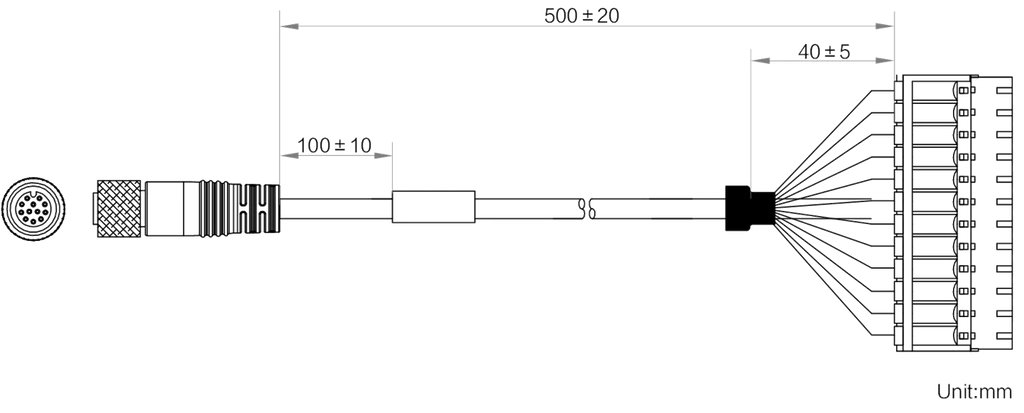

MV-IDA-P-M12A17pF-Open-ST-0.5m: length 0.5 m, end A connector 17-Pin M12, end B connector 12-pin terminal, min. bending radius 46.4 mm.
Hikrobot MV-IDA-P-M12A17pF-Open-ST-0.5m Standard 17-pin power cable, 17-pin circular connector to open-end cable, 0.5 m, Static applications. 17-pin M12 to open-end cable (standard) for camera power, I/O signals and data transmission.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Certifications (as printed)RoHS
Specifications
General
| Model | MV-IDA-P-M12A17pF-Open-ST-0.5m |
|---|---|
| Brand | Hikrobot |
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | 17-Pin M12 |
|---|---|
| End B connector | 12-pin terminal |
| Cable diameter | 5.8 mm |
| Cable mechanical | UL2517, 26AWG*12C |
| Cable color | Black |
| Connector durability | >500 cycles |
| Applicable scenario | Static scenes |
Environment and compliance
| Working temperature | -20 to 80 °C |
|---|---|
| Certification | RoHS |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 0.5 m |
|---|---|
| Min. bending radius | 46.4 mm |
| Shipping weight (estimated) | 0.31 kg (estimate for the category, not printed by the supplier; same for every length) |
Engineering data
The MV-IDA-P-M12A17pF-Open-ST-0.5m at a glance
Before you buy
Questions about the MV-IDA-P-M12A17pF-Open-ST-0.5m
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
What connectors and length does the MV-IDA-P-M12A17pF-Open-ST-0.5m have?
Printed: End A connector: 17-Pin M12; End B connector: 12-pin terminal; Length: 0.5 m.
Is the MV-IDA-P-M12A17pF-Open-ST-0.5m rated for moving cable carriers?
Printed: Min. bending radius: 46.4 mm; Applicable scenario: Static scenes.
What voltage and current is the MV-IDA-P-M12A17pF-Open-ST-0.5m rated for?
Printed: Max. voltage: 30 VDC.
What temperature range is the MV-IDA-P-M12A17pF-Open-ST-0.5m rated for?
Printed: Working temperature: -20 to 80 °C.
Learn
Guides for this part
Engineering guides picked for the MV-IDA-P-M12A17pF-Open-ST-0.5m: how to choose it, set it up and get a better image.
Other models in the Code Reader Cable series
See all 62 models- The smallest length in this series (0.5 to 30 m)
- The lowest min. bending radius in this series (46.4 to 98 mm)
How this model compares
- Compared with MV-IDA-PE-HDB15-USB-ST-2m: cable diameter 5.8 mm here, 4.5 mm there; minimum bending radius 46.4 mm here, 54 mm there.
- Length 0.5 m, the smallest of 11 lengths in the series (0.5 to 30 m); next size up 2 m (MV-IDAPE-DB15M-USB--ST-2m).
Swipe to see all columns
| Model | Length | End A | End B | Price | Availability | Link |
|---|---|---|---|---|---|---|
| MV-IDA-P-M12A17pF-Open-ST-0.5mThis model | 0.5 m | 17-Pin M12 | 12-pin terminal | $39.00 | Ships in 2-3 weeks | |
| MV-IDAPE-DB15M-USB--ST-2m | 2 m | DB15M | USB2.0 | $49.00 | Ships in 2-3 weeks | View |
| MV-IDA-PE-HDB15-USB-ST-2m | 2 m | DB15M | USB2.0 | $49.00 | Ships in 2-3 weeks | View |
| MV-IDA-PE-HDB15-USBRJ45DB9Open-ST-2.5m | 2.5 m | DB15M | RJ45, USB2.0, DB9F, 6-pin terminal | $49.00 | Ships in 2-3 weeks | View |
| MV-IDA-PE-HDB15-USBDB9Open-ST-2.5m | 2.5 m | DB15M | USB2.0, DB9F, 6-pin terminal | $49.00 | Ships in 2-3 weeks | View |
| MV-IDA-PE-M12A17pF-openRJ45FDB9-ST-3m | 3 m | 17-pin M12 | RJ45F, DB9F, 8-pin terminal | $49.00 | Ships in 2-3 weeks | View |
| MV-IDAPE-DB15M-DB9FRJ45OPEN-ST-3m | 3 m | DB15M | DB9F, RJ45, Open | $49.00 | Ships in 2-3 weeks | View |
| MV-IDA-PE-HDB15-RJ45FDB9Open-ST-3.5m | 3.5 m | DB15M | RJ45F, DB9F, 6-pin terminal | $49.00 | Ships in 2-3 weeks | View |
| MV-IDAPE-DB15M-DB9FRJ45OPEN-ST-5m | 5 m | DB15M | DB9F, RJ45, Open | $49.00 | Ships in 2-3 weeks | View |
