Home / Cameras / Area scan cameras / CS Series USB3.0 Area Scan Cameras

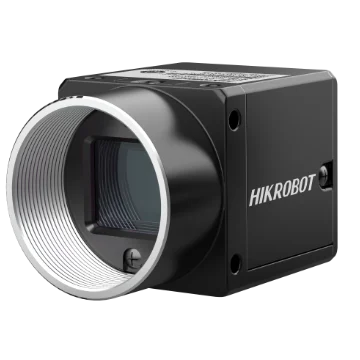

Hikrobot XXV-016C-XIU 1.6 MP USB3.0 area scan camera, Color

Area scan cameras

Hikrobot XXV-016C-XIU 1.6 MP USB3.0 area scan camera, Color

Model XXV-016C-XIU

Hikrobot XXV-016C-XIU 1.6 MP USB3.0 area scan camera, Color. New hardware platform with optimized logic resources for greatly reduced power consumption Feature-rich: Sequencer, contrast, white balance, Gamma and more

Price on request
0.21 kg shipping weight · Ships in 2-3 weeks

Build a system with this camera → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF, Chinese) - XXV-016C-XIU

Features

  • New hardware platform with optimized logic resources for greatly reduced power consumption
  • Feature-rich: Sequencer, contrast, white balance, Gamma and more
  • Supports hardware trigger, software trigger and free-run modes
  • ROI for higher frame rates; image mirroring
  • New-generation housing design with four-side mounting
  • Compliant with the USB3 Vision protocol and GenICam standard for seamless connection to third-party software platforms

Specifications

ModelXXV-016C-XIU
BrandHikrobot
Sensor typeCMOS, global shutter
Sensor modelSony IMX273
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.9”
Resolution1440 × 1080
Max. frame rate249.1 fps @1440 × 1080 Bayer RG 8
Dynamic range70.8 dB
SNR39.8 dB
Gain0 dB ~ 17 dB
Exposure timeUltra-short exposure mode: 1 μs to 14 μs; Normal exposure mode: 15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatMono 8 Bayer RG 8/10/10Packed/12/12Packed YUV422_YUYV_Packed, YUV422Packed RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Data interfaceUSB 3.0, compatible with USB 2.0
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports USB3.0 power supply
Power consumptionTyp. 1.7 W @ 5 VDC (USB3.0 provides power supply)
Lens mountC-Mount
Dimension29 mm × 29 mm × 30 mm
WeightApprox. 80 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
Client softwareMVS or third-party software meeting with USB3 Vision Protocol
Operating systemWindows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits
CompatibilityUSB3 Vision, GenlCam
CertificationCE, RoHS, KC
Shipping weight (estimated)0.21 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the CS Series USB3.0 Area Scan Cameras series

ModelSizePriceAvailability
MV-CS060-10UM-PRO6.3 MP, 1/1.8", USB3, Mono Price on request 2 in stockView
MV-CS060-10UC-PRO6.3 MP, 1/1.8", USB3, Mono Price on request 5 in stockView
MV-CS004-10UM0.4 MP, 1/2.9", USB3, Mono Price on request 4 in stockView
MV-CS004-10UM V50.4 MP, 1/2.9", USB3, Mono Price on request 4 in stockView
MV-CS004-10UC0.4 MP, 1/2.9", USB3, Color Price on request 4 in stockView
MV-CS004-10UC V50.4 MP, 1/2.9", USB3, Color Price on request 5 in stockView
MV-CS016-10UM1.6 MP, 1/2.9", USB3, Mono Price on request 4 in stockView
MV-CS016-10UM V51.6 MP, 1/2.9", USB3, Mono Price on request 2 in stockView
MV-CS016-10UC1.6 MP, 1/2.9", USB3, Color Price on request 3 in stockView
MV-CS016-10UC V51.6 MP, 1/2.9", USB3, Color Price on request 2 in stockView
MV-CS013-80UM1.3 MP, 1/2.7", USB3, Mono Price on request 3 in stockView
MV-CS013-80UC1.3 MP, 1/2.7", USB3, Mono Price on request 5 in stockView
XXV-016M-XIU1.6 MP, USB3, Mono Price on request 2 in stockView
MV-CS050-60UM5 MP, 2/3", USB3, Mono Price on request 4 in stockView
MV-CS050-60UM V55 MP, 2/3", USB3, Mono Price on request 5 in stockView
MV-CS050-60UC5 MP, 2/3", USB3, Color Price on request 5 in stockView
MV-CS050-60UC V55 MP, 2/3", USB3, Mono Price on request 5 in stockView
MV-CS020-60UM V52 MP, 1/2.53", USB3, Mono Price on request 5 in stockView
MV-CS020-60UC V52 MP, 1/2.53", USB3, Color Price on request 4 in stockView
MV-CS023-10UM2.3 MP, 1/1.2", USB3, Mono Price on request 2 in stockView
MV-CS023-10UC2.3 MP, 1/1.2", USB3, Color Price on request 3 in stockView
MV-CS020-10UM2 MP, 1/1.7", USB3, Mono Price on request 5 in stockView
MV-CS020-10UC2 MP, 1/1.7", USB3, Color Price on request 2 in stockView
MVAC-PY-FV373-D3XF1", USB3, Color Price on request 4 in stockView

See all 50 models in the CS Series USB3.0 Area Scan Cameras series
